Cisco

Cisco UCS-FI-64108-U | UCS 64108 108-Port 10/25G Fabric Interconnect, 4x40/100G

SKU:UCS-FI-64108-U

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

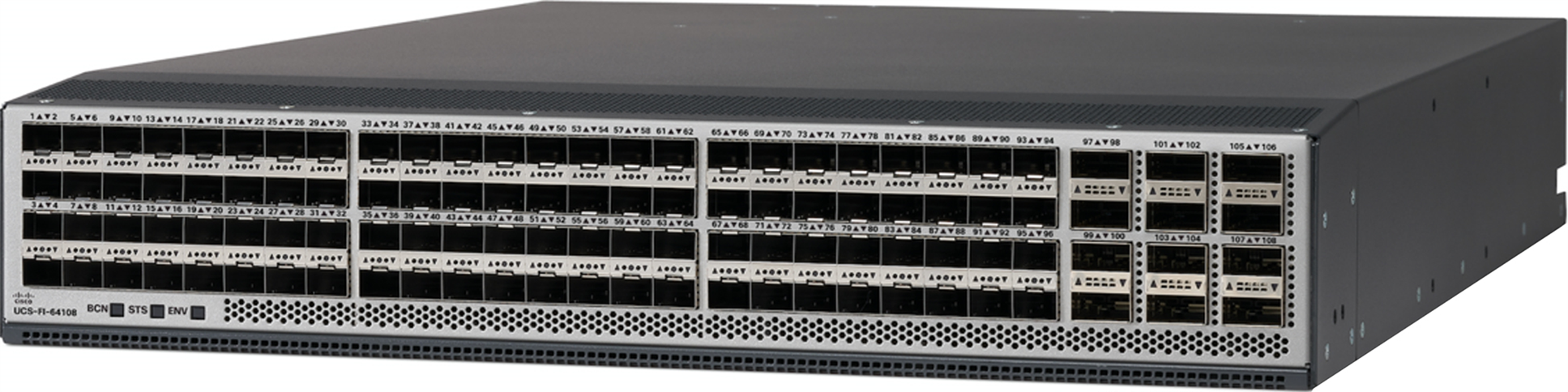

The UCS 64108 is a 2RU top-of-rack fabric interconnect from the Cisco UCS 6400 Series, built for Cisco UCS blade (5108 chassis) and rack server domains. It consolidates LAN and SAN traffic over Ethernet, FCoE and native Fibre Channel, and is managed through Cisco UCS Manager in a highly available clustered configuration.

The chassis provides 108 fixed ports: 16 unified ports (10/25G SFP28 Ethernet or 8/16/32G Fibre Channel), 72 ports of 10/25GbE SFP28, 8 ports of 1/10/25GbE SFP28 and 12 uplink ports of 40/100GbE QSFP28. Throughput is 7.42 Tbps with 2.8 Bpps of Layer 2 forwarding. This standalone model ships with 36 x 10/25G and 4 x 40/100G port licences, and additional ports are added through port-based licensing. It is supplied without power supplies.

It takes two identical hot-swappable PSUs for 1+1 redundancy, with a typical operating draw of 404 W and a maximum of 1200 W on AC. Cooling is front-to-back with N+1 fan modules. It supports 1G SFP, 10/25G SFP28 and 40/100G QSFP28 optics and cables, and works with the UCS 5108 chassis through 2408 IOM/FEX modules and with VIC adapters.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through, low-latency architecture with under 1 microsecond end-to-end latency
- Unified fabric with FCoE and native Fibre Channel on unified ports, consolidating LAN and SAN
- Managed through Cisco UCS Manager in a highly available active/passive cluster
- Lossless Ethernet with Priority Flow Control (802.1Qbb) and Enhanced Transmission Selection (802.1Qaz)
- Fabric extender architecture scales to 20 blade chassis
- Redundant hot-swappable power supplies (1+1) and fan modules (N+1)
- Pay-as-you-grow port-based licensing
- Jumbo frames up to 9216 bytes, 3K VLANs, RPVST+, LACP and IGMP snooping
- Breakout cables supported on uplink ports 97-108 when connecting to Nexus 9K switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Fixed ports: 108
- Unified ports: 16 (ports 1-16), 10/25G SFP28 Ethernet or 8/16/32G Fibre Channel
- 10/25GbE SFP28 ports: 72 (ports 17-88)
- 1/10/25GbE SFP28 ports: 8 (ports 89-96)
- 40/100GbE QSFP28 uplink ports: 12 (ports 97-108)
- Throughput: 7.42 Tbps
- Layer 2 forwarding: 2.8 billion packets per second
- MAC address table entries: 32,000
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2, RJ-45 and console
- USB ports: 1
- Port licences included: 36 x 10/25G and 4 x 40/100G
- Power supplies: up to 2 identical AC or DC, hot-swappable
- Typical operating power: 404 W
- Maximum power: 1200 W (AC), 930 W (DC)
- Fan modules: 2+1 (3 fans)
- Airflow: front to back
- Dimensions (H x W x D): 8.33 x 44.25 x 58.29 cm
- Weight: 16.27 kg with two power supplies and fans
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
- RoHS compliant: Yes

FAQs

Q: What licensing does this fabric interconnect use?
A: It uses port-based licensing. This SKU includes 36 x 10/25G and 4 x 40/100G port licences. Additional ports use UCS-L-6400-25G for 10/25G or Fibre Channel ports and UCS-L-6400-100G for 40/100G ports.

Q: What power supplies does it need?
A: It takes two identical hot-swappable PSUs for 1+1 redundancy, either UCS-PSU-64108-AC (100-240 VAC) or the -48 VDC option. Typical operating power is 404 W, with a maximum of 1200 W on AC or 930 W on DC.

Q: Which transceivers and modules does it work with?
A: It supports 1G SFP on ports 89-96, 10/25G SFP28 and 40/100G QSFP28 transceivers and cables, and 8/16/32G Fibre Channel SFP+ on the unified ports. It requires the UCS-FAN-64108 fan module and the UCS-ACC-64108 accessory kit.

Q: Which UCS software and chassis does it support?
A: It is managed with Cisco UCS Manager, minimum release 4.1(1a). It connects to UCS 5108 chassis through 2408 IOM/FEX modules and works with VIC adapters.

Q: Can the unified ports carry Fibre Channel?
A: Yes. Ports 1-16 can run as 10/25G SFP28 Ethernet or as 8/16/32G Fibre Channel, so LAN and SAN traffic can share one fabric.
