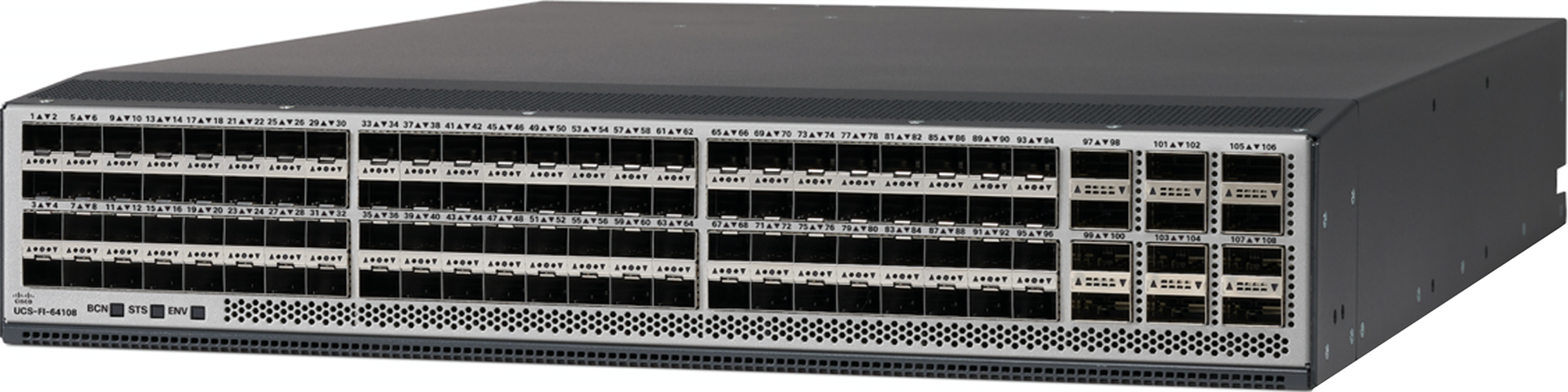

Cisco UCS-FI-64108-D | UCS 6400 108-Port 10/25G Fabric Interconnect, 2RU
SKU:UCS-FI-64108-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6400 Series 64108 is a 2RU top-of-rack fabric interconnect for Cisco UCS domains. It provides unified LAN and SAN connectivity for UCS B-Series blades, managed C-Series rack servers and S-Series storage servers, and hosts Cisco UCS Manager in an active/passive pair. A single domain scales to 160 servers.
The unit has 108 fixed ports: 96 x 10/25G SFP28 ports and 12 x 40/100G QSFP28 uplinks. Sixteen of the SFP28 ports are unified and can run 10/25G Ethernet or 8/16/32G Fibre Channel, and eight support 1/10/25G. Switching capacity is 7.42 Tbps with 2.8 billion packets per second of Layer 2 forwarding. This -D SKU carries port-based licensing for 36 x 10/25G and 4 x 40/100G ports, with further ports added through UCS-L-6400-25G, UCS-L-6400-25GC or UCS-L-6400-100G licences. It has no PoE.
It works with SFP, SFP+, SFP28 and QSFP28 optics and cables, and with UCS 2200 and 2408 fabric extenders. The 108-port model uses hot-swappable AC or DC power supplies, UCS-PSU-64108-AC or UCS-PSU-6332-DC, with UCS-FAN-64108 fan modules for 2+1 cooling redundancy.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate, low-latency, lossless 10/25/40/100 GbE, FCoE and Fibre Channel in a cut-through architecture
- Unified ports connect directly to native Fibre Channel SANs
- Hosts and runs Cisco UCS Manager in an active/passive HA pair over L1/L2 clustering ports
- Scales to 20 blade chassis through UCS 2408 fabric extenders
- Hot-swappable power supplies and fan modules for 1+1 power and N+1 fan redundancy
- Priority Flow Control, ETS (802.1Qaz) and DCBX for a lossless unified fabric
- Breakout cables supported on ports 97-108 for connecting to Nexus 9K switches
- Port-based licensing allows pay-as-you-grow capacity
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2RU
- Total fixed ports: 108
- SFP28 ports: 96 x 10/25G
- Unified ports: 16 (ports 1-16), 10/25G Ethernet or 8/16/32G Fibre Channel
- 1/10/25G SFP28 Ethernet ports: 8 (ports 89-96)
- QSFP28 uplink ports: 12 x 40/100G (ports 97-108)
- Switching capacity: 7.42 Tbps
- Layer 2 forwarding rate: 2.8 billion packets per second
- MAC address table entries: 32,000
- Jumbo frames: up to 9216 bytes on all ports
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2, RJ-45, console and 1 USB port
- Fan modules: 2+1 variable-speed fans
- Power supplies: up to 2 identical AC or DC
- Typical operating power: 404 W
- Maximum power: 1200 W (AC), 930 W (DC)
- Airflow: front (PSU/fan side) to back (port-side exhaust)
- Dimensions (H x W x D): 8.33 x 44.25 x 58.29 cm
- Weight with two PSUs and fans: 16.27 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- PoE: None
FAQs
Q: How is this -D SKU licensed?
A: It uses port-based licensing with 36 x 10/25G and 4 x 40/100G port licences. Additional ports need UCS-L-6400-25G, UCS-L-6400-25GC (C-direct only) or UCS-L-6400-100G licences.
Q: What power supplies does it use?
A: It takes two identical power supplies, either AC or DC, and they cannot be mixed. The AC option is UCS-PSU-64108-AC at 1200 W each, and the DC option is UCS-PSU-6332-DC at 930 W each, which needs CAB-48DC-40A-8AWG cords.
Q: Which optics and servers does it work with?
A: It supports 1G SFP, 10G SFP+, 25G SFP28 and 40/100G QSFP28 optics and cables. It connects UCS B-Series blades in UCS 5108 chassis, managed C-Series rack servers and S-Series storage servers.
Q: Which ports can run Fibre Channel?
A: Ports 1-16 are unified ports that can run 10/25G Ethernet or 8/16/32G Fibre Channel. This lets the interconnect attach directly to native Fibre Channel SANs.
Q: Does it support PoE?
A: No. It is a data centre fabric interconnect and has no PoE capability.
Q: How does it differ from other UCS 6400 models?
A: This is the 108-port, 2RU model with 36 x 10/25G and 4 x 40/100G port licences. The -D suffix is the part number variant, and its fan and PSU part numbers carry the same descriptions as the base parts.
