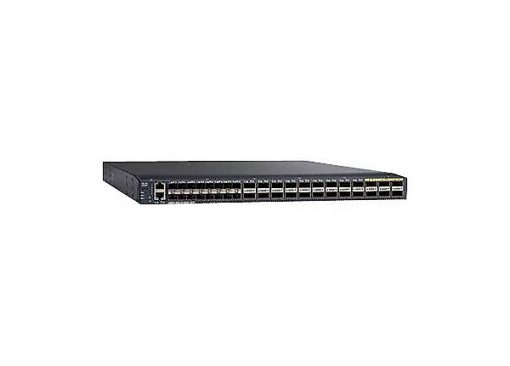

Cisco UCS-FI-6332 | UCS 6332 32-Port 40G QSFP+ Fabric Interconnect, 8-Port Licence
SKU:UCS-FI-6332
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6332 is a 1RU fixed-port fabric interconnect from the Cisco UCS 6300 Series. It provides unified LAN and FCoE connectivity and centralised management through Cisco UCS Manager, making it a core building block for UCS blade and rack server domains in data centres.
This SKU offers 32 fixed 40-Gbps QSFP+ Ethernet/FCoE ports with up to 2.56 Tbps of throughput. The 40G ports support 4x10G breakout cabling for 10G connectivity to legacy devices. Licensing is port-based, and this SKU includes an 8-port licence, with additional port licences purchased as capacity grows. It supports 2000 VLANs and 32,000 MAC address table entries. This is the no PSU version, so power supplies are ordered separately as UCS-PSU-6332-AC (100-240 VAC) or UCS-PSU-6332-DC (-48 VDC), and the UCS-FAN-6332 fan module is also a separate part.
The fixed ports accept 40-Gbps QSFP+ optics such as QSFP-40G-SR4 and QSFP-40G-SR4-S. The unit connects to UCS blade chassis through fabric extenders and is cooled front-to-back, which suits hot and cold aisle data centre layouts.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Managed by Cisco UCS Manager in a single, highly available management domain
- Unified fabric carries LAN and FCoE traffic over the same Ethernet links, reducing NICs, HBAs, switches and cables
- Fabric extender architecture scales to 20 blade chassis
- Low-latency, lossless fabric with Priority Flow Control (PFC)
- Systemwide bandwidth management for consistent QoS
- Cisco Data Center VM-FEX for virtualisation-aware networking
- Redundant hot-swappable fans and power supplies
- Port-based licensing allows pay-as-you-grow capacity
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1RU
- Ports: 32 fixed 40-Gbps QSFP+ Ethernet/FCoE ports
- Breakout: 40G ports support 4x10G breakout cabling
- Throughput: 2.56 Tbps
- Fan modules: 2+2, front-to-back cooling
- Licensing: 8-port licence included
- Power supply: not included, UCS-PSU-6332-AC or UCS-PSU-6332-DC ordered separately
- VLANs supported: 2000
- MAC address table entries: 32,000
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight (with two power supplies and four fan modules): 9.97 kg
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity: 5 to 95% non-condensing
- AC PSU typical operating power: 212 W
- AC PSU maximum power: 650 W
- AC PSU input voltage: 100 to 240 VAC, 50 to 60 Hz
- DC PSU input voltage: -40 to -72 VDC
- DC PSU maximum output power: 930 W
FAQs
Q: How is the UCS 6332 licensed?
A: It uses port-based licensing. This SKU includes an 8-port licence, and additional port licences are purchased as you add capacity. It is managed with Cisco UCS Manager.
Q: Does this unit include a power supply?
A: No. This is the no PSU version. Order UCS-PSU-6332-AC for 100-240 VAC or UCS-PSU-6332-DC for -48 VDC. The UCS-FAN-6332 fan module is also a separate part.
Q: What optics work in the fixed ports?
A: The 32 fixed ports accept 40-Gbps QSFP+ optics only, such as QSFP-40G-SR4 and QSFP-40G-SR4-S. For 10G connectivity, use 4x10G breakout cabling from a 40G port.
Q: What does the UCS 6332 connect to?
A: It works with Cisco UCS Manager and connects to UCS blade chassis through fabric extenders. The fabric extender architecture scales to 20 blade chassis.
Q: What are the power draw figures when fitted with AC supplies?
A: With AC power supplies, typical operating power is 212 W and maximum power is 650 W, with an input of 100 to 240 VAC at 50 to 60 Hz.
