Cisco UCS-EP-MDS9148S-16 | MDS 9148S 48-Port 16G FC SAN Switch, 12 Active Ports, SW SFPs
SKU:UCS-EP-MDS9148S-16
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

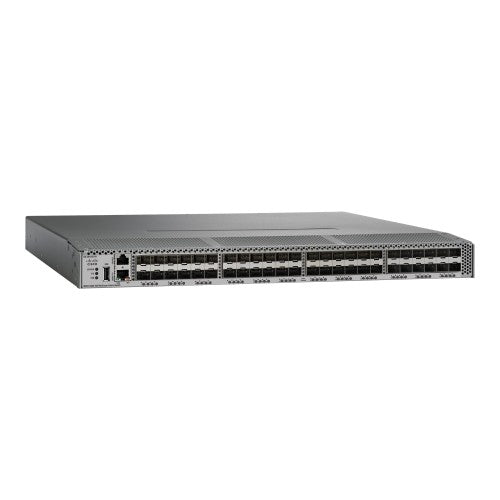

The Cisco MDS 9148S is a fixed-configuration 1RU 16G Fibre Channel SAN switch running Cisco NX-OS, part of the MDS 9100 series. It suits entry-to-midrange SAN edge or core switching, and 16G Fibre Channel fabrics that start small and scale up as storage demand grows, including Cisco UCS and FC storage connectivity.
This SKU provides 48 Fibre Channel ports in total, with 12 ports enabled and 16G SW SFP+ optics. Each port autosenses 2/4/8/16-Gbps with 16 Gbps of dedicated bandwidth, and up to 16 physical links can be grouped into a single PortChannel. The remaining ports can be enabled in blocks of 12 using the M9148S-PL12 On-Demand Activation licence, up to the full 48. The switch uses two hot-swappable 300W AC power supplies (100 to 240V AC, 50 to 60 Hz) and a hot-swappable fan tray with back-to-front airflow.
It requires Cisco MDS 9000 NX-OS 6.2(9) or later and is managed through the CLI or Cisco Prime DCNM. Supported optics include DS-SFP-FC16G-SW, DS-SFP-FC16G-LW and the DS-SFP-FC8G-SW, LW and ER series.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Common NX-OS and Prime DCNM software across the MDS family for consistent provisioning and management
- PowerOn Auto Provisioning to automate deployment and software upgrades
- Smart zoning to reduce hardware resource use and zone administration time
- Intelligent diagnostics with hardware-based slow port detection, FC ping and traceroute, SPAN/RSPAN and Fabric Analyzer
- Virtual output queuing for line-rate performance without head-of-line blocking
- High-performance ISLs with up to 16 physical links in one PortChannel and multipath load balancing
- In-Service Software Upgrades to reduce planned downtime
- Security with VSAN fabric isolation, hardware zoning, FC-SP authentication and RBAC with RADIUS, TACACS+ or LDAP
- FC-NVMe protocol support and FIPS 140-2 compliance
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 16G Fibre Channel, fixed configuration
- Ports enabled on this SKU: 12, expandable to 48 with 12-port On-Demand Activation licences
- Port speed: 2/4/8/16-Gbps autosensing, 16 Gbps dedicated bandwidth per port
- Optics: 16G SW SFP+
- Buffer credits: up to 256 for a group of 4 ports, default 64 per port, maximum 253 for a single port in the group
- PortChannel: up to 16 physical links
- Fibre Channel classes of service: Class 2, Class 3 and Class F
- Fibre Channel port types: E, F, FL, SD, ST and TE
- Management ports: out-of-band 10/100/1000 Ethernet, RS-232 serial console, USB
- Management applications: Cisco MDS 9000 CLI, Cisco Prime DCNM
- Form factor: 1RU, 19-inch rack-mountable
- Dimensions (H x W x D): 1.72 x 17.16 x 16.34 in. (4.37 x 43.59 x 41.50 cm)
- Weight (fully configured chassis): 19.84 lb (9 kg)
- Power supplies: 2 x 300W AC, hot-swappable
- AC input: 100 to 240V AC, 50 to 60 Hz
- Power cord connector: C15 socket to C16 plug on power supply
- Airflow: back to front (toward ports)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating relative humidity: 10 to 90% non-condensing
- Operating altitude: -60 to 2000 m (-197 to 6500 ft)
- Software requirement: Cisco MDS 9000 NX-OS 6.2(9) or later
- Compliance: UL 60950, CE Marking, FCC Part 15 Class A, ICES-003 Class A, AS/NZS 3548 Class A, VCCI Class A
FAQs
Q: How many ports are active on this SKU?
A: 12 of the 48 Fibre Channel ports are enabled. The M9148S-PL12 On-Demand Activation licence enables 12 additional ports at a time, up to 48.
Q: Does it need a licence or subscription to operate?
A: No additional licence is needed to use the 12 enabled ports. Optional licences include the MDS 9000 Enterprise Package (IVR, QoS, FC-SP, port security, fabric binding) and Cisco Prime DCNM for SAN Advanced Edition, both per switch.
Q: What power does the switch use?
A: It uses two hot-swappable 300W AC power supplies on 100 to 240V AC, 50 to 60 Hz, with a C15 socket to C16 plug power cord connection. Airflow is back to front.
Q: Which optics and software does it work with?
A: It runs Cisco MDS 9000 NX-OS 6.2(9) or later and is managed with the CLI or Cisco Prime DCNM. Supported optics include DS-SFP-FC16G-SW, DS-SFP-FC16G-LW, and DS-SFP-FC8G-SW, LW and ER.
Q: How does this SKU differ from other MDS 9148S bundles?
A: This UCS-EP bundle has 12 active ports with 16G SW SFP+ optics. Other bundles differ in how many ports are enabled out of the 48 available.
