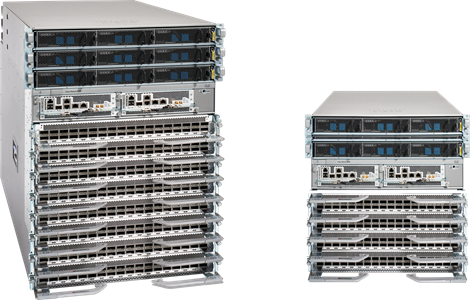

Cisco N9K-C9804 | Nexus 9800 4-Slot Modular Chassis Switch, 10 RU

SKU:N9K-C9804

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 9800 4-slot chassis is the compact 10 RU member of the Nexus 9800 modular data centre switch family. It is built for high-density 400G spine and super-spine layers, and for AI/ML and other compute-intensive fabrics. Line cards offer 800GE, 400GE or 100GE ports, so the platform is positioned for a future move to 800G.

The chassis provides 4 line-card slots, 2 supervisor slots, 8 fabric-module slots, 4 fan trays and 2 power-supply trays, with n+1 redundancy for fabric modules and power supplies and dual supervisors. It supports up to 1M IPv4 unicast routes and 500K IPv6 unicast routes. Seven fabric modules are needed for line rate in 400G mode, or four with the N9K-X98900CD-A in 100G mode. Power comes from hot-swappable AC, high-voltage or DC supplies, with up to 37,800 W combined from six 6.3 kW high-voltage supplies.

Supervisors, fabric modules, fan trays, line cards and power supplies are ordered separately. Supported line cards are the N9K-X9836DM-A and N9K-X98900CD-A, alongside the N9K-C9804-FM-A fabric module, N9K-C9804-FAN-A fan tray and N9K-C9800-SUP-A or SUP-B supervisors. Features depend on Cisco Data Center Networking licensing.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for transition from 400G to 800G and higher speeds with next-generation line cards and fabric modules
- Cisco ASICs with dynamic flowlet load balancing, fully shared on-die packet buffering and line-rate small-packet performance
- Ingress Virtual Output Queueing for faster job completion in AI/ML fabrics
- Hybrid HBM with fully shared buffer for a large effective buffer size
- n+1 redundancy for supervisors, fabric modules, fan trays and power supplies
- Single busbar power distribution that minimises power conversions for better efficiency
- Dual-input hot-swappable AC, DC and high-voltage AC/DC power supplies
- MACsec supported on selected line cards

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Line-card slots: 4
- Supervisor slots: 2
- Fabric-module slots: 8
- Fan trays: 4
- Power-supply trays: 2
- Power supplies: up to 9 AC or high-voltage (3 per tray), or 12 DC (4 per tray)
- Height: 10 RU
- Dimensions (H x W x D): 17.5 x 17.45 x 33 in. (44.45 x 44.32 x 83.82 cm)
- Weight: unloaded 124 lbs (56.36 kg), fully loaded 402 lbs (183 kg)
- Port speeds on line cards: 800GE, 400GE or 100GE
- Compatible line cards: N9K-X9836DM-A (36 x 400G QSFP-DD), N9K-X98900CD-A (14 x 400G QSFP-DD + 34 x 100G QSFP28)
- Compatible fabric module: N9K-C9804-FM-A (230 W max each)
- Compatible fan tray: N9K-C9804-FAN-A (330 W max each)
- Compatible supervisors: N9K-C9800-SUP-A, N9K-C9800-SUP-B (95 W max each)
- Minimum fabric modules for line rate: 7 in 400G mode, 4 for N9K-X98900CD-A in 100G mode
- IPv4 unicast routes: up to 1M
- IPv6 unicast routes: up to 500K
- IPv4 and IPv6 host routes: up to 96K each
- Supervisor ports: RJ-45 console, USB Type-A, 10/100/1000 management Ethernet, PTP, SyncE/BITS, TOD, 1PPS, 10MHz
- Maximum power with 6 x 6.3 kW HVAC supplies: 37,800 W combined, 31,500 W N+1

FAQs

Q: Does this chassis include a licence?
A: No. Features depend on Cisco Data Center Networking (DCN) Essentials, Advantage or Premier licensing. Add-on licences such as DCN Security are needed for features like MACsec.

Q: Which power supplies does it need?
A: It requires an N9800-HV-TRAY for AC or high-voltage supplies, or an N9800-DC-TRAY for DC. Supported supplies are the NXK-HV6.3KW20A-A and NXK-HV6.3KW30A-A (6300 W AC/HV) or the NXK-DC-4.4KW-A (DC).

Q: Which line cards work in the 4-slot chassis?
A: The N9K-X9836DM-A (36 x 400G QSFP-DD) and N9K-X98900CD-A (14 x 400G QSFP-DD plus 34 x 100G QSFP28) are supported. The N9K-X9836E-SP2R-O is not supported with the 4-slot fabric module.

Q: Which supervisors, fabric modules and fan trays does it use?
A: It uses the N9K-C9800-SUP-A or N9K-C9800-SUP-B supervisors, the N9K-C9804-FM-A fabric module and the N9K-C9804-FAN-A fan tray.

Q: How many fabric modules are needed for line-rate forwarding?
A: Seven fabric modules are needed for line rate in 400G mode. With the N9K-X98900CD-A in 100G mode, four fabric modules are enough.

Q: How does it differ from the larger Nexus 9800 chassis?
A: This 10 RU chassis has 4 line-card slots, 8 fabric-module slots and 4 fan trays, and uses the 4-slot specific fabric module and fan tray.
