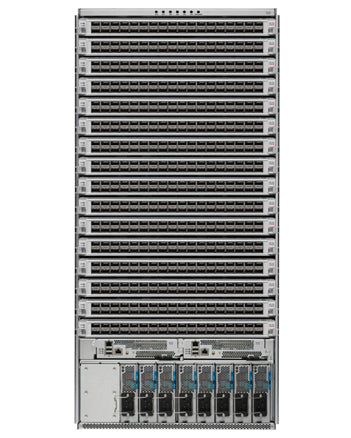

Cisco N9K-C9516 | Nexus 9500 16-Slot Modular Switch Chassis, 21 RU
SKU:N9K-C9516
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 9516 is the 16-slot modular chassis in the Cisco Nexus 9500 data centre switch family. It is a Layer 2/3 platform built for spine-leaf fabrics, core and aggregation roles, gateway deployments and end-of-row access-layer switching, and it runs in either NX-OS or ACI mode.
The 21 RU chassis provides 16 line card slots and accepts up to 6 fabric modules of the same type, up to 2 supervisors of the same type, up to 2 system controllers, up to 10 power supplies and up to 3 fan trays. Line cards cover 1/10/25/40/50/100/200/400GbE, so the chassis can be populated to match current port needs and grown towards 400GbE with cloud-scale line cards. The chassis hardware has no licence of its own, and software features in NX-OS or ACI mode are enabled by Cisco Nexus/DCN software licences.
It works with fabric modules N9K-C9516-FM-E2, N9K-C9516-FM-E and N9K-C9504-FM, fan tray N9K-C9516-FAN, supervisors N9K-SUP-A, SUP-A+, SUP-B and SUP-B+, and system controller N9K-SC-A. Supervisors, system controllers, power supplies and line cards are common across the N9504, N9508 and N9516 chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Common supervisors, system controller, power supplies and line cards across the N9504, N9508 and N9516 chassis
- Chassis-specific fabric modules and fan trays plug in vertically at the rear
- Hot-swappable fan trays with front-to-back airflow for the entire chassis
- Hot-swappable, front-panel-accessible AC, DC and universal high-voltage AC/DC power supplies
- Power redundancy modes: combined, n+1, n+n and input-source redundancy
- Operates in Cisco ACI mode or Cisco NX-OS mode
- NX-OS mode supports VXLAN with BGP-EVPN, Segment Routing, MPLS and NX-API automation
- Redundant active/standby supervisors with state synchronisation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Line card slots: 16
- Rack units: 21 RU
- Dimensions (H x W x D): 36.70 x 17.50 x 31.76 in. (93.41 x 44.50 x 80.67 cm)
- Weight: 192 lb (87.3 kg)
- Mean time between failure (MTBF): 680,000 hours
- Fabric modules: up to 6 of the same type
- Supervisor modules: up to 2 of the same type
- System controllers: up to 2
- Power supplies: up to 10
- Fan trays: up to 3 (N9K-C9516-FAN)
- Line card speeds supported: 1/10/25/40/50/100/200/400GbE
- Operating mode: NX-OS or ACI
- Operating temperature: 0 to 40 C (32 to 104 F)
- Nonoperating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5 to 95% (noncondensing)
- Altitude: 0 to 4,000 m (0 to 13,123 ft)
- Safety: UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943
- EMC emissions: 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A
- RoHS: RoHS-6 compliant with exceptions for leaded BGA balls and lead press-fit connectors
FAQs
Q: Does the N9K-C9516 need a licence?
A: The chassis hardware has no licence of its own. Software features in NX-OS or ACI mode are enabled by Cisco Nexus/DCN software licences.
Q: What power supplies does the chassis use?
A: It accepts up to 10 hot-swappable power supplies: 3000W AC (200-240V), 3000W DC (-48 to -60V, 2 inputs), 3000W HV AC/DC (AC 200-277V / DC 240-380V) and 3150W HV AC/DC (2 inputs). The power budget depends on the line card and fabric module mix.
Q: Which fabric modules, supervisors and fan tray are compatible?
A: Fabric modules N9K-C9516-FM-E2, N9K-C9516-FM-E and N9K-C9504-FM, fan tray N9K-C9516-FAN, supervisors N9K-SUP-A, SUP-A+, SUP-B and SUP-B+, and system controller N9K-SC-A. Fabric modules and supervisors must be of the same type within the chassis.
Q: Can it run in both ACI and NX-OS mode?
A: Yes. The Nexus 9500 platform operates in either Cisco ACI mode or Cisco NX-OS mode, depending on the software and line cards deployed.
Q: Can I mix line cards in the chassis?
A: Yes. Line cards are classic or cloud-scale N9500 modules, and the chassis supports speeds from 1GbE up to 400GbE, so you can populate the 16 slots to match your port requirements.
