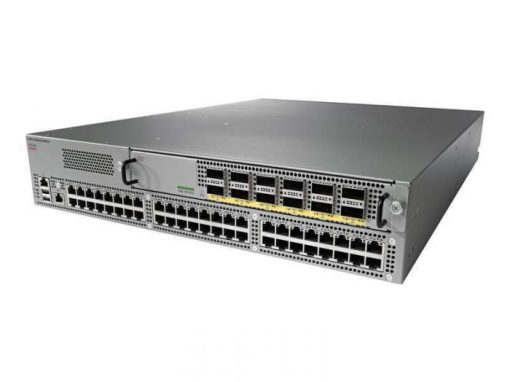

Cisco N9K-C9396TX | Nexus 9300 48-Port 10G-T Switch, 8x 40G QSFP
SKU:N9K-C9396TX
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 9300 N9K-C9396TX is a 2RU fixed data centre leaf switch built for dense 10GBASE-T server access. It runs Cisco NX-OS and suits top-of-rack deployments connecting rack and blade servers, including Cisco UCS, with 40G uplinks to aggregation or spine switches in a spine-leaf fabric.
The switch provides 48 fixed 100M/1/10GBASE-T ports plus a user-replaceable uplink module slot for 40G QSFP+ uplinks, with the 8p 40G QSFP configuration identifying this SKU. Bandwidth reaches up to 1.92 Tbps at over 1500 mpps, with latency of 1 to 2 microseconds and up to 50 MB of shared buffer. Typical power draw is 427W and maximum is 712W on AC. Layer 3 routing features are enabled through additional NX-OS licensing, while the default system software provides a comprehensive Layer 2 feature set.
It works with the N9K-M6PQ, N9K-M6PQ-E and N9K-M12PQ 40G uplink modules or the N9K-M4PC-CFP2 100G module, and supports up to 16 Cisco Nexus 2000 Series Fabric Extenders. Power supplies and fan trays are fitted as hot-swappable modules.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low latency of 1 to 2 microseconds for predictable high performance
- Up to 50 MB integrated shared buffer to manage speed mismatch between access and uplink ports
- Hot-swappable 1+1 redundant power supplies and N+1 fan trays
- Port-side intake and port-side exhaust airflow configurations
- 80 Plus Platinum rated power supplies
- 40G QSFP+ uplinks, with QSA adapter support to convert a 40G port to a single 10G port
- Supports up to 16 Cisco Nexus 2000 Series Fabric Extenders
- Runs Cisco NX-OS on a 64-bit Linux kernel with VXLAN, Nexus Data Broker and Intelligent Traffic Director support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 fixed 100M/1/10GBASE-T
- Uplinks: 8p 40G QSFP via uplink module (6 or 12 active 40G QSFP+ ports on N9K-M6PQ / N9K-M12PQ)
- 100G uplink option: N9K-M4PC-CFP2 module (4 active ports)
- Bandwidth: up to 1.92 Tbps, over 1500 mpps
- Latency: 1 to 2 microseconds
- Shared buffer: up to 50 MB
- Form factor: 2RU
- CPU / memory / SSD: Dual-core 2.5-GHz x86 CPU, 16 GB memory, 64 GB SSD
- Power supplies: up to 2 hot-swappable, 650W AC, 930W DC or 1200W HVAC/HVDC
- Typical power (AC): 427 W
- Maximum power (AC): 712 W
- Fans: 3 fan trays
- Dimensions (H x W x D): 8.9 x 44.5 x 57.1 cm
- Weight (without PSUs, fans or uplink module): 10.2 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% noncondensing
- Max LPM routes: 128,000
- Max IP host entries: 208,000
- Max MAC entries: 96,000
- Max VLANs: 4096
- Max VRFs: 1000
- Max ECMP paths: 64
- Max Nexus 2000 Fabric Extenders: 16
- RoHS compliance: Yes
FAQs
Q: Does the N9K-C9396TX need a licence for Layer 3 routing?
A: Default NX-OS provides a comprehensive Layer 2 security and management feature set. Layer 3 IP unicast and multicast routing and Cisco Nexus Data Broker require additional licences, such as N93-LAN1K9 for enhanced Layer 3 or the NX-OS Essentials or Advantage licences.
Q: Which uplink modules does it work with?
A: It uses the N9K-M6PQ or N9K-M6PQ-E (6x 40G QSFP+), the N9K-M12PQ (12x 40G QSFP+) or the N9K-M4PC-CFP2 (4x 100G). An uplink module is required for normal operation.
Q: What power supplies and fan trays does it use?
A: It accepts up to 2 hot-swappable PSUs: 650W AC (N9K-PAC-650W), 1200W AC (N9K-PAC-1200W), 1200W universal HVAC/HVDC (N9K-PUV-1200W) or 930W DC. Fan trays are N9K-C9300-FAN2 for intake or N9K-C9300-FAN2-B for exhaust airflow.
Q: Can it connect 10G devices on its 40G ports?
A: Yes. A QSA adapter converts a 40G QSFP+ port into a single 10G SFP+ port, and 40G QSFP+ optics can run over existing 10G cabling infrastructure.
Q: How does this SKU differ from other Nexus 9300 switches?
A: The N9K-C9396TX combines 48 fixed 100M/1/10GBASE-T ports with an uplink module slot for 8p 40G QSFP, aimed at 10GBASE-T server access rather than SFP+ fibre access.
