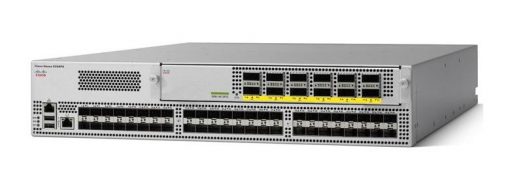

• Cisco N9K-C9396PX-FA-L3 silver switch with black ports and yellow labels
1 1

Cisco

Cisco N9K-C9396PX-FA-L3 | Nexus 9300 48-Port 10G SFP+ Switch, 12x 40G QSFP+, Layer 3

N9K-C9396PX-FA-L3

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 9396PX is a high-performance data center switch designed for top-of-rack and middle-of-row deployment in enterprise and cloud environments. With 48 fixed 10GbE SFP+ ports and 12 fixed 40GbE QSFP+ ports, this 2RU switch delivers 1.92 Tbps switching capacity and ultra-low latency for demanding workloads. Enhanced Layer 3 capabilities provide advanced routing protocols including OSPF, BGP, and EIGRP, making it ideal for spine-leaf architectures, virtualized data centers, and high-frequency trading applications.

Features

Non-blocking architecture with line-rate performance on all ports
- Ultra-low latency design (sub-1 microsecond typical)
- Enhanced Layer 3 routing: OSPF, BGP, EIGRP, static routing, policy-based routing
- Layer 2 features: VLANs, STP/RSTP/MSTP, IEEE 802.1Q, IEEE 802.1ad (Q-in-Q)
- VXLAN support for network overlay and multi-tenancy
- Virtual Port Channel (vPC) for dual-homing and active-active uplinks
- Advanced QoS with 802.1p CoS and DSCP marking
- Multicast routing support (PIM, IGMP)
- Comprehensive security: 802.1X, MACsec-ready hardware, ACLs, RBAC
- Hot-swappable redundant power supplies and fan modules
- In-service software upgrades (ISSU) for zero-downtime maintenance
- Python scripting and automation support
- Telemetry streaming for real-time network analytics
- Fibre Channel over Ethernet (FCoE) capable
- IEEE 802.3x flow control and priority-based flow control (PFC)
- Cisco TrustSec integration for security policy enforcement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 1/10GBASE-X SFP+ ports
- 12x 40GBASE-X QSFP+ uplink ports (via user-replaceable M12PQ or M6PQ uplink module)
- Switching capacity: 1.92 Tbps
- Forwarding rate: 1,500 Mpps
- Layer 2 and Layer 3 switching support
- MAC address table: 96,000 entries
- IPv4 host table: 88,000 entries
- IPv4 LPM routes: 16,000
- VLANs supported: 4,096
- Enhanced Layer 3 license included (supports OSPF, BGP, EIGRP, policy-based routing)
- Dual x86 2.5GHz CPUs, 16GB RAM, 64GB SSD
- Redundant hot-swappable power supplies (AC 120/230V)
- Front-to-back (port-side exhaust) airflow
- 2RU rack-mountable form factor
- Dimensions (WxDxH): 17.5 x 22.5 x 3.5 inches
- Management: CLI, SNMP v1/v2/v3, SSH-2, Telnet, RMON
- Cisco NX-OS operating system

FAQs

Q: What is the difference between the N9K-C9396PX-FA-L3 and base N9K-C9396PX?
A: The FA-L3 SKU includes front-to-back (port-side exhaust) airflow and the Enhanced Layer 3 license pre-installed, which enables advanced routing protocols like OSPF, BGP, EIGRP, and policy-based routing. The base model requires separate licensing for these features.

Q: How many 40G uplink ports can this switch support?
A: The switch supports 12 active 40G QSFP+ uplink ports when equipped with the M12PQ uplink module, or 6 active ports with the M6PQ/M6PQ-E module. The uplink module is user-serviceable and sold separately.

Q: Is this switch suitable for Cisco ACI deployments?
A: Yes, the Nexus 9396PX can operate in both standalone NX-OS mode and Cisco ACI mode as a leaf switch. In ACI mode, it integrates with the Application Policy Infrastructure Controller (APIC) for automated policy-based network management.

Q: Does this switch support stacking or virtual port channels?
A: The Nexus 9300 series supports Virtual Port Channel (vPC) for dual-homing redundancy and enhanced bandwidth. Traditional stacking is not supported; spine-leaf architecture is the recommended topology for scale.

Q: What optics are compatible with the SFP+ and QSFP+ ports?
A: The switch supports Cisco 10GBASE SFP+ modules (SR, LR, LRM, copper DAC) and 40GBASE QSFP+ modules (SR4, LR4, BiDi). Third-party optics may work but are not officially supported by Cisco TAC.
