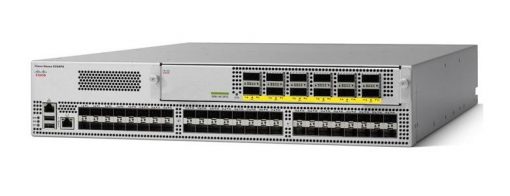

Cisco N9K-C9396PX | Nexus 9300 48-Port 10G SFP+ Switch, 12x 40G QSFP+
SKU:N9K-C9396PX
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 9300 N9K-C9396PX is a 2RU fixed-port Layer 2/3 data centre switch built for top-of-rack and middle-of-row deployment. It suits data centres running enterprise applications, service provider hosting and cloud computing, and it runs Cisco NX-OS.
It provides 48 fixed 1/10G SFP+ ports plus an uplink module slot. This SKU is described with the N9K-M12PQ uplink module, which gives 12 x 40G QSFP+ ports. Bandwidth reaches up to 1.92 Tbps with over 1500 mpps forwarding and 1 to 2 microsecond latency. An integrated shared buffer of up to 50 MB absorbs speed mismatches between access and uplink ports. It takes up to two hot-swappable power supplies, with a typical draw of 232W and a maximum of 455W on AC. The default NX-OS image includes a Layer 2 security and management feature set, while Layer 3 IP unicast and multicast routing and Nexus Data Broker need additional licences.
An uplink module must be fitted for normal operation: N9K-M6PQ or N9K-M6PQ-E for 6 x 40G, N9K-M12PQ for 12 x 40G, or N9K-M4PC-CFP2 for 4 x 100G. It also manages up to 16 Nexus 2000 Series Fabric Extenders.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 2 and Layer 3 nonblocking switching running Cisco NX-OS
- Line-rate VXLAN bridging and routing
- Hot-swappable 1+1 redundant 80 Plus Platinum power supplies and N+1 redundant fan trays
- Port-side intake and port-side exhaust airflow options
- Power-On Auto Provisioning (POAP) and Intelligent API (iAPI) for automation
- Supports Cisco Nexus Data Broker and Intelligent Traffic Director
- Manages Cisco Nexus 2000 Series Fabric Extenders
- 40G QSFP+ optics can reuse existing 10G fibre cabling, and a QSA adapter converts a 40G port to a single 10G port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Cisco N9396PX (N9K-C9396PX)
- Fixed ports: 48 x 1/10G SFP+
- Uplink ports: 12 x 40G QSFP+ with N9K-M12PQ uplink module
- Alternative uplink modules: N9K-M6PQ or N9K-M6PQ-E (6 x 40G), N9K-M4PC-CFP2 (4 x 100G)
- Bandwidth: up to 1.92 Tbps
- Forwarding rate: over 1500 mpps
- Latency: 1 to 2 microseconds
- Form factor: 2RU
- CPU, memory and storage: dual-core 2.5 GHz x86 CPU, 16 GB memory, 64 GB SSD
- Integrated shared buffer: up to 50 MB across the N9300 platform
- Power supplies (up to 2): 650W AC, 930W DC or 1200W HVAC/HVDC
- Typical power (AC): 232W
- Maximum power (AC): 455W
- Input voltage (AC): 100 to 240V, 50 to 60 Hz
- Fans: 3
- Dimensions (H x W x D): 8.9 x 44.5 x 57.1 cm
- Weight (without power supplies, fans or uplink module): 10.2 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- Maximum LPM routes: 128,000
- Maximum IP host entries: 208,000
- Maximum MAC address entries: 96,000
- Maximum VLANs: 4096
- Maximum VRF instances: 1000
- Maximum ECMP paths: 64
- Maximum Nexus 2000 Fabric Extenders: 16
FAQs
Q: Does this switch need a licence for Layer 3 routing?
A: The default NX-OS system software includes a Layer 2 security and management feature set. Layer 3 IP unicast and multicast routing and Cisco Nexus Data Broker need additional licences, as set out in the Cisco NX-OS Licensing Guide.
Q: Which uplink modules does it use?
A: An uplink module must be fitted for normal operation. Options are N9K-M6PQ or N9K-M6PQ-E for 6 x 40G QSFP+, N9K-M12PQ for 12 x 40G QSFP+, or N9K-M4PC-CFP2 for 4 x 100G. This SKU is described with the 12-port N9K-M12PQ.
Q: What power supplies does it support?
A: It takes up to two hot-swappable power supplies: 650W AC (N9K-PAC-650W for port-side intake, or the -B variant for port-side exhaust), 930W DC, or 1200W HVAC/HVDC (N9K-PUV-1200W). Typical draw is 232W and maximum is 455W on AC.
Q: Can the 40G uplink ports be broken out into 4 x 10G?
A: No, the 40G uplink ports do not support 4x10G breakout. A QSA adapter can convert a 40G port to a single 10G port.
Q: Can it manage Nexus 2000 Fabric Extenders?
A: Yes. It supports up to 16 Cisco Nexus 2000 Series Fabric Extenders per switch.
