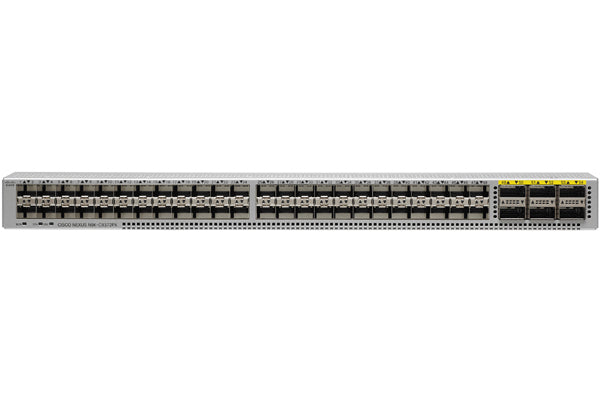

• Cisco N9K-C9372PX-E 48x10G SFP+ switch with yellow LED ports
1 1

Cisco

Cisco N9K-C9372PX-E | Nexus 9300 48-Port 10G SFP+ Switch, 6x 40G QSFP+, Layer 3

N9K-C9372PX-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-C9372PX-E Nexus 9372PX-E is a high-performance 1RU data centre switch designed for top-of-rack, middle-of-row, and end-of-row deployments in enterprise data centres and cloud environments. With 48 fixed 1/10G SFP+ ports and 6 fixed 40G QSFP+ uplinks, this switch delivers 1.44 Tbps throughput and supports advanced Layer 2 and Layer 3 features, VXLAN, ACI integration, and IP-based endpoint group classification. Powered by dual-core 2.5-GHz x86 CPUs, 16 GB memory, and a 64-GB SSD, it provides robust performance and scalability for modern virtualised workloads.

Features

Layer 2 switching with VLAN support (up to 4,096 VLANs)
- Layer 3 routing with up to 128,000 LPM routes
- VXLAN tunnel endpoints (VTEP) support for overlay networks
- Virtual PortChannel (vPC) technology for multi-chassis link aggregation
- Virtual Routing and Forwarding (VRF) with up to 1,000 VRF instances
- Hot Standby Router Protocol (HSRP) for gateway redundancy
- Equal-Cost Multipathing (ECMP) with 64-way load balancing
- Multiple Spanning Tree Protocol (MSTP) and Per-VLAN Rapid Spanning Tree Plus (PVRST+)
- Access Control Lists (ACLs): 4,000 ingress, 1,000 egress entries
- Quality of Service (QoS) with advanced traffic classification and queuing
- IGMP snooping with up to 32,000 entries
- IPv4 multicast routing (up to 32,000 routes)
- Enhanced IP-based endpoint group (EPG) classification for Cisco ACI
- Cisco NX-OS operating system with CLI, SNMP, and API management
- Dual redundant hot-swappable power supplies (optional)
- Four cooling fans for optimal thermal management
- Front-to-back or back-to-front airflow options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48 x 1/10G SFP+ ports (fixed)
- 6 x 40G QSFP+ ports (fixed)
- Switching capacity: 1.44 Tbps
- Forwarding rate: 1150 Mpps
- MAC address table: 96,000 entries
- VLAN support: up to 4,096 VLANs
- LPM routes: up to 128,000 (IPv4/IPv6)
- Host table entries: 208,000 (IPv4)
- Dual-core 2.5-GHz x86 CPUs
- Memory: 16 GB RAM
- Storage: 64 GB SSD
- Packet buffer: 25 MB shared
- Management: 1 x 1G RJ45, 1 x RS-232 console, 2 x USB
- Form factor: 1RU
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm (1.72 x 17.3 x 22.5 in)
- Weight (without PSU/fans): 10.1 kg (22.2 lb)
- Typical power: 210W (AC/DC)
- Maximum power: 537W (AC/DC)
- Power supply options: 650W AC, 930W DC, 1200W HVAC/HVDC (up to 2 redundant)
- Operating temperature: 0 to 40°C
- Airflow: Front-to-back or back-to-front (model dependent)

FAQs

Q: What is the difference between the N9K-C9372PX-E and the N9K-C9372PX?
A: The N9K-C9372PX-E is a minor hardware revision of the Nexus 9372PX with enhanced capabilities for IP-based endpoint group (EPG) classification in Cisco ACI mode, making it better suited for Application Centric Infrastructure deployments.

Q: Does this switch support both NX-OS standalone and Cisco ACI modes?
A: Yes, the N9K-C9372PX-E can run in both NX-OS standalone mode with full Layer 2/Layer 3 feature sets and in Cisco ACI fabric mode as a leaf switch with enhanced EPG classification support.

Q: What transceiver types are supported in the SFP+ and QSFP+ ports?
A: The 48 SFP+ ports support 1G and 10G SFP/SFP+ transceivers. The 6 QSFP+ ports support 40G QSFP+ transceivers and can also be used with breakout cables for 4x10G connectivity using advanced optics.

Q: Is this switch suitable for VXLAN overlay networks?
A: Yes, the N9K-C9372PX-E supports VXLAN tunnel endpoints (VTEP) and is designed for modern data centre architectures including VXLAN-based overlay networks and spine-leaf topologies.

Q: What redundancy and high-availability features are available?
A: The switch supports dual redundant power supplies, Virtual PortChannel (vPC) technology for device-level redundancy, Virtual Routing and Forwarding (VRF) for network segmentation, and Hot Standby Router Protocol (HSRP) for gateway redundancy.
