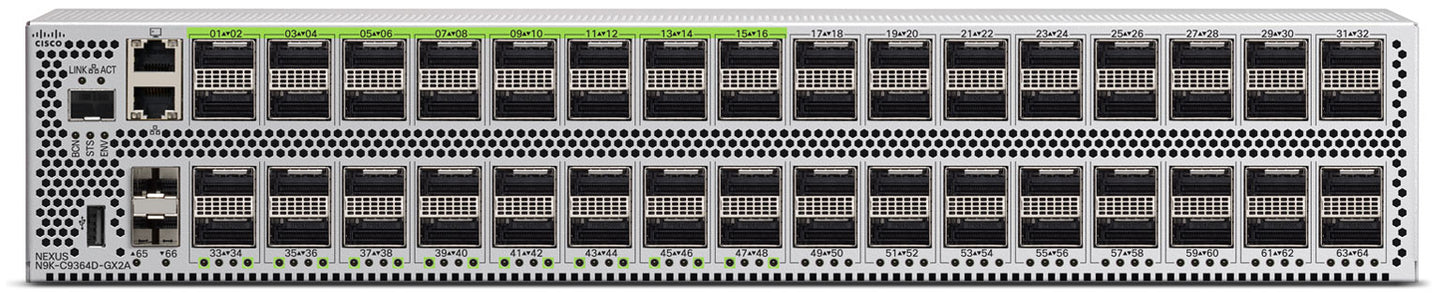

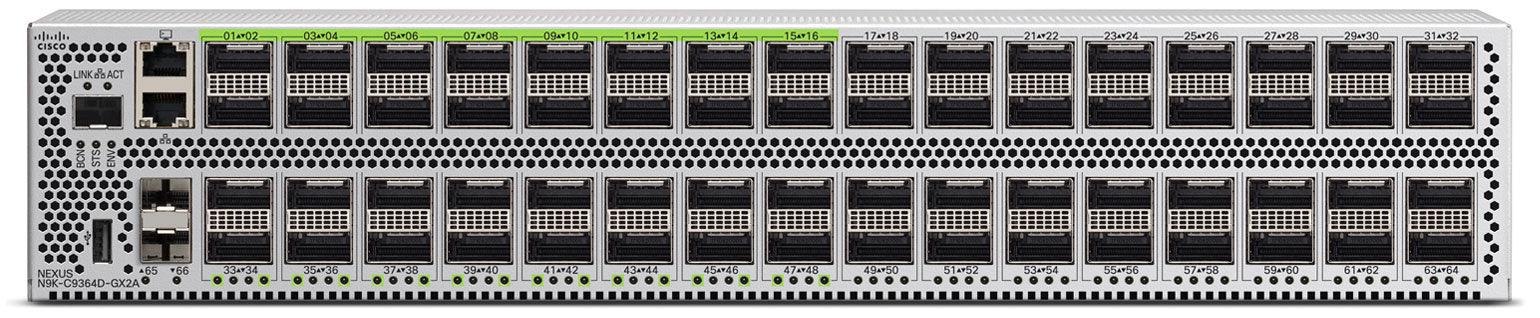

Cisco N9K-C9364D-GX2A | Nexus 9300-GX2 64-Port 400G QSFP-DD Switch, 51.2 Tbps
SKU:N9K-C9364D-GX2A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 9300-GX2 is a compact 2RU fixed data-centre switch built for high-density spine roles in large scale-out fabrics. It can run in NX-OS mode or as an ACI spine or leaf, which suits VXLAN EVPN fabrics and AI/ML networking.
It provides 64 x 400G QSFP-DD ports, each of which also supports native 200G, 100G and 40G, plus 2 x 1/10G SFP+ ports. Breakout options include 4x10G, 4x25G, 4x50G, 4x100G and 2x200G per port. Total bandwidth is 51.2 Tbps with a forwarding rate of 8.35 bpps, backed by 120MB of buffer, 32GB of system memory and a 128GB SSD. Wire-rate MACsec is available on the first 16 ports. Power comes from 3200W AC supplies with hot-swappable, 3+1 redundant fans.
Licensing is handled through Cisco Smart Accounts, with Essentials, Advantage and Premier subscription tiers available in 3, 5 or 7-year terms. The fan and power supply options are port-side intake, and the Australian power cord option is CAB-AC-16A-AUS.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports Cisco ACI spine and leaf modes, NX-OS VXLAN EVPN, IP Fabric for Media and Nexus Dashboard Data Broker
- Standards-based VXLAN EVPN with hierarchical multisite support
- Segment routing (SR and SRv6) with comprehensive L3 IPv4 and IPv6 unicast and multicast support
- Programmability through POAP day-0 automation, Ansible, RESTCONF, NETCONF, gNMI, REST API and model-driven telemetry
- Flexible forwarding tables supporting up to 2 million shared entries
- AI/ML fabric support including PFC, ECN, lossless RoCE, WRED and intelligent buffer management
- Hot-swappable power supplies and fans for in-service maintenance
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 64 x 400G QSFP-DD and 2 x 1/10G SFP+
- QSFP-DD port speeds: also supports native 200G, 100G and 40G
- Breakout options: 4x10G, 4x25G, 4x50G, 4x100G, 2x200G per port
- Bandwidth: 51.2 Tbps
- Forwarding rate: 8.35 bpps
- Form factor: 2RU
- MACsec: wire-rate on first 16 ports
- Buffer: 120MB
- System memory: 32GB
- SSD: 128GB
- Management ports: 1 x 10/100/1000BASE-T and 1 x 1G SFP
- Console: 1 x RS-232 serial, 1 x USB
- CPU: 6 cores
- Power supply: 3200W AC, 100 to 240V, 50 to 60 Hz, hot-swappable
- Power draw: 1324 W typical, 3000 W maximum
- Fans: 4 fans, 3+1 redundancy, hot-swappable
- Airflow: port-side intake
- Dimensions (H x W x D): 8.76 x 43.94 x 75.65 cm
- Weight without power supplies or fans: 26.3 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 4000 m
- MTBF: 216,590 hours
- IPv4 LPM routes: up to 1 million
- IPv6 LPM routes: up to 500K
FAQs
Q: Does this switch need a software licence?
A: Yes. Licences are managed through Cisco Smart Accounts, and an add-on software subscription (Essentials, Advantage or Premier) is required. Terms are 3, 5 or 7 years, and 90-day evaluation licences are also available.
Q: What power supply and fans does it use?
A: It uses 3200W AC power supplies (NXA-PAC-3200W-PI) and NXA-SFAN-160CFM-2PI fans, both port-side intake. The Australian power cord option is CAB-AC-16A-AUS.
Q: Can I connect lower-speed devices to the 400G ports?
A: Yes. Each QSFP-DD port also supports native 200G, 100G and 40G, and breakout options include 4x10G, 4x25G, 4x50G, 4x100G and 2x200G.
Q: Which operating modes does it support?
A: It runs in NX-OS mode or in ACI mode as either a spine or a leaf.
Q: How do I choose compatible optics?
A: Optics are purchased separately. Check the Cisco Optics-to-Device Compatibility Matrix for supported modules and the minimum software release.
