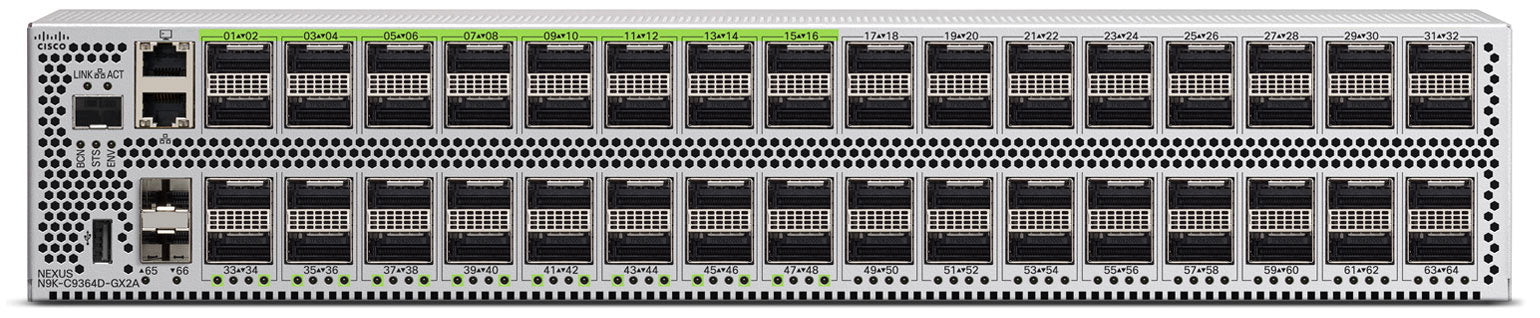

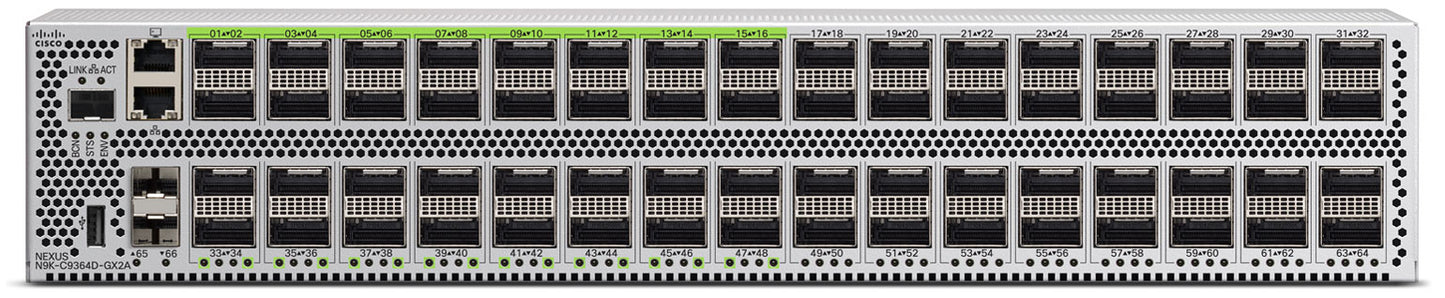

• Cisco N9K-C9364C-H1 black and silver 64-port 40/100G QSFP28 network switch
1 1

Cisco

Cisco N9K-C9364C-H1 | Nexus 9300 64-Port 40/100G QSFP28 Switch, 12.8 Tbps, 2RU

N9K-C9364C-H1

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 9364C-H1 is a high-density 2RU data center switch engineered for spine and leaf deployments in modern cloud-scale architectures. With 64 fixed 40/100G QSFP28 ports and 12.8 Tbps switching capacity, it delivers ultra-low latency, flexible multi-speed connectivity, and hardware-based MACsec encryption on 16 ports. Ideal for ACI or NX-OS environments demanding scalable, high-performance 100G aggregation.

Features

Dual operational modes: Cisco NX-OS standalone or Cisco ACI integration
- Cloud Scale ASIC technology with 2 traffic slices for improved scalability
- VXLAN BGP EVPN fabric support for overlay networking
- Segment routing and MPLS capabilities
- Comprehensive Layer 2 and Layer 3 routing (requires additional licensing for advanced features)
- Advanced QoS with priority flow control (PFC) and explicit congestion notification (ECN)
- Real-time telemetry and streaming analytics for network observability
- Hot-swappable power supplies and fan trays with N+1 redundancy
- Reversible airflow options: port-side intake or exhaust
- High power efficiency: ≥90% across 20-100% load
- Support for ACL, RBAC, and AAA security protocols
- Python scripting and programmability for automation
- Compatible with Cisco Nexus Dashboard Insights and Fabric Controller

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

64 x 40/100G QSFP28 ports; 2 x 1/10G SFP+ management ports
- Port speeds: 10G, 25G, 40G, 100G (with breakout and adapter support)
- Switching capacity: 12.8 Tbps
- Forwarding rate: 3.6 Bpps (wire-speed, non-blocking)
- Packet buffer: 40 MB on-die shared buffer
- MACsec encryption: Hardware support on ports 49-64
- CPU: Intel Broadwell-DE 4-core processor
- Memory: 32 GB system RAM; 128 GB SSD storage
- Management: 1 x 10/100/1000BASE-T, 1 x 1G SFP, 1 x RS-232 console, 1 x USB
- Power supply: Dual hot-swappable; 1200W AC or 930W DC (up to 2)
- Typical power consumption: 429W AC
- Cooling: 3 hot-swappable fan trays with redundant fans, reversible airflow
- Form factor: 2RU rack-mountable; Dimensions (H x W x D): 8.59 x 44.13 x 56.58 cm
- Weight: 16.74 kg with PSU and fans installed
- Operating system: Cisco NX-OS or ACI mode
- MTBF: 192,380 hours
- Compliance: RoHS, WEEE

FAQs

Q: What deployment roles does the N9K-C9364C-H1 support?
A: The switch functions as both spine and leaf in Cisco ACI or NX-OS mode data center fabrics, offering 6.4T processing per fabric engine for scalable spine-leaf-APIC architectures.

Q: Does this switch support port breakout for lower speeds?
A: Yes, breakout is supported on the first port of each quad (ports 1, 5, 9, 13, etc.) for 4x10G and 4x25G configurations. Breakout is not supported on ports 1-64 in standard configuration; adapter-based 10G connections via QSFP-to-SFP adapters are available on ports 1-48.

Q: Which ports support MACsec encryption?
A: Ports 49-64 (marked green on the front panel) support wire-rate MACsec encryption for securing spine-to-spine or high-security uplinks.

Q: What is the difference between the N9K-C9364C and N9K-C9364C-H1?
A: The H1 variant features enhanced hardware for higher table scale, including support for 20 million LPM entries and 1 million MAC address entries, optimized for large-scale cloud and data center environments.

Q: Is this switch compatible with existing 10G infrastructure?
A: Yes, the switch supports 10G connectivity using QSFP28-to-SFP+ adapters and can leverage existing multimode fiber cabling for cost-effective upgrades to 40G and 100G.
