Cisco N9K-C93400LD-H1 | Nexus 9300 48-Port 50G SFP56 Switch, 4x 400G QSFP-DD
SKU:N9K-C93400LD-H1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

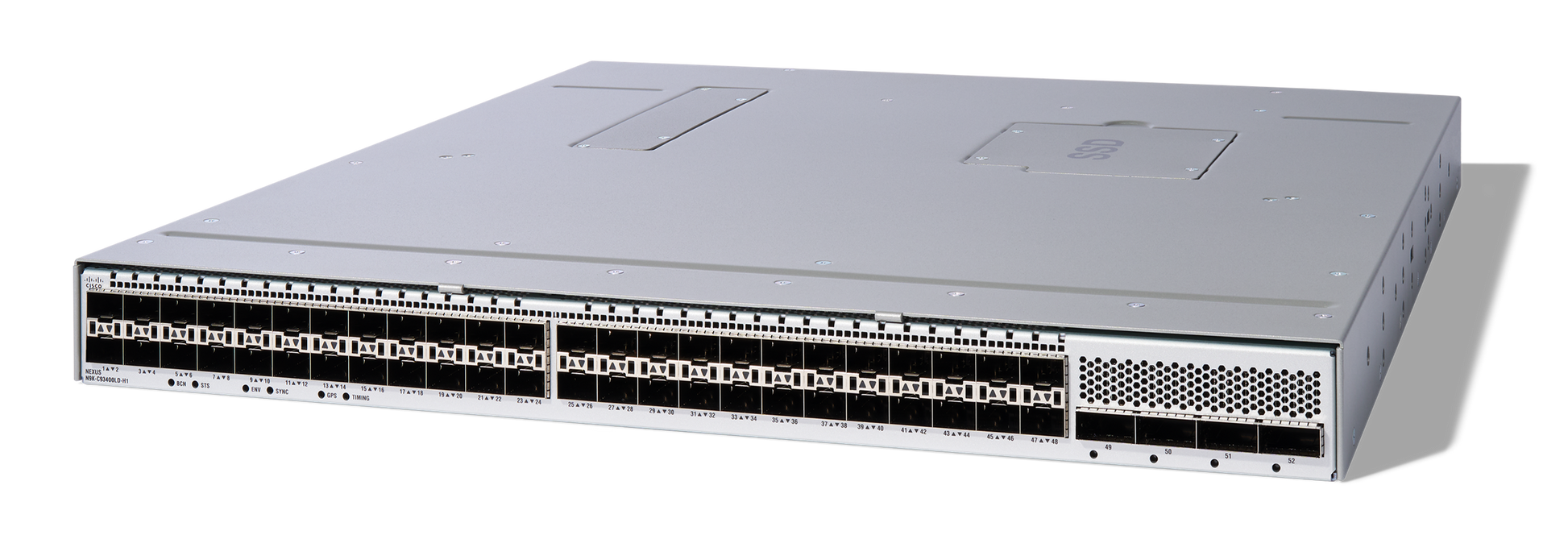

The Nexus 9300 N9K-C93400LD-H1 is a 1RU fixed data-centre switch built on Cisco Cloud Scale technology. It is positioned for high-density 400G leaf, spine and aggregation in cloud fabrics, and for 5G and telco networks that need precise time synchronisation through PTP Class C and SyncE. It also suits AI/ML fabrics, border leaf roles, IP Fabric for Media and secure leaf-to-spine links with MACsec on every port.
This SKU is the version supplied with power supplies and fans fitted. It provides 48 x 50G SFP56 ports and 4 x 400G QSFP-DD ports, with the 400G ports able to break out to 4x10G, 4x25G or 4x100G. Total bandwidth is 8 Tbps with a 40MB on-die packet buffer, 32GB of system memory expandable to 64GB, and a 128GB SSD. Typical power draw is 394 W and maximum is 765 W, with hot-swappable power supplies and five fans in 4+1 redundancy.
The switch runs in NX-OS or ACI mode and integrates with Nexus Dashboard. Layer-3 routing and Nexus Data Broker require additional licences under the Cisco DCN Essentials, Advantage and Premier subscription tiers. Power supply options are NXA-PAC-1400W-PI/PE (AC), NXA-PDC-2KW-PI/PE (DC) and NXA-PHV-2KW-PI (HV).
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports Cisco ACI, NX-OS VXLAN EVPN, IP Fabric for Media and Nexus Data Broker
- Class C PTP 1588 and SyncE timing accuracy for 5G and telco synchronisation
- IEEE 802.1ae MACsec on all ports
- AI/ML fabric support with PFC, ECN, RoCE, DCB, WRED and intelligent buffer management
- Segment Routing (SR and SRv6) support
- Programmability through POAP, Ansible, NETCONF/RESTCONF/gNMI, OpenConfig and model-driven telemetry
- High availability with vPC, ISSU, hot-swappable power supplies and fans
- Nexus Dashboard integration (NDFC, NDI, NDO)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 50G SFP56 and 4 x 400G QSFP-DD
- Breakout: 4x10G, 4x25G and 4x100G on the 400G ports
- Form factor: 1RU fixed
- Bandwidth: 8 Tbps
- On-die buffer: 40MB
- System memory: 32GB, expandable to 64GB
- SSD: 128GB
- CPU: 4 cores
- USB ports: 1
- RS-232 serial console ports: 1
- Management ports: 2
- GPS 1PPS and 10MHz input/output ports: 1 each
- Timing: SyncE, G.8275.1 and G.8275.2 Class C on all ports
- Power supply options: 1400W AC, 2000W DC, 2000W HV
- Cooling: 5 hot-swappable fans, 4+1 redundancy
- Typical power: 394 W
- Maximum power: 765 W
- Dimensions (H x W x D): 4.37 x 43.94 x 50.00 cm
- Weight with power supplies and fans: 10.65 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 55 C
- Humidity: 5 to 95% non-condensing
- MTBF: 224,280 hours
- IPv4 LPM routes: approx. 2 million
- MAC address entries: approx. 1 million
- VLANs: 4096 (127 reserved)
- ECMP paths: 128
FAQs
Q: Does this switch need a licence?
A: The default NX-OS image provides a Layer-2 security and management feature set. Layer-3 IP unicast and multicast routing and Nexus Data Broker need additional licences. The switch uses the Cisco DCN Essentials, Advantage and Premier subscription tiers.
Q: Which power supplies does it use?
A: It supports hot-swappable power supplies with N+1 redundancy. Options are NXA-PAC-1400W-PI/PE (1400W AC), NXA-PDC-2KW-PI/PE (2000W DC) and NXA-PHV-2KW-PI (2000W HV AC/DC). The fan module is NXA-FAN-35CFM-PI/PE.
Q: Can the 400G ports be broken out?
A: Yes. The four QSFP-DD 400G ports support breakout to 4x10G, 4x25G or 4x100G.
Q: How does this SKU differ from N9K-C93400LD-H1=?
A: N9K-C93400LD-H1 is bundled with power supplies and fans. The spare N9K-C93400LD-H1= ships without them.
Q: Which operating modes and management platforms are supported?
A: It runs in either NX-OS mode or ACI mode, and works with Nexus Dashboard including NDFC, NDI and NDO.
