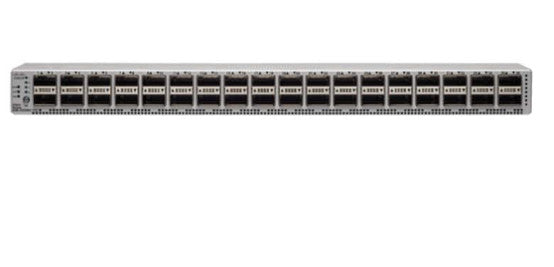

• Cisco N9K-C9336C-FX2-H 36-port 100G QSFP28 switch, 1RU fixed
1 1

Cisco

Cisco N9K-C9336C-FX2-H | Nexus 9300-FX2 36-Port 100G QSFP28 Switch, 7.2 Tbps

N9K-C9336C-FX2-H

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 9336C-FX2 is a high-density 1RU data center switch engineered for spine-leaf architectures and cloud-scale deployments. Featuring 36 QSFP28 ports with flexible multi-rate support from 1G to 100G and full breakout capability on all interfaces, it delivers 7.2 Tbps switching capacity and 2.4 billion packets per second forwarding performance. This switch supports both Cisco NX-OS and ACI modes, offering wire-rate MACsec encryption, advanced telemetry, and programmability for modern data center environments.

Features

Cisco Cloud Scale ASIC technology for high-density, low-latency forwarding
- Layer 2 and Layer 3 switching with advanced routing protocols
- Virtual PortChannel (vPC) for dual-homed device redundancy
- VXLAN with EVPN control plane for overlay network virtualization
- Wire-rate MACsec (IEEE 802.1AE) encryption on all ports
- Spanning Tree Protocol (STP, RSTP, MSTP) with 64 instances
- Advanced QoS with priority flow control and enhanced transmission selection
- Comprehensive ACL support: 5,000 ingress and 2,000 egress entries
- IGMP snooping with support for 32,000 multicast groups
- Power On Auto Provisioning (POAP) for zero-touch deployment
- Telemetry and streaming analytics for real-time network visibility
- Hot-swappable redundant power supplies and fan modules
- Python scripting and programmability via NX-API
- Cisco ACI ready for software-defined networking
- IPv4 and IPv6 routing with OSPF, BGP, EIGRP, IS-IS support
- Port mirroring (SPAN/ERSPAN) for traffic monitoring
- NAT support for 1,023 entries
- SNMP, CLI, and web-based management interfaces

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

36 x 100G QSFP28 ports (40G/100G native)
- Flexible port speeds: 1/10/25/40/50/100 Gbps Ethernet
- Full breakout support on all ports: 100G, 2x50G, 40G, 4x25G, 4x10G
- Switching capacity: 7.2 Tbps
- Forwarding rate: 2.4 billion packets per second (Bpps)
- System buffer: 40 MB intelligent shared buffer
- CPU: 4 cores
- System memory: 24 GB
- SSD storage: 128 GB
- Management: 1x RJ-45 console, 1x SFP+ management port, 1x USB
- Power supplies: Dual hot-swappable (750W AC, 1100W AC/DC/HVAC/HVDC options)
- Typical power consumption: 337W (AC)
- Maximum power consumption: 719W (AC)
- Fans: 3 dual fan trays with reversible airflow (port-side intake or exhaust)
- Form factor: 1RU rack-mountable
- Dimensions: 1.73 x 17.41 x 23.6 inches (4.4 x 44.2 x 59.9 cm)
- Operating temperature: 0°C to 40°C
- VLANs supported: 3,967
- VRF instances: 16,000
- MAC address table: 256,000 entries
- Port channels: 512 (max 32 links per channel)
- ECMP paths: 64
- Wire-rate MACsec encryption on all ports

FAQs

Q: What operating systems does the N9K-C9336C-FX2 support?
A: The switch supports both Cisco NX-OS for traditional data center deployments and Cisco ACI mode for intent-based, policy-driven network automation. You can choose the operating mode based on your network architecture requirements.

Q: Can this switch support lower-speed connections like 10G or 25G?
A: Yes, all 36 QSFP28 ports support full breakout capabilities. You can use breakout cables to connect 4x25G or 4x10G devices per port, significantly increasing port density. The switch supports 1/10/25/40/50/100 Gbps speeds with appropriate optics and cables.

Q: What airflow options are available for the N9K-C9336C-FX2?
A: The switch offers reversible airflow configurations to match your data center cooling design. You can order port-side intake (burgundy colored) or port-side exhaust (blue colored) fan and power supply modules. All fan modules and power supplies must have matching airflow direction.

Q: Is this switch suitable for spine or leaf deployment in a data center fabric?
A: Yes, the N9K-C9336C-FX2 is designed for both spine and leaf roles in modern data center architectures. With 36 high-speed ports, 7.2 Tbps capacity, and sub-microsecond latency, it excels in spine-leaf topologies, VXLAN EVPN fabrics, and ACI deployments.

Q: What type of transceivers are required?
A: The switch uses QSFP28 transceivers for 100G links and QSFP+ transceivers for 40G connections. For breakout configurations, you can use QSFP28-to-4xSFP28 cables for 25G or QSFP+-to-4xSFP+ cables for 10G. Ensure you use Cisco-compatible optics for full feature support.
