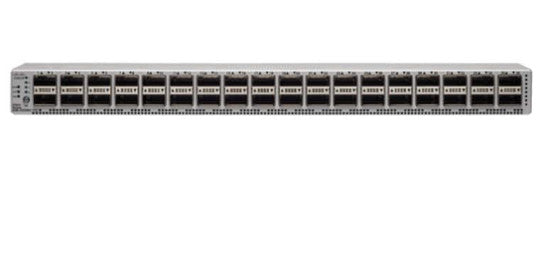

• Cisco N9K-C9336C-FX2-E 36x 100G QSFP28 switch with silver body
1 1

Cisco

Cisco N9K-C9336C-FX2-E | Nexus 9300-FX2 36-Port 100G QSFP28 Switch, 7.2 Tbps, FC/FCoE

N9K-C9336C-FX2-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-C9336C-FX2-E is a high-performance 1RU data center switch with 36 QSFP28 ports supporting 1/10/25/40/50/100 Gbps Ethernet and 16/32 Gbps Fibre Channel, delivering 7.2 Tbps switching capacity and 2.4 billion packets per second. Built for LAN/SAN convergence, it supports VXLAN EVPN fabrics, ACI deployment, wire-rate MACsec encryption, and universal port breakout. Ideal for spine-leaf architectures, cloud-scale data centers, and enterprise networks requiring flexible migration from legacy 10/40G infrastructure to modern 25/100G fabrics.

Features

Layer 2 and Layer 3 switching with advanced routing protocols (BGP, OSPF, EIGRP, IS-IS)
- VXLAN with MP-BGP EVPN control plane for overlay network fabrics
- Cisco ACI fabric capability for policy-driven automation
- Fibre Channel and FCoE N-Port Virtualization (NPV) for LAN/SAN convergence
- Native Fibre Channel support (16/32 Gbps) via port breakout conversion
- Wire-rate MACsec encryption on all ports for physical-layer security
- Virtual PortChannel (vPC) for multi-chassis link aggregation
- Comprehensive QoS with priority flow control and Data Center Bridging (DCB)
- Flexible port breakout on all 36 QSFP28 ports (100G/40G/50G/25G/10G/1G)
- Intelligent buffer management with 40 MB system buffer
- Hardware-based RDMA over Converged Ethernet (RoCE) support
- Advanced telemetry with streaming telemetry and Cisco Tetration Analytics support
- Network Assurance Engine (NAE) integration for proactive monitoring
- Cisco Cloud Scale ASIC architecture for cloud-scale performance
- Dual hot-swappable power supplies with N+1 redundancy
- Dual hot-swappable fan modules with redundancy
- Power On Auto Provisioning (POAP) for zero-touch deployment
- Comprehensive security features: ACLs (5,000 ingress, 2,000 egress entries), port security, DHCP snooping, Dynamic ARP Inspection
- Port channeling with up to 512 port channels, 32 links per channel, and ECMP (64 paths)
- Spanning Tree Protocol (STP, RSTP, MSTP) with 64 instances
- HSRP and VRRP for gateway redundancy (490 HSRP groups)
- Multicast support: PIM-SM, PIM-SSM, IGMP v2/v3 snooping (32,000 groups)
- Python scripting and extensive programmability via NX-API, REST, and open-source tools

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

36 x 100G QSFP28 ports (40/100G native; breakout 4x25G, 4x10G, 2x50G NRZ; 1G with QSA on ports 7-32)
- Port speed flexibility: 1/10/25/40/50/100 Gbps Ethernet; 16/32 Gbps Fibre Channel
- Switching capacity: 7.2 Tbps
- Forwarding rate: 2.4 billion packets per second (bpps)
- System memory: 24 GB RAM
- Storage: 128 GB SSD
- System buffer: 40 MB
- CPU: 4-core processor
- Form factor: 1RU rack-mountable
- Dimensions: 43.9 cm W x 62.3 cm D x 4.4 cm H (1RU)
- Weight: Approximately 8.5 kg (chassis)
- Power consumption: 777W operational (typical)
- Power supply options: Dual hot-swappable (750W AC or 1100W AC/DC), port-side intake or exhaust airflow
- Airflow: Port-side exhaust (blue) or port-side intake (burgundy) options
- Management: 1x Console (RJ45), 1x USB, 1x out-of-band management (RJ45), 1x out-of-band management (SFP)
- Operating system: Cisco NX-OS or ACI mode
- Scalability: 16,000 VRF instances, 3,967 VLANs, 512 port channels, 32,000 multicast routes
- Wire-rate MACsec encryption on all ports (≥1G speeds)
- FC/FCoE NPV support for LAN/SAN convergence

FAQs

Q: What is the difference between N9K-C9336C-FX2 and N9K-C9336C-FX2-E?
A: The N9K-C9336C-FX2-E adds unified port capability to support native Fibre Channel (16/32 Gbps) and FCoE for LAN/SAN convergence, while the base N9K-C9336C-FX2 supports Ethernet-only operation. Both share the same 36-port 100G QSFP28 layout and 7.2 Tbps capacity.

Q: Can this switch run in both NX-OS and ACI modes?
A: Yes, the N9K-C9336C-FX2-E supports both standalone NX-OS mode and Cisco ACI fabric mode. You can deploy it as a spine or leaf switch in ACI environments or as a traditional data center switch with NX-OS.

Q: What breakout options are supported on the QSFP28 ports?
A: All 36 QSFP28 ports support flexible breakout: 100G native, 40G native, 2x50G NRZ, 4x25G, 4x10G (with QSA adapters), and 1G (with QSA on ports 7-32). Ports 1-6 and 33-36 do not support 1G breakout.

Q: Does this switch support Fibre Channel port conversion?
A: Yes, the E variant supports converting QSFP28 ports to native Fibre Channel breakout interfaces (16/32 Gbps FC). FC-NPV and FCoE-NPV modes are supported, enabling LAN and SAN traffic convergence on the same hardware.

Q: What are typical use cases for the N9K-C9336C-FX2-E?
A: Common deployments include spine/aggregation layers in VXLAN EVPN leaf-spine fabrics, high-density 100G top-of-rack aggregation, ACI data center fabrics, and converged LAN/SAN environments where both Ethernet and Fibre Channel connectivity are required on the same switch.
