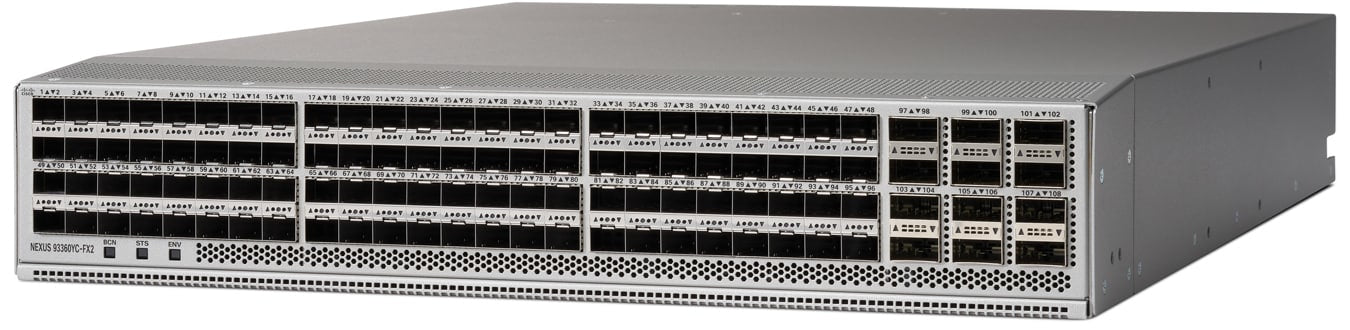

• Cisco N9K-C93360YC-FX2 silver switch with 96x SFP28 ports
1 1

Cisco

Cisco N9K-C93360YC-FX2 | Nexus 9300-FX2 96-Port 25G SFP28 Switch, 12x 100G QSFP28, MACsec

N9K-C93360YC-FX2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-C93360YC-FX2 is a high-performance 2RU data center leaf switch delivering 7.2 Tbps bandwidth and 2.4 bpps forwarding rate across 96 SFP28 ports supporting 1/10/25 Gbps and 12 QSFP28 uplinks supporting 40/100 Gbps. Part of the Nexus 9300-FX2 Series, it features MACsec encryption, Layer 3 routing, VXLAN EVPN support, and 40 MB system buffer for modern cloud-scale data center deployments. Ideal for aggregation, leaf-spine architectures, and high-density server connectivity.

Features

Layer 2 and Layer 3 switching with full routing protocol support (OSPF, BGP, EIGRP, PIM)
- VXLAN with MP-BGP EVPN control plane for multi-tenant network virtualization
- MACsec (IEEE 802.1ae) wire-rate encryption for secure data center connectivity
- Virtual Port Channel (VPC) technology for loop-free topologies and active-active redundancy
- RDMA over Converged Ethernet (RoCE) support for high-performance storage and compute clusters
- Intelligent buffer management with 40 MB shared buffer for low-latency, lossless operation
- FC-FEC and RS-FEC forward error correction for 25G links over extended distances
- Power-On Auto Provisioning (POAP) for zero-touch deployment and automated configuration
- Comprehensive QoS, ACL, multicast (PIM-SM, SSM), and security features
- Cisco Cloud Scale ASIC technology for programmability and telemetry
- Hot-swappable dual redundant power supplies and fan trays for continuous operation
- Standards-based protocols: STP, RSTP, MSTP, LACP, LLDP, SNMP, NetFlow, sFlow
- Support for Cisco ACI (Application Centric Infrastructure) in leaf mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Ports: 96x 1/10/25G SFP28 downlinks, 12x 40/100G QSFP28 uplinks
- Switching Capacity: 7.2 Tbps
- Forwarding Rate: 2.4 billion packets per second
- CPU: 4-core processor
- Memory: Up to 24 GB system memory
- Storage: 128 GB SSD drive
- System Buffer: 40 MB
- Management Ports: 1x RJ-45, 1x SFP+, 1x USB, 1x RS-232 serial console
- Breakout Support: Ports 97-108 support 4x 10/25G breakout
- Power Supplies: Dual redundant hot-swappable (1200W AC, 1200W HVAC/HVDC options)
- Typical Power Consumption: 404W AC
- Maximum Power Consumption: 900W AC
- Cooling: 3 fan trays with port-side intake and exhaust airflow
- Form Factor: 2RU rack-mountable
- Dimensions (H x W x D): 3.38 x 17.41 x 24.14 inches (85.9 x 442.2 x 613.2 mm)
- Weight: Approximately 54.45 lbs (24.7 kg)
- Operating System: Cisco NX-OS
- Compliance: IEEE 802.1ae (MACsec)
- FEC Support: FC-FEC and RS-FEC for 25G over longer distances

FAQs

Q: What deployment scenarios is the N9K-C93360YC-FX2 best suited for?
A: This switch is optimized for data center leaf-spine architectures, high-density server aggregation, cloud-scale deployments, and VXLAN EVPN fabrics. It is ideal for organizations migrating from 10G to 25G server connectivity and 40G to 100G uplinks.

Q: Does this switch support MACsec encryption?
A: Yes, the N9K-C93360YC-FX2 is MACsec-capable, supporting IEEE 802.1ae for wire-rate Layer 2 encryption to secure data center traffic between switches and servers without performance degradation.

Q: Can the QSFP28 uplink ports be used in breakout mode?
A: Yes, ports 97-108 (the 12 QSFP28 uplinks) support 4x 10/25G breakout mode, providing flexibility to connect to lower-speed devices or increase port density for specific use cases.

Q: What software features and licenses are included?
A: The switch runs Cisco NX-OS and is L3-ready. It supports VXLAN with EVPN, Layer 3 routing protocols (OSPF, BGP, EIGRP), VPC, MPLS, RDMA over Converged Ethernet (RoCE), and comprehensive data center features. Always verify current licensing requirements with Cisco or your authorized partner.

Q: What redundancy and high-availability features does this switch provide?
A: The switch supports dual redundant hot-swappable power supplies, variable-speed cooling fans, virtual port channels (VPC) for network-level redundancy, and Cisco NX-OS high-availability features including ISSU (In-Service Software Upgrade) for minimal downtime during maintenance.
