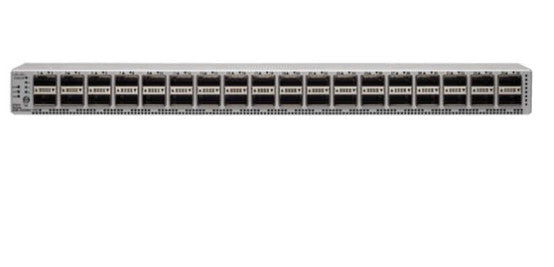

• Cisco N9K-C9336-FX2-Z-PE 36-port 40/100G QSFP28 switch
1 1

Cisco

Cisco N9K-C9336-FX2-Z-PE | Nexus 9300-FX2 36-Port 40/100G QSFP28 Switch, 7.2Tbps, Layer 3

N9K-C9336-FX2-Z-PE

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 9336C-FX2 is a high-density 1RU data centre switch delivering 7.2 Tbps bandwidth and over 2.4 billion packets per second. With 36 QSFP28 ports supporting flexible 1/10/25/40/50/100 Gbps speeds and full breakout capability, this Layer 3-enabled switch is ideal for spine-leaf architectures, cloud-scale deployments, and converged fabrics. The port-side exhaust airflow configuration suits cold-aisle data centre deployments.

Features

Cisco Cloud Scale technology for high-density data centre deployments
- Full Layer 2 and Layer 3 switching with hardware-accelerated forwarding
- Wire-rate MACsec encryption on all 36 ports for data security
- VXLAN EVPN support with MP-BGP control plane for overlay networks
- Virtual PortChannel (vPC) technology for multi-chassis redundancy
- Comprehensive routing: BGP, OSPF, EIGRP, RIPv2, ECMP, MPLS, PIM-SM, SSM, MSDP
- Spanning Tree Protocol (STP) and Multiple Spanning Tree Protocol (MSTP)
- Intelligent buffer management (40 MB) with dynamic allocation
- Hardware ACL support: 5,000 ingress and 2,000 egress entries per slice
- IGMP snooping (up to 32,000 groups); multicast routing (128,000 routes)
- Power-on Auto Provisioning (POAP) for zero-touch deployment
- Comprehensive telemetry and analytics for Cisco Tetration and Network Assurance Engine
- Hot-swappable dual power supplies and fan trays for high availability
- NX-OS programmability with Python, REST APIs, and automation frameworks
- Support for up to 16 Nexus 2000 Series Fabric Extenders per switch
- Port-side exhaust airflow optimised for cold-aisle data centre environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

36 x 40/100 Gigabit QSFP28 ports
- Switching capacity: 7.2 Tbps full-duplex
- Forwarding rate: 2.4 billion packets per second (Bpps)
- Supported speeds: 1/10/25/40/50/100 Gbps Ethernet with breakout on all ports
- 10 Gbps support with QSA adapter on ports 1-36; 1 Gbps with QSA on ports 7-32
- Layer 3 routing enabled (BGP, OSPF, EIGRP, RIPv2, PIM-SM, SSM, MSDP)
- System memory: 24 GB; CPU: 4 cores; SSD storage
- System buffer: 40 MB intelligent buffer management
- Port-side exhaust airflow (blue-coded power supplies and fan trays)
- Dual redundant hot-swappable power supplies: 750W AC or 1100W AC/DC options
- 3 dual fan trays (port-side exhaust configuration)
- MAC address table: 256,000 entries; LPM routes: up to 896,000
- VLANs supported: 3,967; VRF instances: 16,000
- Management: NX-OS, CLI, SNMP, USB, console RJ45, out-of-band Ethernet/SFP
- Form factor: 1RU rack-mountable; Dimensions: 1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm)
- Typical power: 337W AC; Maximum power: 719W AC
- Operating temperature: 0°C to 40°C; MTBF: 352,590 hours

FAQs

Q: What is the difference between the port-side exhaust and port-side intake airflow options?
A: Port-side exhaust (blue-coded modules) directs air from the power supply side through to the port side, suited for cold-aisle deployments where cool air enters from the rear. Port-side intake (burgundy-coded) does the opposite. All power supplies and fan modules in a single switch must match the same airflow direction.

Q: Does this switch support breakout cables on all ports?
A: Yes, the Nexus 9336C-FX2 supports breakout on all 36 QSFP28 ports. Each 100G port can be broken out into 4x25G, 4x10G (with QSA), 2x50G, or operate natively as 100G or 40G. Ports 7-32 also support 1G with QSA adapters.

Q: Is Layer 3 routing included with this SKU?
A: Yes, the N9K-C9336-FX2-Z-PE includes Layer 3 licensing enabled, supporting full routing protocols including BGP, OSPF, EIGRP, RIPv2, PIM-SM, SSM, and MSDP. This makes it suitable for spine-leaf fabrics and enterprise core/aggregation deployments.

Q: What power supply options are compatible with this switch?
A: The switch requires two redundant hot-swappable power supplies with port-side exhaust (blue): NXA-PAC-750W-PE (750W AC), NXA-PAC-1100W-PE2 (1100W AC), or NXA-PDC-1100W-PE (1100W DC). Operating with one PSU is supported, though two are recommended for redundancy.

Q: Can this switch be used in VXLAN EVPN fabrics?
A: Yes, the Nexus 9336C-FX2 with NX-OS supports standards-based VXLAN EVPN fabrics with MP-BGP control plane, including hierarchical multi-site deployments. It also supports vPC (Virtual PortChannel), MACsec encryption on all ports, and comprehensive telemetry for modern data centre architectures.
