Cisco

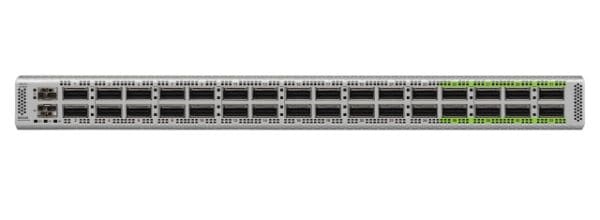

Cisco N9K-C9332D-GX2B | Nexus 9300 32-Port 400G QSFP-DD Switch, 32GB Memory

SKU:N9K-C9332D-GX2B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 9300-GX2 N9K-C9332D-GX2B is a compact 1RU fixed data centre switch built for next-generation leaf and spine fabrics. It delivers 25.6 Tbps of bandwidth and runs in either NX-OS or Cisco ACI mode, making it suited to large VXLAN EVPN, ACI and IP Fabric for Media deployments.

This SKU provides 32 x 400G QSFP-DD ports, which also support native 200G, 100G and 40G, plus 2 x 1/10G SFP+ ports. Forwarding performance is 4.17 bpps, with 32 GB of system memory, a 128 GB SSD and a 120 MB buffer. Breakout options include 4 x 10G, 4 x 25G, 4 x 50G, 4 x 100G and 2 x 200G. Wire-rate MACsec is available on the last 8 ports for encrypted links. Power comes from 1500W AC supplies, with hot-swappable fans in a 5+1 redundant arrangement. This is the 32GB memory variant, distinct from the 64GB N9K-C9332D-GX2B-M.

Software is managed through Cisco Smart Accounts with Essentials, Advantage or Premier subscription tiers. Optics are chosen against the Cisco Optics-to-Device Compatibility Matrix, and the switch can be managed through Cisco Nexus Dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact 1RU leaf and spine switch with 25.6 Tbps capacity
- QSFP-DD ports support 400G, 200G, 100G and 40G with multiple breakout options
- Wire-rate MACsec encryption on the last 8 ports
- Supports Cisco ACI, NX-OS VXLAN EVPN, IP Fabric for Media and Nexus Dashboard Data Broker
- Modular NX-OS with a dedicated process per routing protocol for fault isolation
- Hot-swappable fans and power supplies
- Cisco Nexus Dashboard is included with all N9000 tiered licences

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x 400G QSFP-DD and 2 x 1/10G SFP+
- Bandwidth: 25.6 Tbps
- Forwarding rate: 4.17 bpps
- Port breakout options: 4 x 10G, 4 x 25G, 4 x 50G, 4 x 100G, 2 x 200G
- Buffer: 120 MB
- System memory: 32 GB
- SSD: 128 GB
- CPU: 6 cores
- Management ports: 1 x 10/100/1000BASE-T and 1 x 1G SFP
- Console: 1 x RS-232 serial, 1 x USB
- Power supply: 1500W AC, 100 to 240V, 50 to 60 Hz
- Typical power: 638 W
- Maximum power: 1442 W
- Cooling: 6 hot-swappable fans, 5+1 redundancy, port-side intake and exhaust
- Form factor: 1RU
- Dimensions (H x W x D): 4.4 x 43.9 x 60.8 cm
- Weight without power supplies and fans: 12.7 kg
- Operating temperature: 0 to 40 C port-side intake, 0 to 28 C port-side exhaust
- Humidity: 5 to 95% non-condensing
- MTBF: 211,310 hours
- Max IPv4 LPM routes: 2 million
- Max MAC address entries: 1 million

FAQs

Q: Does this switch need a software licence or subscription?
A: Licences are managed through Cisco Smart Accounts, and an add-on software subscription is ordered with the switch. There are three tiers, Essentials, Advantage and Premier, each with 3, 5 or 7 year terms.

Q: What power does the N9K-C9332D-GX2B use?
A: It uses 1500W AC supplies rated for 100 to 240V at 50 to 60 Hz. Typical draw is 638 W and maximum draw is 1442 W.

Q: Which optics work in the QSFP-DD ports?
A: The QSFP-DD ports accept 400G, 200G (QSFP56), 100G (QSFP28) and 40G (QSFP+) optics, and the SFP+ ports take 1/10G. Check the Cisco Optics-to-Device Compatibility Matrix for supported modules and minimum software releases.

Q: How does this SKU differ from N9K-C9332D-GX2B-M?
A: This SKU has 32 GB of system memory, while the -M variant has 64 GB. Port count and 1500W AC power are the same.

Q: Can it run Cisco ACI?
A: Yes. It supports ACI spine, ACI leaf and standalone NX-OS modes.
