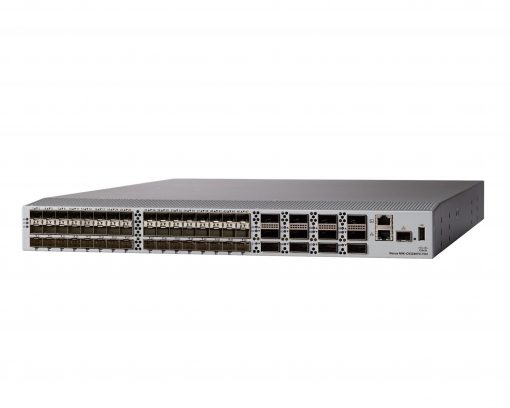

• Cisco N9K-C93240YC-FX2 silver switch with 48x 10/25G ports
1 1

Cisco

Cisco N9K-C93240YC-FX2 | Nexus 9300-FX2 48-Port 10/25G Switch, 12x 100G QSFP28, 4.8Tbps

N9K-C93240YC-FX2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-C93240YC-FX2 is a high-performance data centre leaf switch designed for cloud-scale deployments and modern spine-leaf architectures. With 48 ports of 1/10/25G SFP28 downlinks and 12 ports of 40/100G QSFP28 uplinks, it delivers 4.8 Tbps switching capacity and over 2.5 bpps forwarding performance. Built on Cisco Cloud Scale technology, this switch supports VXLAN EVPN fabrics, ACI, and NX-OS, making it ideal for virtualized data centres requiring high-density 25G server connectivity and 100G aggregation. Note: This is a spare unit shipped without power supplies or fan modules.

Features

Cisco Cloud Scale ASIC for high-performance forwarding and telemetry
- Layer 2 and Layer 3 switching with comprehensive routing protocols
- VXLAN with MP-BGP EVPN control plane for overlay networks
- Support for Cisco ACI fabric and standalone NX-OS deployment
- Virtual PortChannel (vPC) for redundant Layer 2 connectivity
- MACsec encryption support for Layer 2 security
- Intelligent buffer management with 40 MB shared buffer
- RoCE (RDMA over Converged Ethernet) support for storage and HPC workloads
- Spanning Tree Protocol (STP, RSTP, MSTP) support
- Comprehensive Access Control Lists (ACLs) for traffic filtering
- SNMP, NETCONF, RESTCONF, and NX-API for programmability and automation
- Cisco Tetration Analytics platform support for visibility and security
- Cisco Network Assurance Engine (NAE) integration
- Power On Auto Provisioning (POAP) for zero-touch deployment
- Hardware and software high availability features
- Source-Specific Multicast (SSM) and PIM support
- FC-FEC and RS-FEC support for 25G over extended distances
- 5 hot-swappable fan modules for redundancy (sold separately)
- Dual redundant hot-swappable power supplies (sold separately)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 1/10/25-Gbps SFP28 ports (downlinks)
- 12x 40/100-Gbps QSFP28 ports (uplinks)
- Switching capacity: 4.8 Tbps
- Forwarding rate: 2.5 bpps+
- 4-core CPU, up to 24 GB system memory
- 128 GB SSD storage
- 40 MB system buffer for intelligent buffering
- Management: 1x RJ-45, 1x SFP+, 1x USB, 1x RS-232 serial console
- Power supply support: dual 750W AC, 1100W AC/DC/HVAC/HVDC (sold separately)
- Typical power consumption: 298W (AC)
- Maximum power consumption: 708W (AC)
- Form factor: 1.2 RU
- Dimensions: 3.38 x 17.41 x 24.13 in (8.59 x 44.23 x 61.31 cm)
- Operating systems: Cisco NX-OS, ACI mode
- NOTE: Spare unit - does not include power supplies or fan modules

FAQs

Q: What is the difference between this spare unit and the standard configuration?
A: The N9K-C93240YC-FX2 spare unit does not include power supplies or fan modules. These components must be ordered separately. Standard configurations typically include dual redundant power supplies and fan trays as part of the base SKU.

Q: Can this switch operate in both ACI and NX-OS modes?
A: Yes, the Nexus 93240YC-FX2 supports both Cisco ACI (Application Centric Infrastructure) fabric mode and standalone NX-OS mode. The operating mode is configured during initial setup and can support VXLAN EVPN fabrics in both deployment models.

Q: What transceivers are required for the SFP28 and QSFP28 ports?
A: The 48 SFP28 ports support 1G, 10G, and 25G transceivers, while the 12 QSFP28 ports support 40G and 100G modules. Cisco recommends using genuine Cisco optics for full feature support and warranty coverage. Third-party optics may work but are not officially supported.

Q: Is this switch suitable for a spine-leaf data centre architecture?
A: Absolutely. The 93240YC-FX2 is designed as a high-density leaf switch, offering 48x 25G ports for server connectivity and 12x 100G uplinks to connect to spine switches. It's ideal for modern data centres requiring low-latency, high-throughput east-west traffic.

Q: Does this model support port breakout on the QSFP28 uplinks?
A: The 93240YC-FX2 does not natively support breakout cables on the QSFP28 ports, though this feature has been on Cisco's roadmap. The 48 SFP28 ports are fixed and do not support breakout. Always consult the latest NX-OS release notes for feature availability.
