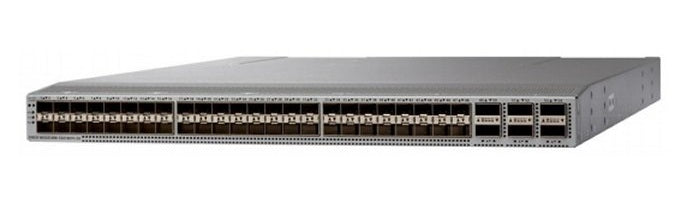

• Cisco N9K-C93180YC-ZZ-PE switch with 48x 1/10/25G ports and 6x 100G uplinks
1 1

Cisco

Cisco N9K-C93180YC-ZZ-PE | Nexus 9300-EX 48-Port 1/10/25G Switch, 6x 100G QSFP28, Layer 3

N9K-C93180YC-ZZ-PE

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 93180YC-EX is a high-performance 1RU data center switch delivering 3.6 Tbps bandwidth and sub-microsecond latency. With 48 flexible SFP28 ports supporting 1/10/25 Gbps speeds and 6 QSFP28 uplinks capable of 40/100 Gbps, it provides exceptional scalability for cloud-scale deployments. Built on Cisco Cloud Scale technology with comprehensive Layer 3 routing and MACsec encryption support, this switch is ideal for top-of-rack and aggregation layer applications in modern virtualized data centers.

Features

Layer 2 and Layer 3 switching with comprehensive routing protocol support (OSPF, EIGRP, BGP, IS-IS)
- VXLAN with EVPN support for network virtualization and overlay networks
- Virtual PortChannel (vPC) for multi-chassis link aggregation and high availability
- MACsec encryption on all ports for wire-rate Layer 2 security
- Cisco Tetration Analytics telemetry support with ASIC-level flow visibility
- Intelligent buffer management with Approximate Fair Dropping (AFD) and elephant flow detection
- Flexible TCAM space with customizable ACL templates
- In-Service Software Upgrade (ISSU) for zero-downtime maintenance
- Comprehensive QoS with 8 hardware queues per port and granular traffic classification
- Python and Bash scripting support with comprehensive APIs (NX-API, NETCONF, RESTCONF)
- Hot-swappable redundant power supplies and fan modules
- Support for Cisco Nexus Fabric Extenders (FEX) for distributed architecture
- MPLS support for service provider and DCI environments
- PTP (Precision Time Protocol) boundary clock support
- FC-FEC and RS-FEC forward error correction for 25G connectivity
- Comprehensive network monitoring with sFlow, NetFlow, and SPAN/ERSPAN

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 1/10/25G SFP28 ports (downlinks)
- 6x 40/100G QSFP28 ports (uplinks)
- Switching capacity: 3.6 Tbps
- Forwarding rate: 2.6 billion packets per second
- Latency: Less than 1 microsecond
- System memory: 24 GB
- SSD storage: 64 GB
- System buffer: 40 MB
- CPU: 4 cores
- Management ports: 1x RJ-45, 1x SFP+
- Form factor: 1RU rack-mountable
- Power supply: Dual redundant (650W AC or 930W DC or 1200W HVAC/HVDC)
- Airflow: Port-side exhaust (blue coding)
- Operating system: Cisco NX-OS
- MAC address table: 512,000 entries
- VLANs supported: 4,096
- VRF instances: 1,000
- Port channels: 512 (max 32 links per channel)
- ECMP paths: 64

FAQs

Q: What speeds do the downlink ports support?
A: The 48 SFP28 downlink ports are highly flexible and can be configured per-port to operate at 1 Gbps, 10 Gbps, or 25 Gbps, allowing you to mix speeds based on connected devices and gradually migrate from legacy 1G/10G infrastructure to 25G server connectivity.

Q: Can the uplink ports operate at different speeds?
A: Yes, the 6 QSFP28 uplink ports support 40 Gbps and 100 Gbps operation, and can also be breakout configured for 10/25/50 Gbps connectivity, providing maximum flexibility for spine connections and aggregation layer uplinks.

Q: What operating modes does this switch support?
A: The Nexus 93180YC-EX supports two modes: NX-OS standalone mode for traditional data center switching, and ACI (Application Centric Infrastructure) mode for policy-based automation when deployed with Cisco APIC controllers. A single software image supports both modes.

Q: Does this switch include Layer 3 routing capabilities?
A: Yes, this SKU variant includes the Enhanced Layer 3 license (indicated by the L3 designation), providing full support for OSPF, EIGRP, BGP, and advanced routing protocols. It supports up to 1,000 VRF instances and 1 million flexible forwarding table entries.

Q: What security features are included?
A: The switch includes comprehensive security capabilities including MACsec encryption on all ports, Control Plane Policing, Secure Boot, role-based access control (RBAC), and support for 802.1X authentication. It also includes advanced ACL support with 4,000 ingress and 2,000 egress entries.
