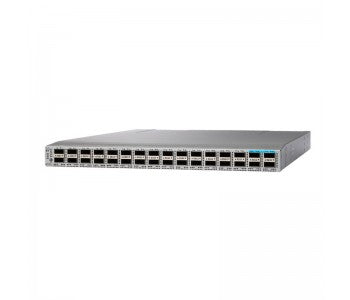

Cisco N9K-C93180LC-EX | Nexus 9300-EX Switch, 32p 40/50G or 18p 100G QSFP28
SKU:N9K-C93180LC-EX
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 9300-EX N9K-C93180LC-EX is a fixed 1RU Cisco Cloud Scale data-centre switch built for cloud-scale leaf and aggregation roles. It suits teams moving from 10/40G to 50/100G at the aggregation layer, and it runs in either standalone NX-OS mode or Cisco ACI mode, making it a fit for VXLAN EVPN fabrics and virtualised or automated environments.
Port density is flexible: up to 32 x 40/50G QSFP+ ports or up to 18 x 100G QSFP28 ports, with up to 72 x 10G ports available through breakout cables. Bandwidth is 3.6 Tbps with a forwarding rate over 2.6 bpps and a 40 MB system buffer. A 4-core CPU, 24 GB of system memory and a 64 GB SSD support the control plane. Typical power draw is 220W and maximum is 500W.
The switch accepts 40G/50G QSFP+ and 100G QSFP28 optics, supports up to 16 N2000 Fabric Extenders, and needs NX-OS 7.0(3)I6.1 or ACI 12.2(1n) as a minimum. Layer 3 routing and Nexus Data Broker require additional licences.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco Cloud Scale ASIC platform with large buffers and flexible Layer 2/Layer 3 scalability
- Runs in standalone NX-OS mode or Cisco ACI mode
- Standards-based VXLAN EVPN fabrics, including multi-site support
- Segment routing (MPLS) support
- Layer 3 IPv4/IPv6 unicast and multicast routing: BGP, OSPF, EIGRP, RIPv2, PIM-SM, SSM, MSDP
- Day-zero automation (POAP) and extensive programmability
- Network Assurance Engine (NAE) support
- Hot-swappable redundant power supplies and fans
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: Up to 32 x 40/50G QSFP+ or up to 18 x 100G QSFP28
- Breakout: Up to 72 x 10G ports using breakout cables
- Bandwidth: 3.6 Tbps
- Forwarding rate: Over 2.6 bpps
- Form factor: 1RU fixed
- CPU: 4 cores
- System memory: 24 GB
- SSD: 64 GB
- System buffer: 40 MB
- Management ports: 1 RJ-45 and 1 SFP
- USB ports: 1
- Console: 1 x RS-232 serial
- Power supply slots: 2 (500W AC, 930W DC or 1200W HVAC/HVDC)
- Typical power: 220W
- Maximum power: 500W
- Fans: 4, port-side intake or exhaust airflow
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight (without power supplies or fans): 7.8 kg
- Operating temperature: 0 to 40 C
- Max LPM routes: 896,000
- Max MAC address entries: 256,000
- Max ECMP paths: 64
- Minimum software: NX-OS 7.0(3)I6.1 or ACI 12.2(1n)
FAQs
Q: Does this switch need a licence for Layer 3 routing?
A: Yes. The default NX-OS image includes a Layer 2 security and management feature set. Layer 3 IP unicast and multicast routing, and Cisco Nexus Data Broker, need additional licences available as subscription or perpetual.
Q: Can it run in ACI mode as well as NX-OS mode?
A: Yes. The switch supports both standalone NX-OS mode and Cisco ACI mode. The minimum images are NX-OS 7.0(3)I6.1 and ACI 12.2(1n).
Q: Which power supplies and fans does it use?
A: It has two power supply slots that take 500W AC, 930W DC or 1200W HVAC/HVDC (N9K-PUV-1200W) supplies. Fans are NXA-FAN-30CFM-F for port-side exhaust or NXA-FAN-30CFM-B for port-side intake.
Q: How do the 40/50G and 100G port options work?
A: The switch provides up to 32 x 40/50G QSFP+ ports or up to 18 x 100G QSFP28 ports. Breakout cables give up to 72 x 10G ports.
Q: Does it support fabric extenders?
A: Yes. It supports up to 16 Nexus 2000 Series Fabric Extenders per switch.
