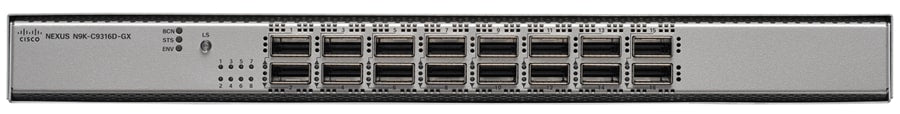

Cisco N9K-C9316D-GX | Nexus 9300-GX 16-Port 400G QSFP-DD Switch, 1RU
SKU:N9K-C9316D-GX
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 9300-GX is a 1RU fixed data-centre switch built on Cisco Cloud Scale technology, with 16 QSFP-DD ports running at 400/100/40G. It suits spine or leaf roles in 100G and 400G fabrics, including scaled-out spine-leaf designs for cloud applications and AI/ML workloads. It can also be used in mobile service provider environments, Professional Media Networking and NFV.
This model delivers 12.8 Tbps of bandwidth and over 4.3 bpps of forwarding, with breakout available on all ports (2x200, 4x100, 2x100, 8x50, 4x50, 2x50, 4x25 and 4x10, with 10G via a QSA). It has a 4-core CPU, 32 GB of RAM, a 128 GB SSD and an 80 MB system buffer. Power comes from two 1100W supplies in 1+1 redundancy with 5+1 redundant fans, drawing a typical 420W and a maximum of 1010W. It runs in Cisco NX-OS, ACI (as spine or leaf) or Nexus Hyperfabric mode, and is managed through Cisco Nexus Dashboard.
Cisco N9000 tiered software licensing applies to the software features. Genuine option parts include fans NXA-FAN-35CFM-PI and NXA-FAN-35CFM-PE, AC power supplies NXA-PAC-1100W-PI2 and NXA-PAC-1100W-PE2, and the NXK-ACC-KIT-1RU accessory kit.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco Cloud Scale ASIC with backward-compatible QSFP-DD 400G optical interface for migrating 40G and 100G fabrics to 400G
- VXLAN EVPN fabrics with multisite support
- Layer 3 unicast and multicast routing including BGP, OSPF, IS-IS, EIGRP, RIPv2, PIM-SM, SSM and MSDP
- Segment Routing (SR and SRv6) support
- Programmability through POAP, Ansible, YANG/OpenConfig, RESTCONF, NETCONF, gNMI, REST API and model-driven telemetry
- AI/ML fabric support with PFC, ECN, RoCE lossless transport, WRED and intelligent buffer management
- High availability with vPC, 64-way ECMP, ISSU and hot-swappable N+1 power supplies and fans
- Operating modes: Cisco ACI, Cisco NX-OS or Cisco Nexus Hyperfabric
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 16 x 400/100/40-Gbps QSFP-DD
- Supported speeds: 40/100/400-Gbps Ethernet
- Breakout on all ports: 2x200, 4x100, 2x100, 8x50, 4x50, 2x50, 4x25, 4x10; 10G with QSA
- Bandwidth: 12.8 Tbps
- Forwarding rate: over 4.3 bpps
- CPU: 4 cores
- System memory: 32 GB
- SSD: 128 GB
- System buffer: 80 MB
- Management ports: 1 RJ-45 and 1 SFP
- USB ports: 1
- RS-232 serial ports: 1
- Power supplies: 2 x 1100W (1+1 redundancy)
- Typical power: 420W
- Maximum power: 1010W
- Heat dissipation: 3,466.22 BTU per hour
- AC input voltage: 100 to 240 V, 50 to 60 Hz
- Fans: 5+1 redundancy
- Dimensions (H x W x D): 4.37 x 44.13 x 64.8 cm
- Weight: 9.43 kg without fans and PSUs, 12.34 kg with fans and PSUs
- Operating temperature: 0 to 40 C
- Operating altitude: 0 to 4,000 m
- MTBF: 323,140 hours
- Max MAC address entries: 512,000
- Max ECMP paths: 64
- Form factor: 1RU
FAQs
Q: Which software modes does this switch support?
A: It runs in Cisco NX-OS (9.3.3 or later), Cisco ACI (14.2(2e) or later) as either spine or leaf, or Cisco Nexus Hyperfabric mode.
Q: What software licensing does it use?
A: Cisco N9000 tiered software licensing applies to the software features. Nexus Dashboard is included with all N9000 tiered licences, Nexus Dashboard Fabric Controller needs DCN Essentials, Orchestrator needs DCN Advantage, and Insights needs DCN Premier or the Day-2 Ops add-on.
Q: What power supplies and fans does it use?
A: It takes two hot-swappable 1100W supplies in 1+1 redundancy, available as AC (NXA-PAC-1100W-PI2 or PE2), DC (NXA-PDC-1100W-PI or PE) and HVAC/HVDC (NXA-PHV-1100W-PI or PE). Fans are NXA-FAN-35CFM-PI or NXA-FAN-35CFM-PE, in port-side intake or exhaust airflow.
Q: Can the ports run at lower speeds or be broken out?
A: Yes. All 16 ports support 400, 100 and 40G, and breakout is available on every port, including 2x200, 4x100, 8x50 and 4x25, with 10G supported using a QSA.
Q: How does it differ from the N9K-C93600CD-GX and N9K-C9364C-GX?
A: The N9K-C9316D-GX provides 16 x 400/100G QSFP-DD ports in 1RU. The N9K-C93600CD-GX has 28 x 100G QSFP28 plus 8 x 400G QSFP-DD, and the N9K-C9364C-GX has 64 x 100G QSFP28.
