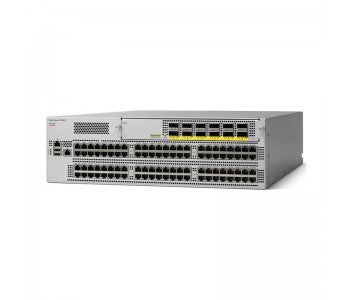

• Cisco N9K-C93128TX silver switch with black ports and gray faceplate
1 1

Cisco

Cisco N9K-C93128TX | Nexus 9300 96-Port 10G Switch, 8x 40G QSFP+, 3RU, Layer 3

N9K-C93128TX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-C93128TX Nexus 93128TX is a high-density data center switch designed for top-of-rack and middle-of-row deployments in enterprise, cloud, and service provider environments. With 96 fixed 100M/1/10GBASE-T ports and 8 fixed 40 Gbps QSFP+ uplink ports, it delivers 2.56 Tbps of switching capacity and 750 Mpps forwarding rate with ultra-low latency. Ideal for ACI leaf-spine architectures, virtualization clusters, and high-performance computing workloads requiring high-density copper connectivity.

Features

Cisco NX-OS operating system with support for VXLAN/EVPN, OSPF, BGP, IS-IS, MPLS, VRF-Lite
- Full Layer 2 and Layer 3 switching capabilities with hardware-based forwarding
- Cisco Application Centric Infrastructure (ACI) ready for automated policy-based network management
- Virtual Port Channel (vPC) support for active-active uplink redundancy and high availability
- Advanced QoS with granular traffic classification, marking, and queuing
- Comprehensive security features including access control lists (ACLs), port security, DHCP snooping, Dynamic ARP Inspection
- Fibre Channel over Ethernet (FCoE) support for converged storage networks
- Large integrated shared packet buffer for burst traffic management
- Streaming telemetry and Cisco Tetration Analytics integration for deep network visibility
- In-service software upgrades (ISSU) for non-disruptive maintenance
- PowerOn Auto Provisioning (POAP) for zero-touch deployment
- Hot-swappable redundant power supplies and fan modules for maximum uptime
- NX-API support for programmability and automation with REST, JSON, and XML
- Flexible airflow configurations to support hot-aisle and cold-aisle data center designs
- Energy-efficient design with 80 Plus Platinum certified power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

96x 100M/1G/10GBASE-T RJ-45 ports (auto-sensing)
- 8x 40 Gigabit Ethernet QSFP+ uplink ports (via N9K-M12PQ module, 8 ports active)
- Switching capacity: 2.56 Tbps
- Forwarding rate: 750 Mpps
- Latency: 1-2 microseconds
- Form factor: 3RU fixed-configuration switch
- CPU: Dual-core 2.5 GHz x86 processor
- Memory: 16 GB RAM
- Storage: 64 GB SSD
- MAC address table: Up to 96,000 entries
- Power supply: Dual redundant hot-swappable PSUs (715W AC, maximum 910W total)
- Fan modules: 3x hot-swappable, N+1 redundant, variable-speed
- Airflow options: Port-side intake or port-side exhaust configurations
- Management: RS-232 console, 10/100/1000 out-of-band Ethernet, 2x USB 2.0, CLI, NX-OS, SNMP, NetFlow, streaming telemetry
- Dimensions (H x W x D): 5.3 x 17.5 x 22.5 inches (3RU)
- Operating temperature: 0°C to 40°C
- 80 Plus Platinum certified power supplies

FAQs

Q: Does the N9K-C93128TX support 1G speeds on the copper ports?
A: Yes. All 96 fixed ports are auto-sensing 100M/1G/10GBASE-T, allowing seamless connectivity with legacy 1G servers and future migration to 10G without infrastructure changes.

Q: Can this switch be deployed as a leaf switch in a Cisco ACI fabric?
A: Yes. The N9K-C93128TX is designed to function as a leaf switch in Cisco ACI environments, providing high-density server connectivity and integration with ACI spine switches for automated, policy-based data center operations.

Q: Which uplink modules are compatible with the N9K-C93128TX?
A: The switch supports various uplink modules including the N9K-M6PQ (6x 40G QSFP+), N9K-M12PQ (12x 40G QSFP+), N9K-M6PQ-E, and N9K-M4PC-CFP2 (4x 100G). With the N9K-C93128TX, 8 ports are active on the M12PQ module.

Q: What type of cabling is required for 10G connectivity?
A: For full 10 Gbps speeds over the standard 100-meter distance, Category 6a (Cat6a) or Category 7 (Cat7) cabling is required. Standard Cat6 cabling may support 10G at shorter distances (up to 37-55 meters).

Q: Does the N9K-C93128TX require additional licensing?
A: The switch includes base NX-OS software. Advanced features such as ACI mode or certain Layer 3 protocols may require additional licenses like Nexus 9300 Essentials or Advantage licenses, depending on deployment requirements.
