Cisco

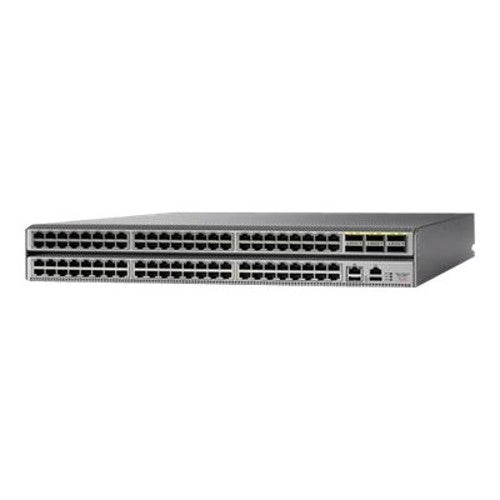

Cisco N9K-C93120TX | Nexus 9300 96-Port 10GBASE-T Switch, 6x 40G QSFP+, 2RU

SKU:N9K-C93120TX

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 9300 N9K-C93120TX is a fixed-configuration 2RU data centre switch built for top-of-rack and middle-of-row copper server access. It also suits leaf roles in spine-leaf fabrics, and it can run in either Cisco NX-OS or ACI mode for 3-tier or spine-leaf designs. It is a practical choice for migrating copper access ports to 10GBASE-T.

The switch provides 96 fixed 100M/1/10GBASE-T ports and 6 fixed 40G QSFP+ uplinks, which can be converted to 10G ports. It delivers 2.4 Tbps of bandwidth and over 750 mpps of forwarding, with latency of 1 to 2 microseconds and 25 MB of additional shared packet buffer. It supports up to 128,000 LPM routes, 208,000 IP host entries and 96,000 MAC addresses. Up to two hot-swappable power supplies (1200W AC, 930W DC or 1200W HVAC/HVDC) run in a 1+1 redundant arrangement, with typical draw of 542 W and maximum draw of 948 W.

Cisco NX-OS default system software provides a comprehensive Layer 2 security and management feature set, while Layer 3 IP unicast and multicast routing and Cisco Nexus Data Broker require additional licences. It supports Cisco QSFP+ 40G transceivers, including the 40G BiDi optic, QSFP-to-SFP (QSA) adapters for 10G uplinks, and up to 16 Nexus 2000 Series Fabric Extenders.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs in Cisco NX-OS or ACI mode
- Line-rate VXLAN bridging and routing
- Hot-swappable 1+1 redundant 80 Plus Platinum power supplies and N+1 redundant fan trays
- Port-side intake and port-side exhaust airflow options
- Power-On Autoprovisioning (POAP) for automated deployment
- JSON/XML RPC API and Python scripting for programmability
- Supports Nexus Data Broker and Intelligent Traffic Director
- 100M/1G/10G access speeds for migrating copper ports to 10G
- 40G QSFP+ BiDi optics can reuse existing multimode 10G cabling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 96 fixed 100M/1/10GBASE-T
- Uplinks: 6 fixed 40G QSFP+ (can be converted to 10G ports)
- Bandwidth: 2.4 Tbps
- Forwarding rate: over 750 mpps
- Latency: 1 to 2 microseconds
- Additional shared packet buffer: 25 MB
- CPU: dual-core 2.5-GHz x86
- Memory: 16 GB
- SSD: 64 GB
- Power supplies: up to 2 (1200W AC, 930W DC or 1200W HVAC/HVDC), 1+1 redundant
- Typical power: 542 W
- Maximum power: 948 W
- Input voltage (AC): 100 to 240 V
- Input voltage (HVAC): 200 to 277 V
- Input voltage (DC): -40 to -72 V
- Input voltage (HVDC): -240 to -380 V
- Fans: 2 fan trays
- Form factor: 2RU
- Dimensions (H x W x D): 3.5 x 17.5 x 22.5 in (8.9 x 44.5 x 57.1 cm)
- Weight (without power supplies or fans): 26 lb (11.8 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 4000 m (13,123 ft)
- Max LPM routes: 128,000
- Max IP host entries: 208,000
- Max MAC address entries: 96,000
- Max VLANs: 4096
- Max Nexus 2000 Fabric Extenders: 16
- ACL entries: 4000 ingress, 1000 egress
- RoHS compliant: Yes

FAQs

Q: Does it need a licence for Layer 3 routing?
A: Cisco NX-OS default system software provides a comprehensive Layer 2 security and management feature set. Additional licences are required for Layer 3 IP unicast and multicast routing and for Cisco Nexus Data Broker.

Q: What power supplies does it use?
A: It takes up to two hot-swappable power supplies in a 1+1 redundant arrangement: 1200W AC, 930W DC or 1200W HVAC/HVDC. All Nexus 9000 power supplies are 80 Plus Platinum rated, and typical draw for the switch is 542 W.

Q: What can I connect to the 40G QSFP+ uplinks?
A: The uplinks accept Cisco QSFP+ 40G transceivers, including the 40G BiDi optic, which can reuse existing multimode 10G cabling. QSFP-to-SFP (QSA) adapters let the uplinks run at 10G.

Q: Can it run in ACI mode?
A: Yes. The switch can run in either Cisco NX-OS mode or ACI mode, supporting 3-tier or spine-leaf designs.

Q: Does it support Nexus 2000 Fabric Extenders?
A: Yes. It supports up to 16 Nexus 2000 Series Fabric Extenders per switch.
