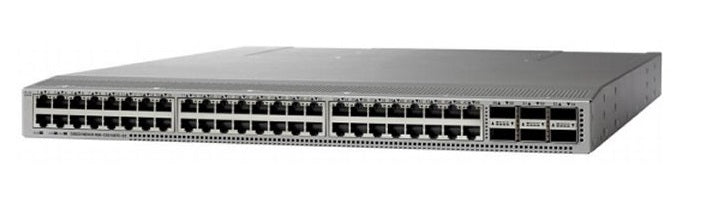

• Cisco Catalyst 9300 N9K-C93108TC-FX3P switch with 48 Ethernet ports
1 1

Cisco

Cisco N9K-C93108TC-FX3P | Nexus 9300-FX3 48-Port MultiGig Switch, 6x 100G QSFP28, PoE++

N9K-C93108TC-FX3P

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 93108TC-FX3P is a high-performance 1RU data center switch delivering 2.16 Tbps bandwidth and 1.2 billion packets per second throughput. Featuring 48 multigigabit ports with flexible speeds from 100M to 10G and six 40/100G QSFP28 uplinks, this switch is ideal for brownfield and greenfield data centers requiring versatile connectivity. Supports PoE++ on all downlink ports and runs Cisco NX-OS or ACI mode for flexible deployment in enterprise and service provider environments.

Features

Cloud Scale ASIC for high-performance packet processing
- Advanced Layer 2 and Layer 3 switching with VXLAN support
- MACsec hardware encryption on 1Gbps and higher ports
- Support for up to 16,000 VLANs and 1,000 VRFs
- Intelligent traffic management with ETRAP and Approximate Fair Dropping (AFD)
- Routing protocols: OSPF, BGP, IS-IS, EIGRP
- Multicast support: PIM, IGMP
- Flexible deployment in Cisco ACI or NX-OS standalone mode
- Hot-swappable redundant power supplies and fan modules
- Power over Ethernet Plus (PoE++) on all 48 downlink ports
- Comprehensive security: ACLs, CoPP, DHCP snooping, dynamic ARP inspection
- Software Defined Networking (SDN) support
- Advanced buffering and congestion management for elephant and mice flows
- Cisco DCNM integration for centralized management
- Segment routing and hierarchical fabric designs
- Zero-touch provisioning with POAP (Power-On Auto Provisioning)
- In-Service Software Upgrade (ISSU) support
- Python scripting and automation capabilities

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 100M/1G/2.5G/5G/10GBASE-T ports with multigigabit Ethernet support
- 6x 40/100G QSFP28 uplink ports
- Switching capacity: 2.16 Tbps
- Forwarding rate: 1.2 billion packets per second (Bpps)
- PoE++ (UPoE) support: Up to 60W per port on all 48 downlink ports
- PoE budget: Up to 1920W (non-redundant dual 1900W PSU configuration)
- System memory: 16GB RAM
- Storage: 128GB SSD
- Processor: 4-core CPU
- Packet buffer: 40MB intelligent buffering
- Form factor: 1RU fixed configuration
- Dimensions: 1.72 x 17.3 x 18 inches (4.4 x 43.9 x 45.9 cm)
- Weight: 16 lb (7.26 kg) without PSUs/fans; 23 lb (10.43 kg) with PSUs/fans
- Power supplies: Dual hot-swappable (715W DC, 1100W AC, or 1900W AC options)
- Typical power consumption: 360W; Maximum: 530W
- Operating system: Cisco NX-OS or ACI mode
- MTBF: 302,360 hours
- Airflow options: Port-side intake (burgundy) or port-side exhaust (blue)
- Management: CLI, NX-OS POAP, DCNM, SNMP, Cisco Assurance

FAQs

Q: What speeds do the multigigabit ports support?
A: All 48 downlink ports support flexible speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps over standard BASE-T cabling, allowing network upgrades without replacing existing copper infrastructure.

Q: What is the maximum PoE budget available?
A: The PoE budget depends on PSU configuration. With dual 1900W PSUs in non-redundant mode, the switch provides up to 1920W PoE budget. In redundant mode with dual 1900W PSUs, the budget is 1300W. Each port supports up to 60W PoE++ (UPoE) for high-power devices like access points and IoT equipment.

Q: Can this switch run in both NX-OS and ACI modes?
A: Yes, the N9K-C93108TC-FX3P supports both standalone NX-OS mode and Cisco ACI mode. In NX-OS mode, it operates as a traditional switch with full Layer 2/3 capabilities. In ACI mode, it functions as a leaf switch within an Application Centric Infrastructure fabric, providing policy-based automation and programmability.

Q: What licensing is required for this switch?
A: The switch is license-ready for Cisco NX-OS software licenses available in Essentials, Advantage, and Premier tiers. Licenses enable advanced Layer 3 features, routing protocols (OSPF, BGP), VXLAN, segment routing, and other data center features. Licenses are available as perpetual or subscription-based options.

Q: Is this switch suitable for data center leaf/ToR deployments?
A: Absolutely. The N9K-C93108TC-FX3P is purpose-built for Top-of-Rack (ToR) and leaf deployments in modern data centers. Its high-density multigigabit downlinks, 40/100G uplinks, low latency, MACsec encryption support, and VXLAN capabilities make it ideal for scalable spine-leaf architectures in both traditional and software-defined data centers.
