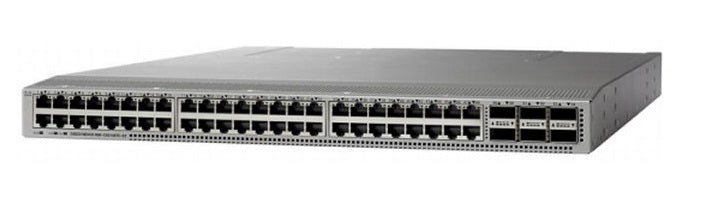

• Cisco Catalyst 9300 N9K-C93108TC-FX-24 switch with Ethernet ports
1 1

Cisco

Cisco N9K-C93108TC-FX-24 | Nexus 9300-FX 24-Port 10G Switch, 6x 40/100G QSFP28

N9K-C93108TC-FX-24

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus N9K-C93108TC-FX-24 is a 1RU data center switch designed for compact, high-performance ToR and leaf deployments. With 24 multi-rate 10GBASE-T ports supporting 100M/1G/10G speeds and 6 QSFP28 uplinks delivering 40G/100G connectivity, it provides exceptional flexibility for modern data center fabrics. Built on Cisco Cloud Scale technology, it delivers 2.16 Tbps switching capacity and 1.2 Bpps forwarding performance, with support for both NX-OS standalone and ACI fabric modes.

Features

Cisco Cloud Scale ASIC technology for high-density 10G server connectivity
- MACsec encryption on all ports at 10G and above for secure east-west and uplink traffic
- Support for VXLAN with MP-BGP EVPN control plane for overlay networking
- Cisco ACI fabric mode support for policy-driven automation and microsegmentation
- Layer 2 and Layer 3 switching with advanced routing protocols (BGP, OSPF, EIGRP)
- Virtual PortChannel (vPC) for active-active redundancy and high availability
- 40 MB shared packet buffer for handling bursty east-west traffic patterns
- Dual out-of-band management interfaces (RJ-45 and SFP)
- Hot-swappable, redundant power supplies and fans
- Field-selectable airflow direction for flexible rack cooling designs
- Zero-touch provisioning with Power-On Auto Provisioning (POAP)
- Advanced telemetry and analytics for real-time network visibility
- Support for Spanning Tree Protocol (STP), Multiple Spanning Tree Protocol (MSTP), and Rapid PVST+
- Access Control Lists (ACLs) with up to 2000 egress entries
- Virtual Routing and Forwarding (VRF) support for up to 16,000 VRF instances
- Multicast routing with Source-Specific Multicast (SSM) and IGMP snooping for up to 32,000 groups
- Comprehensive QoS with 8 hardware queues per port and traffic shaping
- Energy-efficient design with low-power 10GBASE-T PHY technology

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Port Configuration: 48 x 10GBASE-T ports (24 active with base license), 6 x 40/100G QSFP28 uplinks
- Downlink Speeds: 100 Mbps, 1 Gbps, 10 Gbps per port
- Uplink Speeds: 40G, 100G, with breakout support for 4x10G, 4x25G, 2x50G
- Switching Capacity: 2.16 Tbps
- Forwarding Rate: 1.2 Bpps (billion packets per second)
- System Buffer: 40 MB shared buffer
- Memory: 24 GB system memory
- Storage: 64 GB SSD
- Processor: 4-core CPU
- Management Ports: 2 (1 x RJ-45, 1 x SFP)
- Additional Ports: 1 x USB, 1 x RS-232 serial console
- Form Factor: 1RU rack-mountable
- Power Supply: Dual hot-swappable PSUs (650W AC, 930W DC, or 1200W HVAC/HVDC)
- Typical Power Consumption: 290W
- Maximum Power Consumption: 499W
- Airflow: Front-to-back or back-to-front (field-selectable)
- Licensing: Base switch ships with 24 active ports; upgrade license (N9K-FX-24P-UPG=) unlocks all 48 ports
- Operating Modes: NX-OS standalone or ACI fabric mode
- Latency: Sub-microsecond

FAQs

Q: How many ports are active on the N9K-C93108TC-FX-24 out of the box?
A: The switch ships with 24 active 10GBASE-T ports enabled. You can license any 24 of the 48 physical ports. To activate all 48 ports, purchase the N9K-FX-24P-UPG= upgrade license.

Q: What speeds are supported on the downlink ports?
A: The 10GBASE-T downlink ports support 100 Mbps, 1 Gbps, and 10 Gbps speeds, providing flexible migration paths from legacy networks to 10G infrastructure using existing CAT6 or CAT6A cabling.

Q: Can the QSFP28 uplinks be used for both 40G and 100G connectivity?
A: Yes. All six QSFP28 uplinks support both 40G and 100G operation. They also support breakout modes including 4x10G, 4x25G, and 2x50G for added flexibility in spine-leaf architectures.

Q: What software licenses are required for this switch?
A: The switch requires a minimum of the NX-OS Essentials license for LAN Base features. Advanced capabilities like VXLAN, EVPN, telemetry, and full Layer 3 routing require the NX-OS Advantage license. ACI mode requires separate ACI licenses.

Q: Is this switch compatible with Cisco ACI and VXLAN EVPN fabrics?
A: Yes. The N9K-C93108TC-FX-24 supports both NX-OS standalone mode with VXLAN EVPN and Cisco ACI fabric mode, making it suitable for software-defined data center deployments with policy-driven automation.
