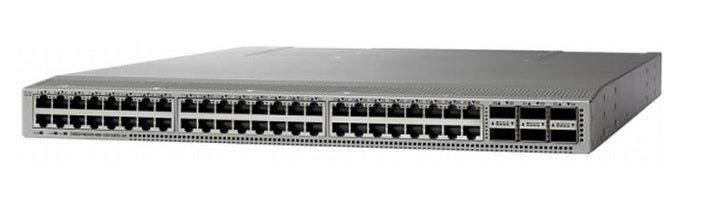

• Cisco N9K-C93108TC-EX-24 switch with 24x 10G ports and 6x 100G uplinks
1 1

Cisco

Cisco N9K-C93108TC-EX-24 | Nexus 9300-EX 24-Port 10GBASE-T Switch, 6x 100G QSFP28

N9K-C93108TC-EX-24

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus N9K-C93108TC-EX-24 is a compact 1RU data center switch designed for high-density top-of-rack deployments. It delivers 24 active 10GBASE-T downlink ports supporting 100Mbps/1G/10G speeds with six QSFP28 uplinks offering flexible 40G/100G connectivity. Engineered for modern cloud-scale data centers, this switch provides robust Layer 2 and Layer 3 capabilities with VXLAN and EVPN support, making it ideal for virtualized environments and enterprise network modernization.

Features

Layer 2 and Layer 3 switching with full IP routing capabilities
- VXLAN with EVPN support for network overlay and multi-tenancy
- Virtual PortChannel (vPC) technology for Layer 2 high availability
- In-Service Software Upgrade (ISSU) for zero-downtime maintenance
- Cloud Scale technology with enhanced MAC, routing, and ACL scalability
- 40 MB shared packet buffer for efficient handling of bursty traffic
- MACsec encryption support on 10G and higher speed ports
- Comprehensive routing protocols: BGP, OSPF, EIGRP, HSRP, PIM-SM, MSDP
- Source-Specific Multicast (SSM) and multicast optimization
- NPV Gateway mode for SAN connectivity
- Advanced telemetry and analytics capabilities
- Dual operating modes: Cisco NX-OS or ACI fabric
- Flexible airflow options (port-side intake or exhaust)
- Hot-swappable redundant power supplies and fan modules
- 512K MAC address table capacity
- Comprehensive QoS with hardware-based priority queuing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24 x 10GBASE-T RJ-45 downlink ports (48 total ports, 24 active by default)
- 6 x 40/100G QSFP28 uplink ports
- Downlink speeds: 100Mbps, 1Gbps, 10Gbps (configurable per port)
- Switching capacity: 2.16 Tbps
- Forwarding rate: 850 million pps (1.7 bpps)
- System memory: 24 GB RAM
- SSD storage: 64 GB
- System buffer: 40 MB shared buffer
- CPU: 4-core processor
- Management: 1x RJ-45 console, 1x SFP management port, 1x USB, 1x RS-232 serial
- Power supply: Dual redundant hot-swappable (650W AC, 930W DC, or 1200W HVAC/HVDC)
- Typical power consumption: 290W
- Maximum power consumption: 499W
- Form factor: 1RU rack-mountable
- Weight: Approximately 17.7 lbs (8 kg)
- Operating system: Cisco NX-OS
- Cooling: 4x hot-swappable fans with selectable airflow direction

FAQs

Q: How many ports are active on the N9K-C93108TC-EX-24 out of the box?
A: This switch comes with 24 active 10GBASE-T downlink ports by default. The hardware has 48 physical ports total, but only 24 are licensed initially. You can upgrade to 48 ports by purchasing the N9K-EX-24P-UPG= port expansion license.

Q: What licensing is required for the N9K-C93108TC-EX-24?
A: This switch requires a minimum of the Network Essentials license package to enable LAN Base features. Advanced licenses like Network Advantage can be purchased separately to enable additional features such as VXLAN, EVPN, advanced telemetry, and Cisco ACI capabilities.

Q: Can the 10GBASE-T ports operate at lower speeds?
A: Yes, all 24 10GBASE-T downlink ports are multi-speed and can be configured to operate at 100Mbps, 1Gbps, or 10Gbps, providing flexibility to support mixed-speed environments and legacy infrastructure.

Q: What uplink options are supported on the QSFP28 ports?
A: The six QSFP28 uplink ports support flexible connectivity including 40G, 100G, or breakout configurations for 1G, 10G, 25G, and 50G speeds. This provides migration flexibility as data center requirements evolve.

Q: Is this switch suitable for VXLAN deployments?
A: Yes, the N9K-C93108TC-EX-24 supports VXLAN with EVPN control plane, making it well-suited for modern overlay network architectures in both NX-OS standalone mode and Cisco ACI fabric deployments. It features large buffers and hardware-accelerated VXLAN encapsulation/decapsulation.
