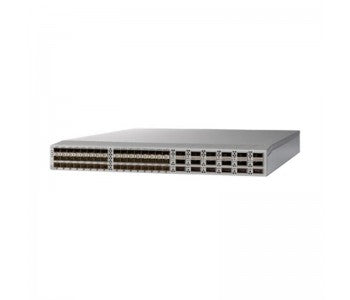

• Cisco N9K-C92300YC Nexus switch with 48x 10/25G and 18x 40/100G ports
1 1

Cisco

Cisco N9K-C92300YC | Nexus 9200 48-Port 10/25G Switch, 18x 100G QSFP28, Layer 3

N9K-C92300YC

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-C92300YC Nexus 92300YC is a high-density data center switch engineered for spine-leaf and cloud-scale fabric architectures. With 48 ports of 1/10/25 Gigabit SFP28 connectivity and 18 ports of 40/100 Gigabit QSFP28 uplinks, it delivers 6 Tbps of total bandwidth and ultra-low latency for demanding enterprise, service provider, and virtualized workloads. Running Cisco NX-OS, this Layer 3 managed switch provides advanced routing, VXLAN, EVPN, and programmable automation capabilities in a compact 1.5U form factor.

Features

Layer 3 routing with full BGP, OSPF, EIGRP, and ECMP support
- VXLAN and EVPN for overlay network virtualization
- Ultra-low latency design optimized for high-frequency trading and real-time applications
- Cisco Cloud Scale ASIC technology
- 30 MB shared packet buffer for burst absorption
- Programmable automation via NX-API, REST API, and Python scripting
- DevOps-ready with support for Ansible, Puppet, and Chef
- Equal-Cost Multipath (ECMP) with 64-way load balancing
- IPv4 and IPv6 routing with up to 650,000 LPM routes in heavy mode
- Advanced QoS with multiple queue scheduling algorithms
- Comprehensive security features including MACsec, ACLs, and role-based access control
- Hot-swappable redundant power supplies and fan trays for high availability
- Dual airflow options (port-side intake or exhaust) for flexible data center cooling
- Comprehensive SNMP, syslog, and telemetry for monitoring and troubleshooting
- IEEE 802.1Q VLAN tagging and 802.1p QoS
- Jumbo frame support up to 9216 bytes
- Port mirroring (SPAN and ERSPAN) for traffic analysis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 1/10/25 Gigabit SFP28 ports
- 18x 40/100 Gigabit QSFP28 ports
- Switching capacity: 6 Tbps
- Forwarding rate: 4.75 bpps
- MAC address table: 92,000 entries
- Memory: 16 GB RAM, 128 GB SSD
- Routing protocols: OSPF, BGP, EIGRP, RIP-2, PIM-SM, PIM-SSM, MSDP, ECMP, MPLS
- Operating system: Cisco NX-OS
- Layer 2/Layer 3 managed switch
- Form factor: 1.5U rack-mountable
- Dimensions (H x W x D): 2 x 17.2 x 22.3 in (50.8 x 437.6 x 566.4 mm)
- Weight: 18.6 lb (8.4 kg) without power supplies or fans
- Power supplies: Dual hot-swappable (650W AC, 930W DC, or 1200W options)
- Typical power consumption: 150W (10G mode), 170W (25G mode)
- Cooling: 4 hot-swappable fans with front-to-back or back-to-front airflow
- Management: CLI, SNMP, REST API, NX-API
- Console: RJ-45, 1x USB 2.0, 1x management SFP+
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Storage temperature: -40°F to 158°F (-40°C to 70°C)
- Humidity: 5% to 95% non-condensing

FAQs

Q: What deployment scenarios is the N9K-C92300YC best suited for?
A: The N9K-C92300YC is designed for high-density 25G/100G data center fabrics, particularly spine-leaf architectures, cloud-scale environments, enterprise data centers, service provider hosting, and virtualized workloads requiring low latency and high throughput.

Q: Does this switch require a separate software license?
A: The N9K-C92300YC runs Cisco NX-OS Base software, which is included with the switch. Advanced features such as enhanced Layer 3 routing, VXLAN, or additional automation capabilities may require optional Essentials or Advantage licenses depending on your deployment needs.

Q: Can the SFP28 ports operate at both 10G and 25G speeds?
A: Yes, all 48 SFP28 ports support 1/10/25 Gigabit operation, providing flexible connectivity for mixed-speed environments. The 18 QSFP28 uplink ports can operate at either 40G or 100G speeds.

Q: What power supply options are available for this switch?
A: The N9K-C92300YC supports dual redundant hot-swappable power supplies, including 650W AC, 930W DC, and 1200W HVAC/HVDC options. Power supplies are sold separately and you can mix airflow directions to match your data center cooling design.

Q: Is this switch end-of-life?
A: Yes, Cisco announced end-of-sale for the N9K-C92300YC in January 2023. However, it remains a popular choice for refurbished deployments and continues to receive software support through its published end-of-life timelines. Contact us for current availability and support details.
