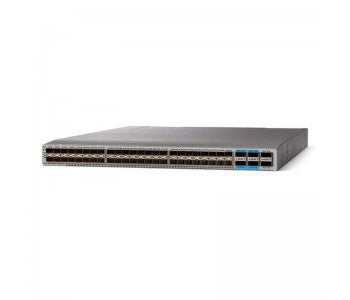

• Cisco N9K-C92160YC-X Nexus 9000 switch with 48x SFP28 ports and QSFP uplinks
1 1

Cisco

Cisco N9K-C92160YC-X | Nexus 9200 48-Port 1/10/25G Switch, 6x 40/100G QSFP28

N9K-C92160YC-X

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-C92160YC-X is a high-performance 1RU data center switch offering 48 ports of 1/10/25 Gigabit SFP28 connectivity and 6 flexible QSFP28 uplink ports supporting 40G or 100G speeds. Designed for enterprise data centers, cloud environments, and service provider hosting, this Nexus 9200 Series switch delivers 3.2 Tbps switching capacity with line-rate Layer 2 and Layer 3 performance. Supporting both Cisco NX-OS and ACI deployment modes, it provides advanced programmability, VXLAN capabilities, and robust telemetry for modern software-defined infrastructure.

Features

Layer 2 and Layer 3 switching with line-rate performance
- VXLAN with BGP EVPN for network overlay and multi-tenancy
- Virtual Routing and Forwarding (VRF) support up to 16,000 instances
- Cloud Scale ASIC technology for high throughput and low latency
- Built-in telemetry and streaming analytics for real-time network visibility
- Programmability via REST APIs, Python scripting, NETCONF/YANG
- MACsec encryption and TrustSec for enhanced security
- Quality of Service (QoS) with granular traffic classification and marking
- Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP)
- Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)
- Link Aggregation Control Protocol (LACP) for port channeling
- Access Control Lists (ACLs) for ingress and egress filtering
- IGMP snooping and Protocol Independent Multicast (PIM) support
- IPv6 ready with full dual-stack support
- Flexible NetFlow (FNF) for traffic analysis
- Cisco Data Center Network Manager (DCNM) compatibility
- In-Service Software Upgrade (ISSU) for non-disruptive maintenance
- Energy Efficient Ethernet for reduced power consumption

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Port Configuration: 48x 1/10/25 Gigabit Ethernet SFP28 ports, 6x 40/100 Gigabit Ethernet QSFP28 uplink ports (4 ports support 100G)
- Switching Capacity: 3.2 Tbps
- Forwarding Rate: 2.5 billion packets per second (Bpps)
- System Memory: 16 GB
- MAC Address Table: 92,000 entries
- Maximum VLANs: 4,096
- VRF Instances: Up to 16,000
- Uplink Flexibility: Ports 50 and 52 individually configurable as 1x 100G, 4x 10G, 4x 25G, 1x 40G, or 2x 50G
- Management Ports: 1x Gigabit RJ-45, 1x SFP, 1x RS-232 console, 1x USB Type A
- Power Supplies: 2x NXA-PAC-650W (redundant, hot-swappable)
- Fan Modules: 4x NXA-FAN-30CFM (hot-swappable, front-to-back or back-to-front airflow options)
- Form Factor: 1 Rack Unit (1RU)
- Dimensions (H x W x D): 1.72 x 17.3 x 22.5 inches (4.4 x 43.9 x 57.1 cm)
- Weight (without PSU/fans): 14.12 lb (6.4 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Operating Systems: Cisco NX-OS, Cisco ACI mode

FAQs

Q: What operating systems does the N9K-C92160YC-X support?
A: The switch supports both Cisco NX-OS for traditional data center deployments and Cisco ACI (Application Centric Infrastructure) mode for policy-driven automation and software-defined networking. This dual-mode capability provides deployment flexibility for different network architectures.

Q: Can the uplink ports be configured at different speeds?
A: Yes, the 6 QSFP28 uplink ports offer flexible configuration. All 6 ports support 40G operation, while 4 of the 6 ports are 100G-capable. Additionally, ports 50 and 52 can be individually configured as 1x 100G, 4x 10G, 4x 25G, 1x 40G, or 2x 50G using appropriate breakout cables and transceivers.

Q: Is this switch suitable for spine-leaf data center architectures?
A: Yes, the N9K-C92160YC-X is ideally suited as a leaf switch in modern spine-leaf topologies. With 48 access ports for server connectivity and high-speed 40G/100G uplinks to spine switches, it delivers the performance and scalability required for cloud-scale data center fabrics supporting VXLAN and BGP EVPN.

Q: Does the switch support VXLAN and network virtualization?
A: Yes, the switch fully supports VXLAN with BGP EVPN, VRF-Lite, and can function as a VXLAN Tunnel Endpoint (VTEP). It supports up to 16,000 VRF instances, making it highly suitable for multi-tenant environments, network segmentation, and overlay network deployments.

Q: What redundancy features are included?
A: The switch includes redundant hot-swappable power supply support (1+1 redundancy), hot-swappable fan modules, and supports Non-Stop Forwarding (NSF) and Stateful Switchover (SSO) for high availability in mission-critical environments.
