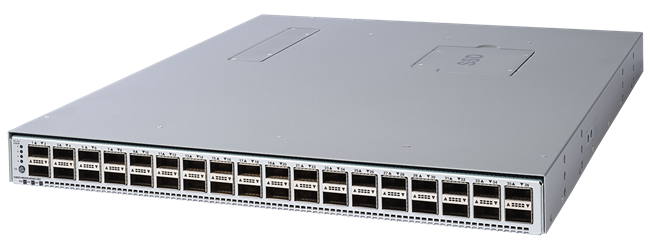

• Silver metal cisco nexus n9336c-se1 switch with 36 x 40 100g qsfp28 ethernet ports on the front edge
1 1

Cisco

Cisco N9336C-SE1 | Nexus 9300 36-Port 40/100G QSFP28 Switch, Base

N9336C-SE1

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 9300-SE1 36-port 40/100G QSFP28 switch is a 1RU fixed-port top-of-rack data centre switch built on the Cisco Silicon One ASIC, delivering 7.2 Tbps of bandwidth. All ports support breakout to 10G, 25G or 50G, making it suited to high-density leaf deployments and IP fabric for media. This Base licence variant runs NX-OS with open automation interfaces, and is a non-PoE platform with user-replaceable power supplies and fans.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2/3 scalability with intelligent buffering for virtualised and automated data centre environments
- Open NX-OS automation, NETCONF/RESTCONF/gNMI, Python API, TCL, NX-API
- PTP (IEEE-1588v2) and NBM media profiles for IP fabric for media
- POAP, GIR, and disruptive ISSU
- Software licensing tiers: Essentials, Advantage and Premier
- User-replaceable power supplies and fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 36 x 40/100-Gbps QSFP28 ports
- 1RU fixed-port top-of-rack form factor
- 7.2 Tbps bandwidth, over 2.6 Bpps
- Breakout supported on all ports (4x10G, 4x25G, 2x50G)
- Cisco Silicon One ASIC
- CPU: 6 cores; System memory: 32 GB default, expandable by 32 GB
- SSD: 128 GB; System buffer: 64 MB
- Management ports: 2 (1 RJ-45 and 1 SFP); 1 USB port; 1 RS-232 console port
- Maximum power: 450 W (AC/DC); typical power: 320 W
- Dimensions (H x W x D): 1.72 x 17.3 x 22.47 in (4.4 x 43.9 x 57.08 cm)
- Weight: 17.4 lb (7.9 kg) without power supplies or fans
- Operating temperature: 0 to 40°C
- Power supplies: 1 or 2 (NXA-PAC-750W, NXA-PAC-1100W, NXA-PDC-1100W, NXA-PHV-1100W)
- Fan: NXA-SFAN-35CFM (PI/PE)
- Non-PoE data centre switch
- Base licence

FAQs

Q: What port types and speeds does the N9336C-SE1 support?
A: It provides 36 QSFP28 ports that each support 40G or 100G. All ports support breakout modes of 4x10G, 4x25G and 2x50G.

Q: Which power supplies and fan modules are compatible?
A: It accepts one or two power supplies from the NXA-PAC-750W, NXA-PAC-1100W, NXA-PDC-1100W and NXA-PHV-1100W options, with the NXA-SFAN-35CFM fan module.

Q: Does this switch support PoE?
A: No. It is a non-PoE data centre switch designed for top-of-rack and leaf deployments.

Q: What operating system and automation options does it use?
A: It runs NX-OS and supports NETCONF, RESTCONF, gNMI, a Python API, TCL and NX-API, along with POAP for zero-touch provisioning.

Q: Is this switch suitable for media workflows?
A: Yes. It supports PTP (IEEE-1588v2) and NBM media profiles, making it suitable for IP fabric for media deployments.
