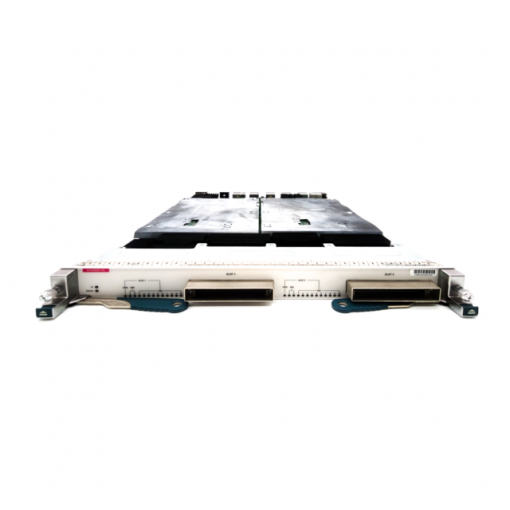

Cisco N7K-M202CF-22L | Nexus 7000 M2 2-Port 100G CFP Line Card, XL Option
SKU:N7K-M202CF-22L
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 7000 M2-Series 2-port 100 Gigabit Ethernet line card is built for large network cores, service provider networks and Internet peering environments. It also suits high-density data centre designs that need full Internet routing tables. It occupies one I/O slot in a Nexus 7000 chassis and uses CFP optics.
This XL Option version provides two 100GbE ports, and each port can also run at 10 or 40 GbE. Forwarding performance reaches 120 Mpps for Layer 2/3 IPv4 unicast and 60 Mpps for IPv6 unicast, with a 550 Gbps per direction fabric interface when used with Fabric-2 modules. In XL mode the card supports up to 1M IPv4 routes and 350K IPv6 routes, which requires the chassis-specific Nexus 7000 Scalable Feature License. Without it, the card runs in non-XL mode with 128K IPv4 and 64K IPv6 entries. MACsec (IEEE 802.1AE) is supported and requires a software licence to enable. Power draw is 690 W typical and 795 W maximum.
It is supported in Nexus 7000 4-, 9-, 10- and 18-slot chassis with Fabric-1 or Fabric-2 modules and SUP1, SUP2 or SUP2E supervisors, running NX-OS 6.1 or later. Compatible CFP optics include CFP-100G-SR10, CFP-100G-LR4, CFP-40G-SR4 and CFP-40G-LR4.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- XL mode enables a larger forwarding table for Internet-facing deployments with VRF and VDC support
- Non-blocking 100GbE performance on each port
- Cisco TrustSec hardware support (SGT/SGACL) with line-rate MACsec encryption
- Virtual Output Queuing with centralised arbitration for a lossless fabric
- Distributed forwarding with integrated forwarding engines
- MPLS forwarding in hardware
- IEEE 1588 Precision Time Protocol (PTP)
- Online insertion and removal (OIR) with ID beacon LED
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 2 x 100 Gigabit Ethernet (CFP optics)
- Port speeds: each port supports 10, 40 or 100 GbE operation
- Forwarding performance: 120 Mpps Layer 2/3 IPv4 unicast, 60 Mpps IPv6 unicast
- Fabric interface: 550 Gbps per direction with Fabric-2 modules, 230 Gbps per direction with Fabric-1 modules
- Memory: 2 GB DRAM
- IPv4 entries: 128K (non-XL), 1M (XL mode)
- IPv6 entries: 64K (non-XL), 350K (XL mode)
- ACL entries: 64K (non-XL), 128K (XL mode)
- MAC address entries: 128K
- VLANs: 16,384 bridge domains, 4096 simultaneous VLANs per VDC
- NetFlow entries: 512K
- Queues per port: ingress 8q2t, egress 1p7q4t
- Port buffers: 62.46 MB ingress, 31.23 MB egress per port
- Jumbo frames: up to 9216 bytes
- Power consumption: 690 W typical, 795 W maximum
- Dimensions (H x W x D): 4.4 x 38.9 x 55.6 cm, one I/O slot
- Weight: 7.7 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 90%, non-condensing
- Minimum software: Cisco NX-OS 6.1
- Environmental standards: NEBS Level 3
FAQs
Q: Does the XL option need a licence?
A: The card runs in non-XL mode without an extra licence. XL mode, with the full forwarding table, requires the chassis-specific Nexus 7000 Scalable Feature License: N7K-C7004-XL, N7K-C7009-XL, N7K-C7010-XL or N7K-C7018-XL. MACsec also requires a software licence to enable.
Q: Which Nexus 7000 chassis and supervisors does it support?
A: It is supported in Nexus 7000 4-, 9-, 10- and 18-slot chassis with Fabric-1 or Fabric-2 modules and SUP1, SUP2 or SUP2E supervisors. It requires NX-OS 6.1 or later.
Q: Which optics does it use?
A: It uses CFP optics. Supported parts include CFP-100G-SR10 (100 m on OM3, 150 m on OM4), CFP-100G-LR4 (10 km single-mode), CFP-40G-SR4 and CFP-40G-LR4 (10 km single-mode).
Q: How much power does the line card draw?
A: It draws 690 W typical and 795 W maximum per module, so the chassis power supplies must be sized to suit.
Q: How many of these cards fit in each chassis?
A: The maximum 100GbE port density is 32 ports in the 18-slot chassis, 16 in the 10-slot, 14 in the 9-slot and 4 in the 4-slot chassis.
