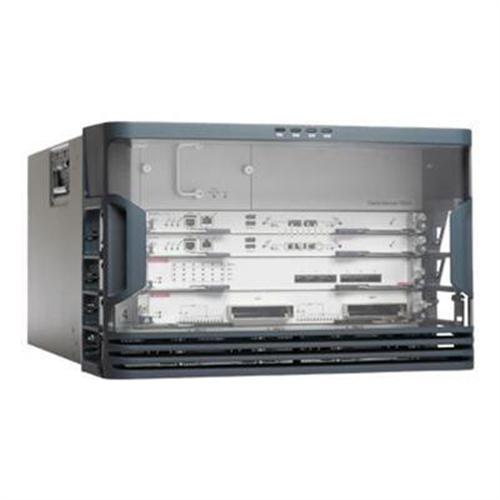

• Cisco N7K-C7004-S2 4-slot black silver rackmount server chassis
1 1

Cisco

Cisco N7K-C7004-S2 | 4-slot modular data center switch chassis, 1x Supervisor 2, 10/40/100G line-card support, NX-OS feature-licensed (per module), no power supplies

N7K-C7004-S2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Compact 4-slot modular chassis bundle with one Supervisor 2 installed. Build a resilient core/aggregation switch by adding your choice of 10/40/100GbE line cards and compatible AC or DC power supplies (not included). Supports optional second supervisor for high availability and stateful switchover.

Features

- 4-slot modular design for dense 10/40/100GbE aggregation and core
- Scalable architecture with broad line-card ecosystem
- Optional dual-supervisor architecture for nonstop operation
- NX-OS software with advanced data center switching and routing features
- Flexible power: supports AC or DC PSU options (purchased separately)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 4-slot modular data center switch chassis (19-inch rack-mount)
- Supervisors included: 1x Supervisor 2 (SUP2)
- Power supplies: Not included (add compatible AC or DC PSUs)
- Operating system: NX-OS (feature licensing per platform/module)
- Line-card support: 10/40/100GbE line cards (model-dependent)
- High availability: Supports dual supervisors for SSO/NSF
- Management: Out-of-band mgmt via supervisor management ports
- Accessories: Line cards, PSUs, rack kits, and optics sold separately

FAQs

Q: Does this bundle include power supplies?
A: No. Power supplies are not included; add compatible AC or DC units per your deployment requirements.

Q: What is the difference between Supervisor 2 and Supervisor 2E?
A: Supervisor 2E provides higher control-plane performance and larger scale compared to Supervisor 2, and is often preferred for newer/high-density line cards.

Q: Can I run the chassis with a single supervisor?
A: Yes. A single supervisor is supported; adding a second supervisor enables high availability with stateful switchover.

Q: Which line cards are supported?
A: Multiple 10/40/100GbE line-card families are supported; consult the official compatibility matrix for your NX-OS release and supervisor.

Q: Are rack rails and fan trays included?
A: Only the chassis and the listed supervisor are included. Rack kits, fan components if required, and other accessories may be sold separately.
