Cisco

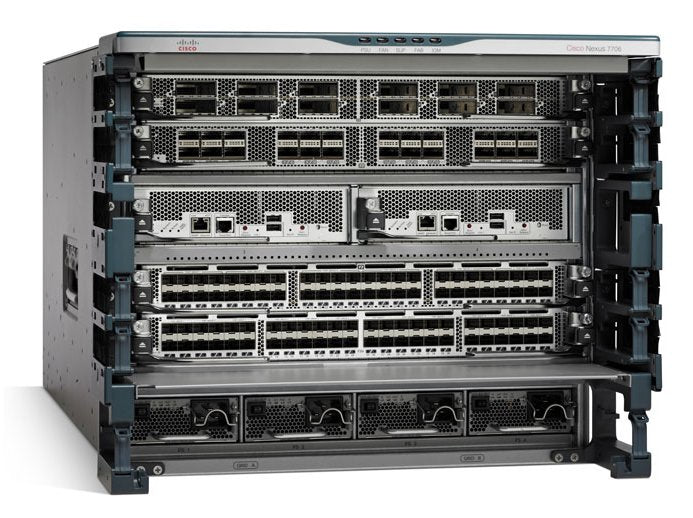

Cisco N77-C7706-B26S2E | 6-slot modular DC switch chassis | speeds: 1/10/40/100G (via line cards) | supervisor: 1x SUP2E | fabric: 6x Fabric-2 | uplinks: per line card | PoE: N/A | license: NX-OS feature-based | PSUs not included

N77-C7706-B26S2E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Preconfigured 6-slot data center switch chassis bundle with 1x Supervisor 2E and 6x Fabric-2 modules, ideal for high-density 10/40GbE deployments and compatible 100GbE line cards that operate with Fabric-2. Power supplies are not included.

Features

- Modular 6-slot chassis for scalable 1/10/40/100GbE aggregation
- Included SUP2E for proven control-plane performance on NX-OS
- Six Fabric-2 modules for resilient, high-throughput switching fabric
- Hot-swappable supervisors, fabrics, fans, and PSUs for serviceability
- Flexible line-card choices to match performance and port density needs
- Data center feature set with NX-OS (e.g., vPC, FabricPath, VXLAN with appropriate modules/licenses)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: 6-slot modular data center Ethernet switch chassis (7700 family)
- Line-card slots: 6
- Supervisor slots: 2; included: 1x Supervisor 2E (SUP2E)
- Fabric module slots: 6; included: 6x Fabric-2 modules
- Supported interface speeds: 1/10/40/100GbE via compatible line cards
- Operating system: NX-OS (feature licenses may be required for advanced capabilities)
- Redundancy: supports redundant supervisors, fabric modules, and power supplies
- Cooling: hot-swappable fan trays (chassis-level cooling)
- Power: hot-swappable PSU bays; power supplies not included (AC/DC options supported)
- Management: out-of-band Ethernet and console via supervisor; NX-OS CLI/API
- Fabric compatibility: Fabric-2 suitable for F2e generation line cards; use Fabric-3 for F3 line cards and full 100G performance
- Rack mounting: standard 19-inch rack-mountable chassis

FAQs

Q: What is included in this bundle?
A: The chassis, 1x Supervisor 2E (SUP2E), and 6x Fabric-2 modules. No line cards, power supplies, transceivers, or licenses are included.

Q: Does it include power supplies?
A: No. Compatible 7700-series AC or DC power supplies must be purchased separately.

Q: Can I use F3 line cards with Fabric-2?
A: F3 line cards require Fabric-3 for full performance. Mixing F3 with Fabric-2 is not recommended.

Q: Is a second supervisor required?
A: Not required, but a second supervisor is recommended for high availability.

Q: What licensing is needed?
A: NX-OS feature licenses may be required depending on the L2/L3 and DC features you plan to use.
