Cisco

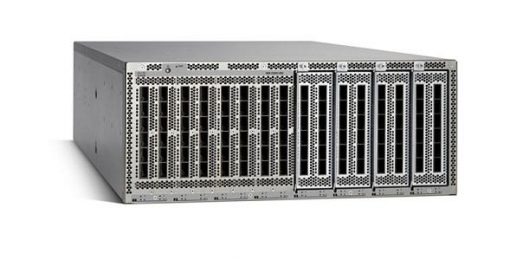

Cisco N6004-B-24Q | Nexus 6004 24-Port 40G QSFP+ Switch, 6 PSU, 4 Fan

SKU:N6004-B-24Q

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 6004 is a 4RU Extensible Fixed data centre switch from the Nexus 6000 Series, built for direct-attach 10/40GE access layers, high-density fabric extender aggregation, leaf-and-spine designs and 40G FCoE aggregation. This bundle gives you a ready-to-run chassis with 24 x 40 Gigabit Ethernet QSFP+ ports, all FCoE-capable.

The bundle comes with six power supplies and four fan modules. It has eight line-card expansion module slots, so you can start with 24 ports and scale up to 96 x 40GE/FCoE ports. Layer 2 and Layer 3 hardware forwarding runs at 7.68 Tbps with cut-through latency of around 1 microsecond and line-rate throughput on all ports. Ports can also run at 10G using a QSFP breakout cable, or at 1G using a QSA adapter. There is no PoE. Typical AC system power is 2800 W, with a maximum of 3300 W. The switch runs Cisco NX-OS 7.0(3)N1(1) or later. Layer 3 Base and Layer 3 Enterprise (LAN) licences are available, along with optional licences for Enhanced Layer 2/FabricPath, FCoE NPV and storage protocols.

Expansion options include the N6004-M12Q 12-port 40GE/FCoE module, the N6004X-M20UP 20-port unified module and the N5696-M4C 4-port 100GE module. It also supports Nexus 2200 and B22 blade fabric extenders.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Eight hot-swappable expansion slots allow a low-cost start with growth to 96 x 40G ports
- FCoE (FC-BB-5) support on any 10/40GE port with a Storage Services licence
- Cisco FabricPath, vPC, Adapter-FEX and VM-FEX support
- Supports Cisco Nexus 2200 and B22 blade fabric extenders
- Hot-swappable PSUs, fan modules and expansion modules with N+1 / N+N power redundancy and N+1 fan redundancy
- Layer 3 routing including static, RIPv2, EIGRP, OSPFv2, BGP and IS-IS, with advanced protocols licensed
- Data Center Bridging with PFC, ETS and DCBX
- ISSU for Layer 2, POAP, Python/Tcl scripting and NETCONF/XML

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 40 Gigabit Ethernet QSFP+ (FCoE-capable)
- Expansion slots: 8 LEM slots, scalable to 96 x 40GE/FCoE ports
- Forwarding performance: Layer 2 and Layer 3 hardware forwarding at 7.68 Tbps
- Latency: approximately 1 microsecond (cut-through)
- Throughput: line-rate on all ports
- Buffer: 25 MB per three 40GE QSFP interfaces
- MAC addresses: up to 256,000
- Port speed options: 10GE via QSFP breakout cable, 1GE via QSA adapter
- Jumbo frames: up to 9216 bytes
- ECMP: up to 64 ways
- PoE: none
- Power supplies: 6 hot-swappable, 3+3 grid redundancy
- Input voltage: 94 to 240 VAC, 47 to 63 Hz
- Typical operating power (AC): 2800 W
- Maximum power (AC): 3300 W
- PSU efficiency: 98% (50 to 100% load)
- Heat dissipation: 11260 BTU/hr (3300 W)
- Dimensions (H x W x D): 17.7 x 43.9 x 76.2 cm
- Rack height: 4RU
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Humidity: 5 to 95% non-condensing
- Airflow: front-to-back or back-to-front PSU and fan options
- Software: Cisco NX-OS 7.0(3)N1(1) or later

FAQs

Q: Which licences does this switch use?
A: The default system software provides Layer 2 and base Layer 3 features. Layer 3 Base (N6K-BAS1K9) and Layer 3 Enterprise LAN (N6004-LAN1K9) licences add routing protocols, and optional licences cover Enhanced Layer 2/FabricPath, FCoE NPV, VM-FEX and storage protocols.

Q: What power supplies does it use?
A: It uses six hot-swappable power supplies in a 3+3 grid redundant arrangement. Supported options are the NXA-PAC-1100W (front-to-back), the NXA-PAC-1100W-B (back-to-front) and the N55-PDC-1100W DC unit.

Q: Which optics and cables work with the 40G ports?
A: Supported genuine parts include QSFP-40G-SR4, QSFP-40G-CSR4, QSFP-40G-LR4, QSFP-40GE-LR4, QSFP-40GE-ER4, QSFP-40G-SR-BD and QSFP-H40G-CU direct-attach cables. QSFP 4x10G breakout cables are also supported.

Q: Can I expand beyond 24 ports?
A: Yes. The eight expansion slots accept the N6004-M12Q 12-port 40GE/FCoE module, the N6004X-M20UP 20-port unified module and the N5696-M4C 4-port 100GE module, for up to 96 x 40GE ports.

Q: Can the 40G ports run at lower speeds?
A: Yes. A QSFP breakout cable provides 10G connections, and a QSFP-to-SFP/SFP+ adapter (QSA) provides 1G.

Q: What software version is required?
A: This switch requires Cisco NX-OS 7.0(3)N1(1) or later.
