Cisco N5K-C5696Q | Nexus 5696Q 8-Slot 40G Chassis Switch, Base Chassis
SKU:N5K-C5696Q
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 5696Q is a 4RU modular data centre switch from the Nexus 5600 Series, built for high-density 10/40GbE aggregation, server access and leaf roles. It also suits FCoE and Fibre Channel unified fabric deployments and FEX-based top-of-rack architectures.

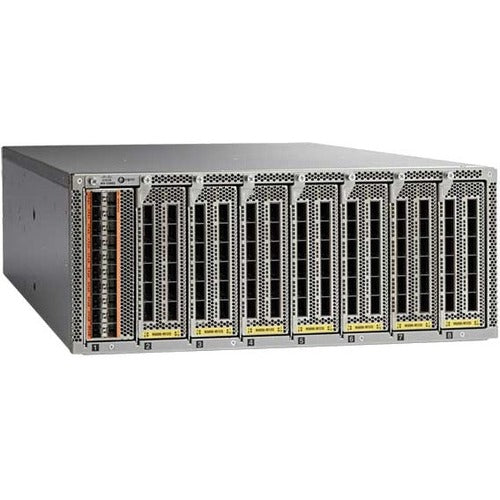

This N5K-C5696Q is the base chassis with 8 line-card expansion module (LEM) slots, supporting up to 96 x 40GbE QSFP+ / FCoE ports with eight 12-port LEMs. Using QSFP breakout cables, it scales to up to 384 x 10GbE. It forwards Layer 2 and Layer 3 traffic at line rate, with 7.68 Tbps forwarding, 5713 mpps and roughly 1 microsecond cut-through latency. It has no PoE, and LEMs, power supplies and fans are ordered separately. Cisco NX-OS ships with a base-level Layer 3 feature set, with optional Layer 3 Base (N56-BAS1K9) and Layer 3 Enterprise (N56-LAN1K9) licences available.
It works with the N5696-M12Q 12-port 40GbE LEM, the N5696-M20UP 20-port unified LEM and the N5696-M4C 4 x 100GE LEM, and supports up to 48 Nexus 2200/2300 fabric extenders at Layer 2.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- High 40GbE port density in a compact 4RU chassis
- Hot-swappable expansion modules, power supplies and fan modules
- Port-side intake or fan-side intake airflow options for hot and cold aisle alignment
- Layer 2 and Layer 3 wire-speed forwarding with FabricPath, vPC, Adapter FEX and VM-FEX support
- FCoE and native Fibre Channel via the unified port LEM with Storage Protocols Services licensing
- RoCE support using Data Center Bridging (PFC/DCBX)
- Management via Cisco NX-OS and Cisco DCNM / Prime DCNM
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Chassis: 4RU modular with 8 x LEM slots
- 40GbE ports: up to 96 x 40GbE QSFP+ / FCoE (8 x N5696-M12Q LEMs)
- 10GbE ports: up to 384 x 10GbE via QSFP breakout cables
- Unified LEM: N5696-M20UP, 1/10GbE SFP+ and 8/4/2G FC, up to 160 ports
- Forwarding capacity: 7.68 Tbps Layer 2/3
- Forwarding rate: 5713 mpps (64-byte packets)
- Latency: approximately 1 microsecond (cut-through)
- Buffer: 25 MB per 12 x 10GbE SFP+ interfaces or 3 x 40GbE QSFP interfaces
- MAC/ARP table: up to 256,000 combined entries
- VLANs: up to 4000 (4096 for Layer 3)
- EtherChannel: up to 16 ports per channel
- Jumbo frames: up to 9216 bytes
- IPv4/IPv6 host prefixes: up to 32,000 IPv4 and 8000 IPv6, ECMP up to 64 ways
- VRF entries: 4000
- Fabric extenders: up to 48 FEX (Layer 2), 24 FEX (Layer 3)
- Power supply slots: 6 hot-swap, N+N redundancy, minimum 3 PSUs to operate
- Fan modules: 4 hot-swap, N+1 redundancy
- PoE: None
- Dimensions (H x W x D): 17.7 x 43.9 x 76.2 cm
- Weight: 111 lb (3 power supplies, 4 fans, 2 LEMs)
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Humidity: 5 to 95% (non-condensing)
- Altitude: 0 to 3000 m
FAQs
Q: Which licences are available for the 5696Q?
A: Cisco NX-OS includes a base-level Layer 3 feature set by default. Optional licences include Layer 3 Base N56-BAS1K9, Layer 3 Enterprise N56-LAN1K9, Enhanced Layer 2 (FabricPath) N5696-EL2-SSK9, FCoE NPV N56-FNPV-SSK9 and VM-FEX N56-VMFEX9.
Q: What power supplies does the chassis use?
A: It has 6 hot-swap power supply slots with N+N redundancy and needs at least 3 PSUs to operate. Options are N55-PAC-1100W / NXA-PAC-1100W (AC), N55-PDC-1100W (DC) and NXA-PHV-1100W (HVAC/HVDC), each rated at a maximum of 1100W.
Q: Which line-card expansion modules work with this chassis?
A: It supports the N5696-M12Q (12 x 40GbE QSFP+), N5696-M20UP (20-port unified 1/10GbE SFP+ and 8/4G FC) and N5696-M4C (4 x 100GE) modules.
Q: How does this SKU differ from a fully populated system?
A: N5K-C5696Q is the base chassis with 8 LEM slots. LEMs, power supplies and fan modules are ordered separately.
Q: Can it connect to fabric extenders?
A: Yes. It supports Cisco Nexus 2200 and 2300 fabric extenders, up to 48 FEX at Layer 2 and 24 FEX at Layer 3.
