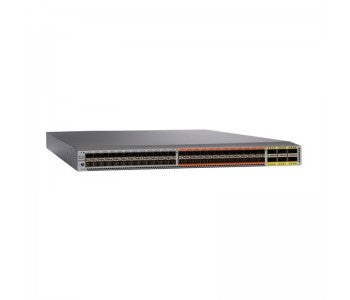

Cisco N5K-C5672UP | Nexus 5672UP 48-Port 10G Switch, 16 Unified FC, 6x 40G
SKU:N5K-C5672UP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Nexus 5672UP is a 1RU Layer 2/3 top-of-rack switch from the Nexus 5600 platform, built for traditional and large-scale virtualised data centres that need converged LAN and SAN connectivity. It runs Cisco NX-OS and suits server access deployments that mix Ethernet, FCoE and native Fibre Channel.
The front panel provides 48 fixed 1/10 Gigabit Ethernet SFP+ ports, 32 standard and 16 unified, plus 6 x 40 Gigabit Ethernet QSFP+ ports. The unified ports support 2/4/8G Fibre Channel, 10GbE and FCoE. Forwarding capacity is 1.44 Tbps at 1071 mpps with roughly 1 microsecond cut-through latency, and VXLAN bridging and routing run at line rate on all ports. The 40G ports can be converted to 10G with QSFP+ breakout cables, giving up to 72 x 10GbE interfaces. There is no PoE.
Software is licensed in tiers, with Layer 3 Base Services and Layer 3 Enterprise Services available as optional NX-OS licences. The switch supports Nexus 2200 and 2300 fabric extenders, up to 24 per switch. It works with 1/10G SFP and SFP+ optics, 2/4/8G Fibre Channel SFPs and 40G QSFP+ modules such as QSFP-40G-SR4 and QSFP-40G-LR4.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Wire-speed Layer 2 and Layer 3 nonblocking switching on all ports
- Unified ports for LAN and SAN convergence with Fibre Channel and FCoE
- VXLAN bridging and routing at line rate, plus NVGRE support
- Cisco FabricPath, vPC, Adapter FEX and VM-FEX support
- Fabric extender support for Nexus 2200 and 2300 platforms
- RoCE over DCB with PFC and DCBX
- Programmability and visibility through NX-OS
- Port-side and fan-side intake airflow options for hot and cold aisle alignment
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Fixed ports: 48 x 1/10 Gigabit Ethernet SFP+
- Unified ports: 16 of the 48 support 2/4/8G Fibre Channel, 10GbE and FCoE
- Uplinks: 6 x 40 Gigabit Ethernet QSFP+ (Ethernet and FCoE)
- Forwarding capacity: 1.44 Tbps Layer 2/3, 1071 mpps (64-byte packets)
- Latency: approximately 1 microsecond, cut-through
- Buffer: 25 MB per 12 x 10G SFP+ interfaces
- MAC/ARP entries: up to 256,000 combined
- Breakout: 40G ports convert to 10G via QSFP+ breakout cable, up to 72 x 10GbE
- Fabric extenders: Nexus 2200 and 2300, up to 24 (Layer 2)
- VLANs: up to 4000 (Layer 2), up to 4096 (Layer 3 features)
- Jumbo frames: up to 9216 bytes on all ports
- EtherChannel: up to 16 ports per channel
- IPv4/IPv6 host prefixes: up to 32,000 IPv4 and 8000 IPv6
- VRF entries: 4000
- ECMP: up to 64 ways
- PoE: none
- Power supplies: 2 x 1+1 redundant hot-swappable 1100 W
- Power consumption (N55-PAC-1100W): typical 650 W, maximum 1100 W
- Fans: 3 hot-swappable modules, 2+1 redundancy
- Airflow: port-side intake or fan-side intake options
- Dimensions (H x W x D): 4.4 x 43.9 x 76.2 cm (1RU)
- Weight: 32 lb with 2 power supplies
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% noncondensing
- Regulatory: CE, UL/CSA/EN/IEC 60950-1, AS/NZS 60950-1, Class A EMC, RoHS 6
FAQs
Q: Which software licences does this switch use?
A: It runs Cisco NX-OS with optional licence tiers. Layer 3 Base Services (N56-BAS1K9) covers static routing, OSPF, HSRP and VRF-lite. Layer 3 Enterprise Services (N56-LAN1K9) adds BGP, IS-IS and VXLAN flood and learn, and requires the Base licence.
Q: How is this different from the Nexus 5672UP-16G?
A: This model has 32 standard 10G SFP+ ports plus 16 unified ports supporting 2/4/8G Fibre Channel. The 5672UP-16G has 24 unified ports and supports 16G Fibre Channel.
Q: What power does it need?
A: It uses two 1+1 redundant hot-swappable 1100 W power supplies. AC, DC and high-voltage HVAC/HVDC options are available, including N55-PAC-1100W and N55-PDC-1100W. It does not provide PoE.
Q: Which optics and modules does it work with?
A: The SFP+ ports accept 1/10G SFP and SFP+ optics such as GLC-SX-MMD and GLC-LH-SMD. The unified ports accept 2/4/8G Fibre Channel SFPs. The QSFP+ ports accept 40G modules such as QSFP-40G-SR4 and QSFP-40G-LR4, or QSFP breakout cables.
Q: Which fan modules and airflow options are available?
A: N6K-C6001-FAN-F provides fan-side intake and N6K-C6001-FAN-B provides port-side intake, so you can match the airflow to your hot and cold aisle layout.
Q: Can it connect fabric extenders?
A: Yes. It supports Nexus 2200 and 2300 series fabric extenders, up to 24 per switch.
