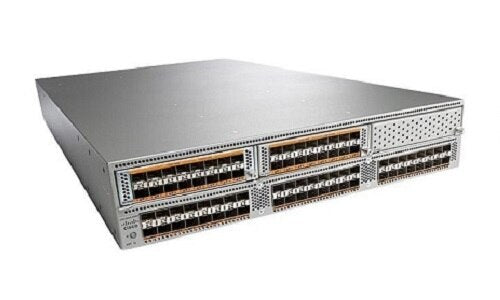

Cisco N5K-C56128P | Nexus 5600 48-Port 10G Switch, 4x 40G QSFP+, 2RU

SKU:N5K-C56128P

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 56128P is a 2RU fixed-configuration Layer 2/3 data centre switch from the Nexus 5600 family. It is built for top-of-rack and middle-of-row deployments, giving virtualised and converged LAN/SAN environments 10G server access with 40G uplinks.

The base chassis provides 48 fixed 1/10GbE SFP+ ports and 4 fixed 40GbE QSFP+ ports, with two Generic Expansion Module (GEM) slots. Each GEM adds 24 SFP+ unified ports and 2 x 40G QSFP+ ports. Forwarding bandwidth is 2.56 Tbps at 1904 mpps (64-byte packets), with cut-through latency of about 1 microsecond. It supports up to 256,000 combined MAC and ARP entries and jumbo frames up to 9216 bytes on all ports. There is no PoE.

It runs Cisco NX-OS, with Layer 3, FabricPath and storage protocol functions enabled through add-on licences. Power comes from four 2+2 redundant hot-swappable 1100W supplies and four 3+1 redundant hot-swappable fans, with port-side or fan-side intake airflow options. It supports Nexus 2200 and 2300 fabric extenders, up to 24 per switch.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Layer 2 and Layer 3 switching on all ports
- Native 40GbE on QSFP+ ports with FCoE support and 40G to 4x10G breakout
- VXLAN bridging and routing at line rate on all ports, plus NVGRE support
- FabricPath, vPC, vPC+, Adapter-FEX and Data Center VM-FEX
- FCoE and 2/4/8G Fibre Channel on expansion module unified ports
- Nexus 2200/2300 fabric extender support for up to 24 FEXs
- RoCE over DCB with DCBX and PFC
- Choice of port-side or fan-side intake airflow
- NX-OS with programmability and visibility features

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Fixed ports: 48 x 1/10GbE SFP+
- Fixed uplinks: 4 x 40GbE QSFP+
- Expansion: 2 x Generic Expansion Module (GEM) slots
- GEM option: 24 SFP+ unified ports plus 2 x 40GbE QSFP+ per module
- Forwarding bandwidth: 2.56 Tbps Layer 2/3
- Forwarding rate: 1904 mpps (64-byte packets)
- Latency: approximately 1 microsecond, cut-through
- Buffer: 25 MB per 12 x 10GbE SFP+ interfaces
- MAC/ARP table: up to 256,000 combined entries
- VLANs: up to 4000
- EtherChannel: up to 16 ports per EtherChannel
- Jumbo frames: up to 9216 bytes
- Layer 3 scale: 32,000 IPv4 and 8000 IPv6 host prefixes, ECMP up to 64 ways
- QoS: 8 unicast and 8 multicast queues per port
- Power supplies: 4 x 2+2 redundant hot-swappable 1100W
- Cooling: 4 x 3+1 redundant hot-swappable fans
- Form factor: 2RU
- Dimensions (H x W x D): 8.8 x 43.9 x 76.2 cm (3.5 x 17.3 x 30 in)
- Weight: 60 lb with 2 expansion modules and 4 power supplies
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- PoE: not supported

FAQs

Q: Does this switch need licences for Layer 3 routing?
A: The base NX-OS image covers Layer 2 switching and basic management. Layer 3 Base (N56-BAS1K9) and Layer 3 Enterprise (N56-LAN1K9) are add-on licences, as are FabricPath, storage protocols and VM-FEX.

Q: What power supplies does it use?
A: It takes four 2+2 redundant hot-swappable 1100W supplies: N55-PAC-1100W, N55-PDC-1100W, NXA-PAC-1100W or NXA-PHV-1100W. AC input is 94 to 264 VAC, and the DC option is -40 to -72 VDC.

Q: Which optics and modules does it work with?
A: It supports 1G/10G SFP+ optics and DAC/AOC cables, plus 40G QSFP+ SR4, CSR4, LR4 and BiDi optics. The CVR-QSFP-SFP10G adapter and QSFP breakout cables are also supported.

Q: Can I add more ports?
A: Yes. The two GEM slots accept expansion modules that each add 24 SFP+ unified ports and 2 x 40G QSFP+ ports. These modules work in the 56128P chassis only.

Q: Does it provide PoE?
A: No. This is a data centre switch and does not supply Power over Ethernet.

Q: Can it connect fabric extenders?
A: Yes. It supports Nexus 2200 and 2300 fabric extenders, up to 24 FEXs in a Layer 2 configuration.
