Cisco

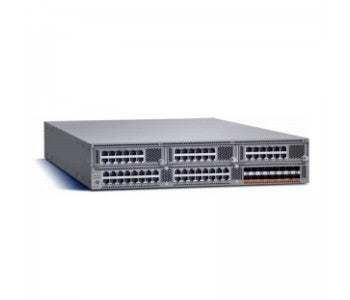

Cisco N5K-C5596T-FA | Nexus 5596T 32x 10GBASE-T + 16x SFP+ Switch, Back-to-Front

SKU:N5K-C5596T-FA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 5596T is a 2RU data-centre access switch from the Nexus 5500 platform. It suits top-of-rack, middle-of-row and end-of-row deployments, where 10GBASE-T copper and SFP+ fibre server connections are aggregated on one chassis, with unified-fabric (LAN/SAN/FCoE) consolidation as an option.

This SKU provides 32 fixed 1/10GBASE-T ports and 16 fixed 1/10G SFP+ ports, with three expansion slots to grow to up to 96 ports. Layer 2 hardware forwarding is 1920 Gbps or 1428 mpps, and Layer 3 performance reaches 160 Gbps or 240 mpps. It has back-to-front airflow, four fan modules and two 1100W AC power supplies in a 1:1 redundant configuration. It is non-PoE. Base Layer 2 NX-OS features are included, and optional licences add Layer 3, FabricPath, FCoE NPV, VM-FEX and Storage Protocols Services.

The SFP+ ports accept Cisco SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, FET-10G, SFP+ Twinax cables and 1G SFPs such as GLC-T and GLC-SX-MM. Expansion modules include the N55-M16P, N55-M16UP, N55-M8P8FP, N55-M4Q and N55-M12T, plus the N55-M160L3 Layer 3 module. The switch supports up to 24 Nexus 2000 Series Fabric Extenders.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-latency cut-through design with line-rate throughput on all ports
- Unified ports on the SFP+ ports: 1/10GE, FCoE or native Fibre Channel
- Cisco FabricPath, vPC and Enhanced vPC, Adapter FEX and VM-FEX
- Data Center Bridging (PFC, ETS, DCBX) and FCoE (FC-BB-5)
- Hot-swappable power supplies, fan modules and expansion modules, accessible from the front panel
- Ports and power connections at the rear, matching server layouts
- Cisco NX-OS with NETCONF XML interface, SNMPv1/v2/v3, RBAC, Smart Call Home and GOLD
- Extendable with Cisco Nexus 2000 Series Fabric Extenders
- ISSU for Layer 2 high availability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product code: N5K-C5596T-FA
- Form factor: 2RU
- Fixed ports: 32 x 1/10GBASE-T and 16 x 1/10G SFP+
- Expansion slots: 3
- Maximum ports: up to 96 with expansion modules
- Layer 2 hardware forwarding: 1920 Gbps or 1428 mpps
- Layer 3 performance: up to 160 Gbps or 240 mpps
- MAC address table entries: 32,000
- VLANs: up to 4096
- Jumbo frames: up to 9216 bytes
- Layer 3 routing: up to 8000 prefixes, 16000 IPv4 and 8000 IPv6 host entries, 1000 VRFs
- ACL entries: 1664 ingress and 2048 egress
- Fabric extenders supported: up to 24
- Power supplies: 2 x 1100W AC, 1:1 redundant, hot-swappable
- Fan modules: 4, N:1 redundancy
- Airflow: Back-to-Front
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Typical operating power: 900W
- Maximum power: 1050W (with 3x 10GBASE-T expansion module)
- Dimensions (H x W x D): 8.8 x 43.9 x 74.9 cm (3.47 x 17.3 x 29.5 in)
- Weight: 21.55 kg (47.5 lb) with two PSUs, 3 expansion modules and 4 fans
- PoE: None

FAQs

Q: Does this switch need a licence?
A: Base Layer 2 NX-OS features are included. Layer 3 features, FabricPath, VM-FEX, FCoE NPV and Storage Protocols Services need optional licences such as N55-BAS1K9, N55-LAN1K9 and N5596-EL2-SSK9.

Q: Does it support PoE?
A: No. It is a non-PoE data-centre switch. Power comes from two 1100W AC supplies in a 1:1 redundant configuration, taking 100 to 240 VAC.

Q: Which optics and modules does it work with?
A: The SFP+ ports take Cisco SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, FET-10G, SFP+ Twinax and 1G SFPs such as GLC-T and GLC-SX-MM. The three expansion slots accept the N55-M16P, N55-M16UP, N55-M8P8FP, N55-M4Q and N55-M12T modules.

Q: Can it run Fibre Channel or FCoE?
A: Yes. The SFP+ ports can be configured as 1/10GE, FCoE or native Fibre Channel at 8, 4, 2 or 1 Gbps. Fibre Channel and FCoE features require the Storage Protocols Services licence.

Q: How does this SKU differ from other 5596 variants?
A: This SKU has 32 fixed 10GBASE-T ports plus 16 fixed SFP+ ports, back-to-front airflow and two 1100W AC power supplies. Variants differ in port type, airflow direction and power supply type.
