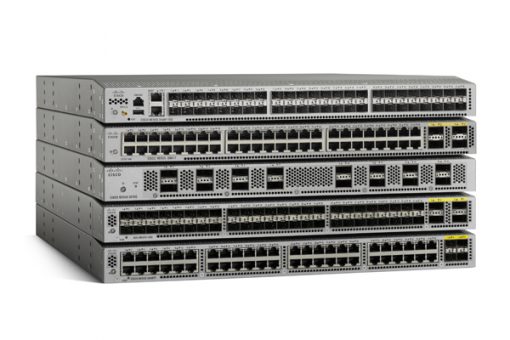

Cisco N3K-C3524P-10G | Nexus 3500 24-Port 10G SFP+ Switch, Layer 2/3

SKU:N3K-C3524P-10G

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 3524 is a fixed 1RU data centre switch from the Nexus 3500 series, built around Cisco's Algo Boost ASIC for line-rate Layer 2 and Layer 3 switching with latency below 200 ns. It suits ultra-low-latency data centre and financial trading networks, high-performance computing and big-data top-of-rack or access deployments that need line-rate 10 GbE.

This SKU provides 24 fixed SFP+ ports that run at 1 or 10 Gbps, licensed for 24 ports and upgradable to 48 by licence. It delivers 480 Gbps of switching capacity and a 360 Mpps forwarding rate, with 4 GB of system memory and 2 GB of boot flash. Two redundant hot-swappable power supplies and a 3+1 hot-swappable fan arrangement support continuous operation, with a typical draw of 142 W and a maximum of 245 W. Two 10/100/1000 management ports, an RS-232 console, a USB port and a 1-PPS timing port are provided.

The switch runs Cisco NX-OS. The default image gives a full Layer 2 feature set, the Base licence adds Layer 3 routing and multicast, the LAN Enterprise licence adds OSPFv2, EIGRP, BGP and VRF-Lite, and the Algo Boost licence adds NAT and warp mode. It accepts 1G and 10G SFP and SFP+ transceivers, including GLC-TE, GLC-SX-MM and GLC-LH-SM for 1G links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Algo Boost ASIC with no PHY chips, giving sub-200 ns Layer 2 and 3 latency
- Three configurable latency modes, including normal and warp modes
- Cisco NX-OS with a full Layer 2 feature set including VLAN, 802.1Q, LACP, MSTP/RSTP, UDLD and vPC
- Layer 3 routing with HSRP/VRRP, 24-way ECMP and 1024 Layer 3 interfaces
- Advanced buffer monitoring, SPAN and ERSPAN
- IEEE 1588 PTP support
- Hot-swappable redundant power supplies and fans with a choice of airflow direction

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Fixed ports: 24 SFP+ (1 or 10 Gbps), upgradable to 48 ports by licence
- Management ports: 2 x 10/100/1000 Mbps
- Console: 1 x RS-232 serial, 1 x USB port
- Timing: 1 x 1-PPS port
- Switching capacity: 480 Gbps
- Forwarding rate: 360 Mpps
- Latency: below 200 ns for Layer 2 and 3 switching
- Jumbo frames: up to 9216 bytes MTU
- System memory: 4 GB
- Boot flash: 2 GB
- Buffer: 18 MB total, 6 MB shared among 16 ports
- MAC addresses: 64,000 (normal mode), 8,000 (warp mode)
- IPv4 unicast routes: 24,000 (normal), 4,000 (warp)
- VLANs: 4096
- ACL entries: 4096
- Power supplies: 2 redundant, AC or DC, 100 to 240 VAC, 50 to 60 Hz
- Typical power: 142 W, maximum power: 245 W
- Cooling: 4 hot-swappable fans (3+1 redundant)
- Dimensions (H x W x D): 4.36 x 43.9 x 46.7 cm
- Weight: 7.9 kg
- Operating temperature: 0 to 40 C
- Relative humidity (operating): 10 to 85% non-condensing

FAQs

Q: Does this switch need a licence to route at Layer 3?
A: The default NX-OS image provides a full Layer 2 feature set. The Base licence adds Layer 3 routing and multicast, and the LAN Enterprise licence (N3524-LAN1K9, requires Base) adds OSPFv2, EIGRP, BGP and VRF-Lite.

Q: Can the port count be increased beyond 24?
A: Yes. This SKU is licensed for 24 SFP+ ports and can be upgraded to 48 ports by licence.

Q: What power does it need?
A: It uses two redundant hot-swappable power supplies, AC or DC, running on 100 to 240 VAC at 50 to 60 Hz. Typical draw is 142 W and maximum is 245 W.

Q: Which transceivers does it accept?
A: The SFP+ ports take 1G and 10G SFP and SFP+ transceivers, including GLC-TE, GLC-SX-MM and GLC-LH-SM for 1G links.

Q: What is warp mode?
A: Warp mode is a lower-latency operating mode on the Nexus 3500 platform. It requires the Algo Boost licence and reduces table sizes, for example 8,000 MAC addresses instead of 64,000.
