Cisco N3K-C3432D-S-OE | Nexus 3400 32-Port 400G QSFP-DD Switch, Open Environment
SKU:N3K-C3432D-S-OE
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

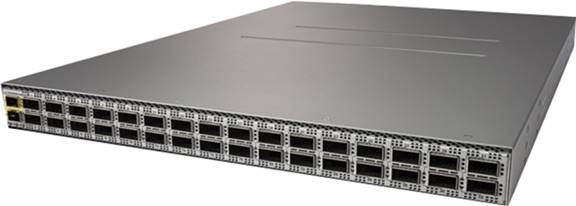

The Nexus 3400-S is a 1RU data centre switch with 32 fixed 400G QSFP-DD ports, built for high-density leaf and spine switching in scale-out data centre fabrics. It suits big data and low-latency applications, and can be used for network analytics or tap and SPAN aggregation with Cisco Nexus Data Broker. This is the Open Environment (-OE) variant.
The switch delivers 25.6 Tbps of switching capacity with wire-rate Layer 2 and Layer 3 forwarding on every port, a 70 MB buffer, 16 GB DRAM and a four-core CPU. Two additional 100/1000 Mbps SFP ports sit on the front panel, alongside RJ45 and SFP management ports, an RS-232 console and a USB port. Breakout modes support 2x200G, 4x100G, 4x50G, 4x25G and 8x50G connections.
The QSFP-DD ports are backward compatible with QSFP56, QSFP28 and QSFP+ optics, and AOC and DAC cabling is supported for 10, 25, 40, 50, 100 and 400G. Two redundant hot-swappable AC power supplies and six hot-swappable fans (5+1 redundant) are fitted, with forward or reverse airflow depending on the modules used. Cisco NX-OS provides tiered licensing, with advanced Layer 3 features and telemetry unlocked by add-on licences.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Wire-rate Layer 2 and Layer 3 switching on all ports
- Breakout support for 2x200G, 4x100G, 4x50G, 4x25G and 8x50G connections
- Cisco NX-OS with NX-API, Linux containers, XML/JSON APIs and Python programmability
- Virtual Port Channel (vPC) and 512-way ECMP
- POAP touchless provisioning, EEM and Python automation
- Buffer monitoring, per-flow analytics and drop-packet forensics
- Full Layer 3 protocol suite including BGP, OSPF, EIGRP, RIPv2 and IS-IS
- Hot-swappable power supplies and fans, with hot and cold patching
- Cisco Nexus Data Broker support for tap and SPAN aggregation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 32 fixed 400G QSFP-DD
- Additional ports: 2x 100/1000 Mbps SFP (front ports 33 and 34)
- Management ports: 1x RJ45, 1x SFP, 1x RS-232 console, 1x USB
- Switching capacity: 25.6 Tbps
- Forwarding rate: 7.2 Bpps ingress, 10 Bpps egress
- Buffer size: 70 MB
- Memory: 16 GB DRAM, four-core CPU
- Boot flash: 128 GB
- MAC addresses: 120K
- IPv4/IPv6 unicast routes: 440K / 360K
- IPv4/IPv6 hosts: 192K / 96K
- VLANs: 4K
- ACL entries: 3.5K ingress, 1.5K egress
- EtherChannels: 24, up to 24 ports per EtherChannel
- Power supplies: 2x hot-swappable AC, redundant, 100 to 240 VAC, 50 to 60 Hz
- Power consumption: 626 W typical, 1240 W maximum
- Cooling: 6 hot-swappable fans (5+1 redundant), forward or reverse airflow
- Dimensions (H x W x D): 4.44 x 43.91 x 64.51 cm (1U)
- Weight: 13.6 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95% non-condensing
FAQs
Q: What licensing does this switch need?
A: Cisco NX-OS uses tiered licensing. Layer 2, security, management and monitoring features are available by default, a Base licence covers basic Layer 3, and the Essential Licence (N3K-ES-XF2) enables advanced Layer 3 such as OSPFv2, EIGRP, BGP, IS-IS and VRF-Lite, plus telemetry. Tap and SPAN aggregation requires the Nexus Data Broker licence (NDB-FX-SWT-K9).
Q: Which power supplies and fans does it use?
A: It takes two redundant 1500W AC power supplies, NXA-PAC-1500W-PI for forward airflow or NXA-PAC-1500W-PE for reverse airflow. Fans are NXA-FAN-35CFM-PI (forward) or NXA-FAN-35CFM-PE (reverse). The switch typically draws 626 W and peaks at 1240 W.
Q: What optics and cables work in the QSFP-DD ports?
A: The ports are backward compatible with QSFP56, QSFP28 and QSFP+ modules. AOC and DAC cabling is supported for 10, 25, 40, 50, 100 and 400G speeds.
Q: Can the 400G ports be split into lower speeds?
A: Yes. Breakout modes support 2x200G, 4x100G, 4x50G, 4x25G and 8x50G, giving up to 128 x 100G or 168 x 50G ports.
Q: What does the -OE suffix mean?
A: N3K-C3432D-S-OE is the Open Environment variant of the Nexus 3432D-S, with the same 32x 400G QSFP-DD hardware as the base model.
