Cisco

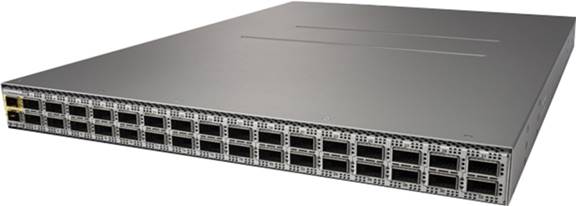

Cisco N3K-C3432D-S | Nexus 3400-S 32-Port 400G QSFP-DD Layer 3 Switch

SKU:N3K-C3432D-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 3400-S is a fixed 1RU data centre switch and the first 400G-capable platform in the Nexus 3000 line. It suits high-density leaf and spine fabrics, massively scalable data centres, big data applications and network analytics deployments, running NX-OS with wire-rate Layer 2 and Layer 3 switching.

This 3432D-S chassis provides 32 fixed 400-Gigabit Ethernet QSFP-DD ports, plus two 100/1000 Mbps SFP ports at the front. It is built on a 12.8-Tbps ASIC with 50G PAM4 SerDes and delivers 25.6 Tbps of switching capacity, a 7.2 Bpps ingress forwarding rate and a 70 MB buffer. Typical power draw is 626 W with a 1240 W maximum, and it takes dual redundant hot-swappable AC power supplies and six hot-swappable fans in a 5+1 arrangement.

The QSFP-DD ports also accept QSFP56, QSFP28 and QSFP+ optics and cables, so a fabric can migrate from 100G to 400G in stages. Breakout options include 2x200G, 4x100G and 8x50G. Power supplies and fan modules are ordered separately as NXA-PAC-1500W-PI or PE and NXA-FAN-35CFM-PI or PE, depending on the airflow direction you need.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-rate Layer 2 and Layer 3 switching on all ports
- 12.8-Tbps ASIC with 50G PAM4 SerDes for low latency and high performance per watt
- Virtual Port Channel (vPC) for Layer 2 multipathing without spanning tree
- ECMP routing for Layer 3 fat-tree designs
- Full Layer 3 routing suite including BGP, OSPF, EIGRP, RIPv2 and IS-IS
- Per-flow monitoring, queue forensics and drop-packet forensics for deep network analytics
- Programmability through NX-API, Linux containers, XML/JSON APIs, Python and EEM
- Power-On Auto Provisioning (POAP) for touchless provisioning
- Hot-swappable power supplies and fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 fixed 400-Gigabit Ethernet QSFP-DD ports (backward compatible with QSFP56, QSFP28, QSFP+)
- Additional ports: 2 x 100/1000 Mbps SFP ports at the front (ports 33 and 34)
- Management ports: One RS-232 serial console port, one RJ45 and one SFP management port, one USB port
- Switching capacity: 25.6 Tbps
- Forwarding rate: 7.2 Bpps ingress / 10 Bpps egress
- CPU and memory: Four-core CPU, 16 GB DRAM
- Buffer size: 70 MB
- Boot flash memory: 128 GB
- MAC addresses: 120K
- IPv4 / IPv6 unicast routes: 440K / 360K
- IPv4 / IPv6 hosts: 192K / 96K
- VLANs: 4K
- ACL entries: 3.5K ingress and 1.5K egress
- Breakout support: 2x200G, 4x100G/50G/25G, 8x50G
- Power supplies: 2 redundant hot-swappable AC units, 100 to 240 VAC, 50 to 60 Hz
- Power consumption: 626 W typical, 1240 W maximum
- Cooling: Six hot-swappable fans (5+1 redundant), forward or reversed airflow
- Dimensions (H x W x D): 4.44 x 43.91 x 64.51 cm (1RU)
- Weight: 13.6 kg
- Operating temperature: 0 to 40 C
- Relative humidity: 5 to 95% non-condensing

FAQs

Q: Does this switch need a licence for Layer 3 routing?
A: It runs Cisco NX-OS. The default system needs no licence for the Layer 2 feature set, and the Base licence covers basic Layer 3 such as static routing, RIPv2, HSRP and VRRP. The optional Essential License (N3K-ES-XF2) adds OSPFv2, EIGRP, BGP, IS-IS, VRF-Lite and telemetry.

Q: What power supplies and fans does the 3432D-S use?
A: It uses two redundant hot-swappable AC power supplies, NXA-PAC-1500W-PI or NXA-PAC-1500W-PE, and fan modules NXA-FAN-35CFM-PI for forward airflow or NXA-FAN-35CFM-PE for reverse airflow. Power supplies and fans are ordered as separate items, so match all of them to the same airflow direction.

Q: Which optics and cables fit the QSFP-DD ports?
A: The ports accept QSFP-DD, QSFP56, QSFP28 and QSFP+ optics and cables, including AOC and DAC options for 10G, 25G, 40G, 50G, 100G and 400G. Check Cisco's transceiver compatibility matrix for the minimum NX-OS release required for each optic.

Q: Can the 400G ports be broken out into lower speeds?
A: Yes. Breakout support includes 2x200G, 4x100G, 4x50G, 4x25G and 8x50G, depending on the optic or breakout cable used.

Q: How does the 3432D-S differ from other Nexus 3400-S models?
A: The 3432D-S is the 32-port 400G QSFP-DD chassis with Layer 3 capability and AC power. It has a fixed 1RU form factor and takes its power supplies and fans as separate modules.
