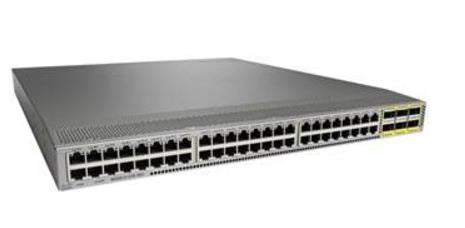

• Cisco N3K-C3172TQ-10GT silver switch with 48x1G/10G ports and 6x40G QSFP+
1 1

Cisco

Cisco N3K-C3172TQ-10GT | Nexus 3100 48-Port 10GBASE-T Switch, 6x 40G QSFP+, Layer 3

N3K-C3172TQ-10GT

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 3172TQ is a high-performance 1RU data center switch delivering Layer 2 and Layer 3 capabilities for top-of-rack deployments. With 48 ports of 10GBASE-T (supporting 100M/1G/10G speeds) and 6 QSFP+ uplinks for 40G connectivity, it offers 1.4 Tbps switching capacity and 1 Bpps forwarding rate. Ideal for cost-effective, power-efficient data center environments requiring line-rate performance and advanced NX-OS features.

Features

Layer 2 and Layer 3 switching with full line-rate performance
- IEEE 802.1Q VLAN encapsulation with up to 4096 VLANs
- Rapid Per-VLAN Spanning Tree Plus (PVST+) support
- Advanced routing protocols: OSPFv2, BGP, RIPv2, static routing
- IP multicast support: IGMPv2/v3, PIM-SM, MSDP, SSM
- VXLAN bridging capable for network virtualization
- Quality of Service (QoS) with priority queuing and traffic shaping
- Comprehensive security: ACLs, port security, DHCP snooping
- Hot-swappable dual redundant power supplies and fan modules
- Flexible airflow options for hot-aisle/cold-aisle deployments
- Network management via CLI, web GUI, SNMP, and system event logs
- NTP, DNS, DHCP helper, and Telnet/SSH support
- Jumbo frame support up to 9216 bytes
- OpenFlow support for software-defined networking (SDN)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10GBASE-T RJ-45 ports (100M/1G/10G capable)
- 6x QSFP+ ports (4x10G or 40G per port)
- Switching capacity: 1.4 Tbps
- Forwarding rate: Up to 1 Bpps (1000 Mpps)
- System memory: 4 GB
- Buffer size: 12 MB shared
- Boot flash memory: 16 GB
- MAC address table: Up to 288,000 entries
- VLAN support: Up to 4096 VLANs
- Maximum MTU: 9216 bytes (jumbo frames)
- Form factor: 1RU rackmount
- Dimensions (H x W x D): 4.4 x 43.9 x 50.5 cm
- Weight: 10 kg
- Power supplies: Dual redundant (AC or DC), hot-swappable
- AC PSU models: NXA-PAC-500W / NX-PAC-500W-B
- DC PSU models: NXA-PDC-500W / NX-PDC-500W-B
- Typical power consumption: 360W
- Maximum power consumption: 440W
- Airflow: Forward (port-side exhaust) and reverse (port-side intake) options
- Fan modules: 4x hot-swappable (NXA-FAN-30CFM-F)
- Management: 1x console port, 1x management port, 1x USB port

FAQs

Q: What is the difference between the N3K-C3172TQ-10GT and N3K-C3172PQ models?
A: The N3K-C3172TQ-10GT features 48x 10GBASE-T copper RJ-45 ports, ideal for connecting servers with copper interfaces. The N3K-C3172PQ features 48x SFP+ fiber ports instead, offering more flexibility for fiber optic connections.

Q: Can the 10GBASE-T ports operate at lower speeds?
A: Yes, all 48 RJ-45 ports are multi-rate and support 100 Mbps, 1 Gigabit, and 10 Gigabit Ethernet speeds, providing backward compatibility with existing infrastructure.

Q: What NX-OS software features are supported on this switch?
A: The switch runs Cisco NX-OS and supports advanced Layer 2 and Layer 3 features including VXLAN bridging, Quality of Service (QoS), comprehensive routing protocols (OSPF, BGP, RIP), and extensive management options via CLI, web interface, and SNMP.

Q: Is this switch suitable for top-of-rack data center deployments?
A: Absolutely. The Nexus 3172TQ is specifically designed as a cost-effective, power-efficient top-of-rack switch for data centers requiring line-rate Layer 2 and 3 performance with 10G server connectivity and 40G uplinks.

Q: What airflow options are available?
A: The switch supports both forward airflow (port-side exhaust) and reverse airflow (port-side intake) configurations with corresponding AC and DC power supply models, allowing flexible deployment in hot-aisle or cold-aisle data center designs.
