Cisco

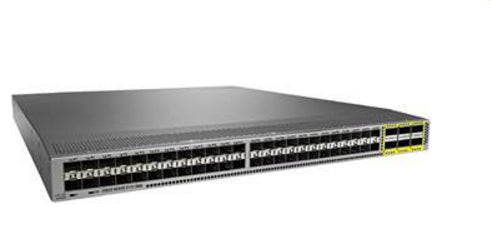

Cisco N3K-C3172PQ-BA-L3 | Nexus 3100 48-Port 10G Switch, Reversed Airflow, L3

SKU:N3K-C3172PQ-BA-L3

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 3172PQ from the Nexus 3100 series is a 1RU fixed Layer 2/3 top-of-rack switch for data centres, high-frequency trading and other low-latency environments. It also suits TAP/SPAN traffic monitoring aggregation when paired with Cisco Nexus Data Broker. It runs NX-OS and is built around a phy-less design for low latency and low power.

The front panel provides 48 SFP+ ports for 1G and 10G (100 Mbps is also supported), plus 6 QSFP+ ports that each run as 40G or 4x 10G. That gives 72 10GbE-capable ports with line-rate Layer 2 and Layer 3 switching, 1.4 Tbps switching capacity and up to 1 bpps forwarding. This SKU is the reversed airflow version with port-side intake, with two hot-swappable AC power supplies and redundant fans. It is supplied as the L3 bundle with the Base and LAN Enterprise licences, covering static routing, RIPv2, OSPFv2, EIGRP stub, HSRP, VRRP and PIM, plus BGP and VRF-lite.

The 48 front ports take SFP and SFP+ optics, and the six uplink ports take QSFP+ optics or 4x 10G breakout. Spare parts for this airflow direction include the NXA-FAN-30CFM-B fan and N2200-PAC-400W-B power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-rate Layer 2 and Layer 3 switching on all 72 10GbE-capable ports
- Virtual port-channel (vPC) for Layer 2 multipathing without Spanning Tree
- 64-way ECMP routing for Layer 3 fat-tree designs
- ISSU and Fast Reboot support
- Hot-swappable power supplies and fans
- Ultra-low latency design for high-frequency trading workloads
- NX-OS with POAP, EEM, Python scripting, Ethanalyzer and PTP (IEEE 1588)
- Full Layer 3 unicast and multicast suites including BGP, OSPF, EIGRP, PIM-SM and MSDP
- Buffer monitoring per port and per queue

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU fixed
- SFP+ ports: 48 x 1/10GbE (100 Mbps also supported)
- QSFP+ ports: 6 x 40GbE or 4x 10GbE each
- Switching capacity: 1.4 Tbps
- Forwarding rate: up to 1 bpps
- Throughput: line rate on all ports, Layer 2 and Layer 3
- MTU: up to 9216 bytes
- MAC addresses: 288,000
- VLANs: 4096
- Spanning-tree instances: RSTP 512, MSTP 64
- ACL entries: 4000 ingress, 1000 egress
- Routing table: 16,000 prefixes and 16,000 host entries, 8000 multicast routes
- EtherChannels: 64 with vPC, 32 ports per EtherChannel
- System memory: 4 GB
- Shared buffer: 12 MB
- Boot flash: 2 GB
- Power supplies: 2 hot-swappable AC, reversed airflow
- AC input: 100 to 240 VAC, 50 to 60 Hz
- Typical power: 143 W
- Maximum power: 293 W
- Airflow: reversed, port-side intake, redundant fans
- Dimensions (H x W x D): 4.4 x 43.9 x 43.2 cm
- Weight: 8.4 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 10 to 85% non-condensing

FAQs

Q: Which licences does this SKU include?
A: The L3 bundle covers the N3K-BAS1K9 Base licence and the N3K-LAN1K9 LAN Enterprise licence. Base adds Layer 2 plus basic Layer 3 such as static routing, RIPv2, OSPFv2, EIGRP stub, HSRP, VRRP and PIM. LAN Enterprise adds BGP and VRF-lite.

Q: What airflow direction does this model use?
A: This SKU is the reversed airflow version, with port-side intake. The matching spare parts are the NXA-FAN-30CFM-B fan and the N2200-PAC-400W-B AC power supply.

Q: How is the switch powered?
A: It uses two hot-swappable AC power supplies rated for 100 to 240 VAC at 50 to 60 Hz. Typical draw is 143 W and maximum is 293 W.

Q: Which optics do the front and uplink ports accept?
A: The 48 front ports accept SFP and SFP+ optics. The 6 uplink ports accept QSFP+ optics for 40G, or 4x 10G breakout.

Q: What is the Nexus Data Broker licence?
A: NDB-FX-SWT-K9 is optional and only needed if you plan to use Cisco Nexus Data Broker for TAP/SPAN traffic aggregation. It is not part of the Base and LAN Enterprise bundle.
