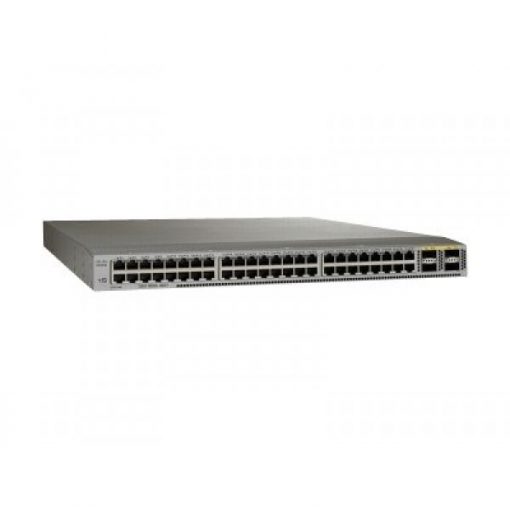

• Cisco N3K-C3064TQ-32T 32-port 10GBASE-T switch with 4x40G QSFP+ uplinks
1 1

Cisco

Cisco N3K-C3064TQ-32T | Nexus 3000 32-Port 10GBASE-T Switch, 4x 40G QSFP+, Layer 3

N3K-C3064TQ-32T

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 3064-32T is a high-performance 1RU data center top-of-rack switch featuring 32 ports of 10GBASE-T copper connectivity and 4 QSFP+ 40G uplinks. Delivering 1.28 Tbps switching capacity and ultra-low latency, this switch provides line-rate Layer 2 and Layer 3 switching powered by Cisco NX-OS. Ideal for organizations requiring cost-effective 10 Gigabit Ethernet deployment over existing copper infrastructure in data center environments.

Features

Line-rate Layer 2 and Layer 3 switching on all ports
- Cisco NX-OS operating system with modular, resilient architecture
- Virtual PortChannel (vPC) for Layer 2 multipathing without Spanning Tree
- 64-way Equal-Cost Multipath (ECMP) routing for Layer 3 designs
- Ultra-low latency optimized for performance-critical workloads
- PowerOn Auto Provisioning (POAP) for touchless deployment
- Advanced buffer monitoring for real-time traffic analysis
- Embedded Event Manager (EEM) and Python scripting for automation
- Precision Time Protocol (PTP / IEEE 1588) support
- Built-in EtherAnalyzer packet analyzer based on Wireshark
- Comprehensive security: ACLs, port security, DHCP snooping, Dynamic ARP Inspection
- Redundant power supply and hot-swappable fan support
- Forward and reverse airflow options for hot/cold aisle containment
- Support for AC and DC power inputs
- VLAN, QoS, and storm control capabilities
- LLDP, LACP, HSRP, VRRP protocol support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

32x 10GBASE-T RJ-45 ports (supports 100M/1G/10G auto-negotiation)
- 4x QSFP+ ports (40G native or 4x 10G breakout mode)
- Switching capacity: 1.28 Tbps
- Forwarding rate: 950 Mpps
- MAC address table: 128,000 entries
- VLAN support: 4,096 VLANs
- Layer 3 routing: OSPF, EIGRP, BGP, RIPv2, PIM-SM, MSDP
- 64-way ECMP routing support
- Form factor: 1RU rack-mountable
- Operating system: Cisco NX-OS
- Management: CLI, NX-API, SNMP, POAP, Python scripting
- Power options: AC and DC with forward/reverse airflow
- Dimensions: 1.7H x 17.3W x 22.5D inches (43.2 x 439 x 572 mm)
- Green compliance: RoHS-5 certified

FAQs

Q: What is the difference between the Nexus 3064-T and 3064-32T?
A: The 3064-T offers 48 ports of 10GBASE-T, while the 3064-32T comes with 32 active 10GBASE-T ports enabled by default. The 3064-32T includes a 32-port license pre-installed and can be expanded to 48 ports with an optional 16-port upgrade license, making it a cost-effective option for deployments requiring fewer ports.

Q: Does this switch support existing copper cabling infrastructure?
A: Yes, the Nexus 3064-32T supports IEEE 802.3an standard 10GBASE-T over unshielded or shielded twisted-pair copper cables up to 100 meters (330 feet). This makes it ideal for organizations migrating from 1G to 10G speeds while reusing existing structured cabling infrastructure.

Q: What routing protocols are supported?
A: The switch supports comprehensive Layer 3 routing including BGP, OSPF, EIGRP, RIPv2 for unicast routing, and PIM-SM, SSM, and MSDP for multicast. It also features 64-way ECMP routing for Layer 3 fat tree designs and high-availability data center architectures.

Q: Can the QSFP+ ports operate at different speeds?
A: Yes, each QSFP+ port can operate in native 40 Gbps mode or be broken out into 4x 10 Gbps ports using appropriate breakout cables, providing flexible uplink connectivity options.

Q: What makes this switch suitable for data center deployments?
A: The Nexus 3064-32T delivers ultra-low latency, high throughput with 1.28 Tbps switching capacity, Virtual PortChannel (vPC) support for Layer 2 multipathing, advanced buffer monitoring, and comprehensive NX-OS features including automation through Python scripting and POAP for touchless provisioning.
