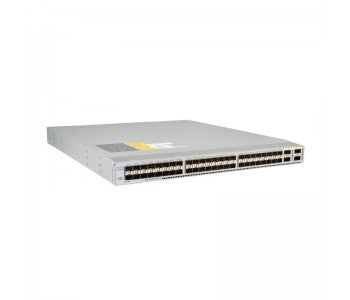

• Cisco N3K-C3064PQ-10GX silver switch with 48x 10GbE SFP+ ports
1 1

Cisco

Cisco N3K-C3064PQ-10GX | Nexus 3000 48-Port 10G SFP+ Switch, 4x 40G QSFP+, Low Latency

N3K-C3064PQ-10GX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N3K-C3064PQ-10GX Nexus 3064-X is a high-performance 1RU data center switch designed for ultra-low latency applications such as high-frequency trading and top-of-rack deployments. It delivers 1.28 Tbps switching capacity and 950 Mpps forwarding rate with 48x 10G SFP+ ports and 4x QSFP+ uplinks supporting 40G or 4x10G breakout. Running Cisco NX-OS, it provides line-rate Layer 2 and Layer 3 switching with enhanced scale, comprehensive routing protocols, and flexible airflow options for power-efficient data center operations.

Features

Line-rate Layer 2 and Layer 3 switching on all ports
- Ultra-low latency PHY-less design optimized for data centers
- Full Layer 3 unicast and multicast routing (BGP, OSPF, EIGRP, RIPv2, PIM-SM, SSM, MSDP)
- Virtual PortChannel (vPC) for Layer 2 multipathing and high availability
- 64 EtherChannels with up to 32 ports per channel
- IEEE 802.1Q VLAN support (4,096 VLANs)
- Rapid Spanning Tree (RSTP) 512 instances, MST 64 instances
- Access Control Lists: 2,000 ingress, 1,000 egress entries
- Cisco NX-OS operating system with comprehensive management
- Power On Auto Provisioning (POAP) for zero-touch deployment
- Precision Time Protocol (PTP) for clock synchronization
- Network traffic monitoring with Cisco Nexus Data Broker capability
- SPAN and ERSPAN for traffic analysis
- SSH and SSL encryption for secure management
- Redundant hot-swappable fans and power supplies
- Flexible forward and reverse airflow cooling schemes
- Energy-efficient design with low power consumption

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10G SFP+ ports (support 100M/1G/10G speeds)
- 4x QSFP+ ports (support 40G or 4x10G breakout mode)
- Switching capacity: 1.28 Tbps
- Forwarding rate: 950 Mpps
- 1RU fixed form factor
- 128,000 MAC address entries
- 4,096 VLANs supported
- Routing table: 16,000 prefixes and host entries
- 9 MB shared packet buffer
- 2 GB boot flash memory
- Redundant power supplies (2x 400W AC or DC)
- Typical power consumption: 143W (Twinax), 177W (SR optics)
- Maximum power: 199W
- Dimensions (H x W x D): 1.72 x 17.3 x 19.7 in (4.4 x 43.9 x 50.5 cm)
- Weight: 20.5 lb (9.3 kg)
- Jumbo frame support up to 9,216 bytes
- Management: CLI, web GUI, SNMP, POAP, Cisco DCNM
- Forward and reverse airflow options
- AC (100-240V 50-60Hz) and DC power inputs

FAQs

Q: What deployment scenarios is the N3K-C3064PQ-10GX best suited for?
A: This switch is optimized for data center top-of-rack deployments requiring ultra-low latency, such as high-frequency trading environments, big data applications, and performance-critical workloads. It provides line-rate Layer 2 and Layer 3 switching with comprehensive routing protocols in a power-efficient 1RU design.

Q: Can the QSFP+ ports operate in breakout mode?
A: Yes, each of the 4x QSFP+ ports can operate in native 40 Gigabit Ethernet mode or can be configured in 4x10 Gigabit Ethernet breakout mode using appropriate breakout cables, providing flexible uplink and connectivity options.

Q: What licensing is required for the N3K-C3064PQ-10GX?
A: The switch requires a Cisco Nexus 3000 Base License (N3K-BAS1K9) for basic Layer 3 functionality. For advanced routing features including full unicast and multicast routing protocols like BGP, OSPF, and EIGRP, the LAN Enterprise License (N3K-LAN1K9) is required.

Q: Does this switch support stacking or virtualization?
A: The N3K-C3064PQ-10GX supports Cisco vPC (virtual PortChannel) for creating Layer 2 multipathing by allowing links connected to two separate switches to appear as a single PortChannel to a third device, providing high availability without traditional stacking.

Q: What airflow and power supply options are available?
A: The switch supports both forward airflow (port-side exhaust) and reverse airflow (port-side intake) configurations with redundant hot-swappable power supplies. Power options include 400W AC (100-240V) and DC inputs, with models designated by -B suffix for reverse airflow variants.
