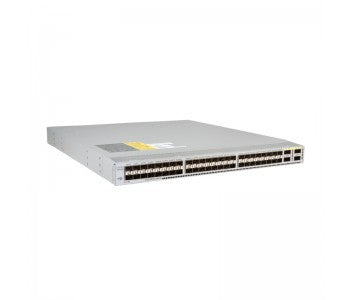

• Cisco N3K-C3064-X-FD-L3 silver switch with black ports and white label
1 1

Cisco

Cisco N3K-C3064-X-FD-L3 | Nexus 3000 48-Port 10G SFP+ Switch, 4x 40G QSFP+, Layer 3

N3K-C3064-X-FD-L3

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 3064-X is a high-performance data center switch designed for top-of-rack deployments requiring ultra-low latency and line-rate Layer 2 and Layer 3 switching. With 48 SFP+ ports supporting 1/10 Gigabit speeds and four QSFP+ ports delivering 40 Gigabit or 4x10 Gigabit connectivity, this 1RU switch delivers 1.28 Tbps switching capacity and 950 Mpps forwarding rate. The N3K-C3064-X-FD-L3 bundle includes forward airflow, DC power supplies, and LAN Enterprise license for advanced routing protocols, making it ideal for high-frequency trading, cloud infrastructure, and enterprise data centers.

Features

Ultra-low latency PHY-less design optimized for high-frequency trading and real-time applications
- Line-rate Layer 2 and Layer 3 switching at 1.28 Tbps capacity
- Virtual PortChannel (vPC) for Layer 2 multipathing and elimination of Spanning Tree Protocol
- Full Layer 3 routing: BGP, OSPF, EIGRP, RIPv2, PIM-SM, SSM, MSDP
- Advanced Quality of Service (QoS) and traffic management
- Comprehensive security: ACLs (IP/MAC/VLAN), port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- PowerOn Auto Provisioning (POAP) for touchless deployment and configuration
- Cisco Embedded Event Manager (EEM) and Python scripting for automation
- Real-time buffer monitoring per port and per queue
- Storm control and control plane policing for network stability
- SNMP v1/v2c/v3, Syslog, RMON, and NetFlow support
- Hot-swappable redundant power supplies and fan tray
- Support for SFP+ direct-attach copper (Twinax) and optical transceivers
- Jumbo frame support up to 9216 bytes MTU
- Management via CLI, web GUI, Cisco DCNM, and SSH

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10 Gigabit Ethernet SFP+ ports (support 100 Mbps, 1 Gbps, and 10 Gbps)
- 4x 40 Gigabit Ethernet QSFP+ ports (native 40G or 4x10G mode per port)
- Switching capacity: 1.28 Tbps
- Forwarding rate: 950 million packets per second (Mpps)
- Line-rate Layer 2 and Layer 3 switching on all ports
- Form factor: 1RU rack-mountable
- Dimensions (H x W x D): 1.72 x 17.3 x 19.7 inches (4.4 x 43.9 x 50.5 cm)
- Power consumption: 143W (Twinax) to 177W (SR optics) typical at full load
- Airflow: Forward airflow (port-side exhaust)
- Power: Dual redundant DC power supplies
- Operating system: Cisco NX-OS
- License: LAN Enterprise (L3 routing features)
- Management: CLI, NX-OS, DCNM, SNMP v1/v2c/v3, Syslog, RMON
- MTU: Up to 9216 bytes (jumbo frames)
- Weight: Approximately 20.5 lbs

FAQs

Q: What is included in the N3K-C3064-X-FD-L3 bundle?
A: This SKU includes the Cisco Nexus 3064-X hardware with forward airflow (port-side exhaust), dual DC power supplies, Base NX-OS license, and LAN Enterprise license for advanced Layer 3 routing capabilities.

Q: What routing protocols are supported with the LAN Enterprise license?
A: The LAN Enterprise license enables full Layer 3 unicast and multicast routing protocols including BGP, OSPF, EIGRP, RIPv2, PIM-SM, SSM, and MSDP, along with advanced features like policy-based routing and virtual PortChannel.

Q: Can the QSFP+ ports operate in different modes?
A: Yes, each of the four QSFP+ ports can operate in native 40 Gigabit Ethernet mode or be broken out into 4x10 Gigabit Ethernet ports using splitter cables, providing flexible uplink and connectivity options.

Q: What deployment scenarios is this switch designed for?
A: The Nexus 3064-X is optimized for data center top-of-rack deployments, high-frequency trading environments requiring ultra-low latency, cloud infrastructure, and big data applications where line-rate Layer 3 performance is critical.

Q: Does this switch support stacking or modular expansion?
A: The Nexus 3064-X is a fixed-configuration switch and does not support traditional stacking. However, it supports Virtual PortChannel (vPC) technology for Layer 2 multipathing and high availability without Spanning Tree Protocol limitations.
