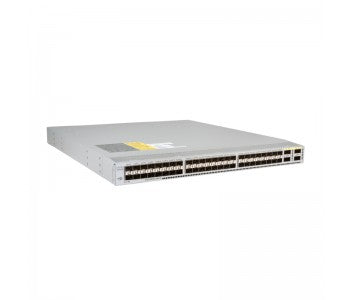

• Cisco N3K-C3064-X-FA-L3 switch with silver chassis and black ports
1 1

Cisco

Cisco N3K-C3064-X-FA-L3 | Nexus 3000 48-Port 10G SFP+ Switch, 4x 40G QSFP+, Layer 3

N3K-C3064-X-FA-L3

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 3064-X is a high-performance 1RU data center switch delivering ultra-low latency and line-rate Layer 2/3 switching. With 48x 10G SFP+ ports and 4x 40G QSFP+ uplinks, it provides 1.28 Tbps switching capacity and 950 Mpps forwarding rate. Designed for data center ToR deployments, high-frequency trading, and cloud environments, this switch features forward airflow configuration, dual AC power supplies, and includes Base and LAN Enterprise licenses for comprehensive routing capabilities including BGP, OSPF, EIGRP, and advanced multicast.

Features

Line-rate Layer 2 and Layer 3 switching on all ports
- Virtual PortChannel (vPC) for Layer 2 multipathing without Spanning Tree
- IEEE 802.1Q VLAN tagging with 4096 VLAN support
- Multiple Spanning Tree Protocol (MSTP), Rapid PVST+
- Comprehensive ACLs (IP, MAC, VLAN-based)
- Quality of Service (QoS) with 8 egress queues, WRED, traffic shaping
- Jumbo frame support up to 9216 bytes
- Port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Storm control for broadcast, multicast, and unicast traffic
- Link aggregation with LACP support
- IPv4 and IPv6 routing with BGP, OSPF, EIGRP, RIPv2
- Multicast routing: PIM-SM, PIM-SSM, IGMP v1/v2/v3, MSDP
- VRF-lite for traffic segmentation
- Hot-swappable redundant power supplies and fan tray
- Cisco NX-OS with proven data center reliability and programmability
- SPAN and RSPAN for traffic monitoring
- Cisco Nexus Data Broker support for tap aggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10 Gigabit Ethernet SFP+ ports (1GbE/10GbE capable)
- 4x 40 Gigabit Ethernet QSFP+ ports (supports 4x10G breakout or 40G)
- Switching capacity: 1.28 Tbps
- Forwarding rate: 950 Mpps
- Form factor: 1RU rack-mountable
- MAC address table: 128,000 entries
- VLANs supported: 4,096
- Latency: Ultra-low (PHY-less architecture)
- Airflow: Forward airflow (port-side exhaust)
- Power supply: Dual redundant AC power supplies
- Dimensions (H x W x D): 1.72 x 17.3 x 19.7 inches (43.7 x 439.4 x 500.4 mm)
- Weight: 20.5 lbs (9.3 kg)
- Operating system: Cisco NX-OS
- Management: CLI, SNMP v1/v2/v3, Syslog, RMON, Telnet, GUI, Cisco DCNM
- Included licenses: Base License (N3K-ABS1K9) and LAN Enterprise License (N3K-LAN1K9)

FAQs

Q: What routing protocols are supported with the LAN Enterprise license?
A: The LAN Enterprise license includes full Layer 3 routing capabilities: BGP, OSPF, EIGRP, RIPv2, static routing, inter-VLAN routing, VRF-lite, and advanced multicast protocols including PIM-SM, SSM, and MSDP. This enables comprehensive data center routing without additional license purchases.

Q: Can the QSFP+ ports be used for 10G connectivity?
A: Yes, each QSFP+ port supports 4x 10 Gigabit Ethernet breakout using QSFP-to-4xSFP+ splitter cables, or 40 Gigabit Ethernet using standard QSFP+ transceivers or DAC cables. This provides flexible uplink options for connecting to aggregation or core switches.

Q: What makes this switch suitable for high-frequency trading environments?
A: The Nexus 3064-X features ultra-low latency through its PHY-less architecture, line-rate performance on all ports, and deterministic forwarding. Combined with support for precision time protocol and advanced QoS, it meets the demanding requirements of financial trading applications.

Q: Is this switch compatible with existing 1 Gigabit Ethernet infrastructure?
A: Yes, all 48 SFP+ ports support both 1 Gigabit and 10 Gigabit Ethernet operation, allowing smooth migration from legacy infrastructure. The ports auto-negotiate speed and work with standard Cisco SFP and SFP+ transceivers.

Q: What is the difference between forward and reverse airflow models?
A: The FA model features forward airflow with port-side exhaust (air enters through the fan tray and exits through the ports), suitable for hot-aisle/cold-aisle configurations where the switch front faces the cold aisle. The BA model has reverse airflow for opposite deployment scenarios.
