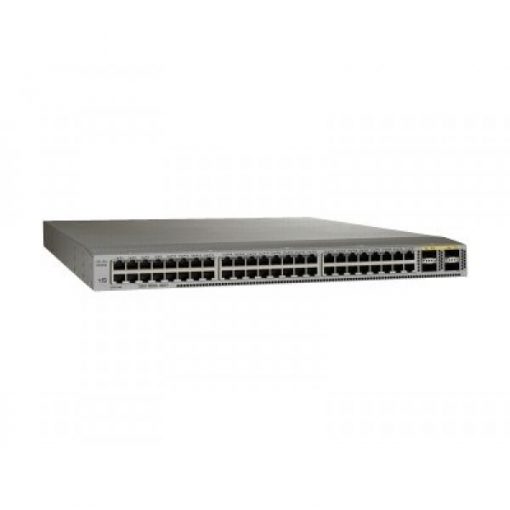

• Cisco N3K-C3064-T-FA-L3 48-port 10G Ethernet switch
1 1

Cisco

Cisco N3K-C3064-T-FA-L3 | Nexus 3000 48-Port 10GBASE-T Switch, 4x 40G QSFP+, Layer 3

N3K-C3064-T-FA-L3

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Nexus 3064-T is a high-performance 1RU data center switch delivering ultra-low latency and line-rate Layer 2 and Layer 3 switching for top-of-rack deployments. With 48 10GBASE-T ports supporting auto-negotiation at 1G and 10G, plus 4 QSFP+ uplinks for 40G or 4x10G breakout connectivity, this switch is ideal for latency-sensitive workloads including high-frequency trading, virtualization, and high-performance computing. The LAN Enterprise license bundle enables advanced routing protocols such as OSPF, BGP, and EIGRP, making it a robust solution for demanding enterprise and financial data center environments.

Features

Line-rate Layer 2 and Layer 3 switching on all ports
- Virtual PortChannel (vPC) for Layer 2 multipathing and redundancy
- VLAN support with Private VLAN, spanning tree (STP, RSTP, MST), and loop prevention
- Advanced security: ACLs (IP, MAC, VLAN), Control Plane Policing (CoPP), DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Quality of Service (QoS) with granular traffic classification and priority queuing
- Real-time advanced buffer monitoring per port and per queue
- Embedded Event Manager (EEM) and Python scripting for automation
- PowerOn Auto Provisioning (POAP) for zero-touch deployment
- Support for GRE tunneling and gateway redundancy protocols (HSRP, VRRP)
- Cisco Nexus Data Broker support for traffic monitoring and SPAN aggregation
- IGMP, PIM-SM for multicast traffic management
- Comprehensive network monitoring: SNMP, Netflow, RMON, Syslog, NTP
- Flexible airflow options: forward and reverse airflow for hot/cold aisle deployment
- Energy-efficient design optimized for low power consumption and ultra-low latency
- Hot-swappable redundant power supplies and fan trays for high availability
- Cisco NX-OS operating system with proven data center innovations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10GBASE-T RJ-45 ports with auto-negotiation at 100M, 1G, and 10G
- 4x QSFP+ ports supporting 40G or 4x10G breakout
- Switching capacity: 1.28 Tbps
- Forwarding rate: 950 Mpps
- Ultra-low latency: 3.2 microseconds
- Layer 3 features: OSPF, BGP, EIGRP, RIPv2, PIM-SM, SSM, MSDP
- Memory: 8 GB RAM, 2 GB Flash
- MAC address table: 128,000 entries
- Jumbo frame support: up to 9216 bytes MTU
- Redundant hot-swappable power supplies and fan tray
- Management: CLI, SNMP v1/v2/v3, Telnet, SSH, POAP, Python scripting
- Dimensions: 1.72 x 17.3 x 22.45 in (1RU)
- Power: AC or DC input (redundant PSU supported)
- Airflow: Forward airflow (port-side exhaust)
- Operating system: Cisco NX-OS
- LAN Enterprise license included for advanced L3 routing

FAQs

Q: What is the difference between the Nexus 3064-X and 3064-T?
A: The Nexus 3064-X uses 48 SFP+ ports for fiber connectivity, while the 3064-T features 48 10GBASE-T RJ-45 copper ports. Both models include 4 QSFP+ uplinks and share the same switching capacity and NX-OS features.

Q: Does the N3K-C3064-T-FA-L3 support Power over Ethernet?
A: No, the Nexus 3064-T does not support PoE. It is a data center top-of-rack switch designed for high-speed server connectivity, not for powering endpoints like IP phones or access points.

Q: What routing protocols are supported with the LAN Enterprise license?
A: The LAN Enterprise license enables full Layer 3 routing including OSPF, BGP, EIGRP, RIPv2, static routing, policy-based routing (PBR), and multicast protocols such as PIM-SM, SSM, and MSDP.

Q: Can the QSFP+ ports be used for 10G connectivity?
A: Yes, each QSFP+ port can support either a single 40G connection or be broken out into 4x 10G connections using QSFP-to-4xSFP+ breakout cables, providing flexible uplink options.

Q: What is the typical use case for the Nexus 3064-T?
A: The Nexus 3064-T is ideal for data center top-of-rack deployments requiring ultra-low latency and high-density 10G server connectivity, especially in financial trading, HPC, virtualized environments, and cloud infrastructure.
