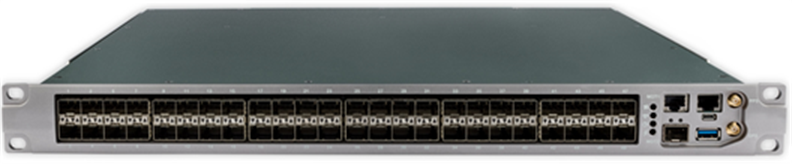

Cisco N35-T-48X | Nexus 3550-T 48-Port 25G SFP28 Switch, FPGA VU35P, 1RU

SKU:N35-T-48X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 3550-T is a fixed 1RU top-of-rack programmable switch and application platform built around a Xilinx Virtex UltraScale+ VU35P FPGA. It is aimed at ultra-low-latency environments such as electronic and high-frequency trading, and at teams building custom FPGA-based network applications including exchange gateways, data brokers, tap aggregation and grandmaster clocks.

This N35-T-48X model provides 48 SFP28 ports, each directly connected to the FPGA, which is the -3 speed grade part with 8GB of High Bandwidth Memory. The SFP28 ports are backward compatible with SFP+ and SFP, and support 25GbE, 10GbE and 1GbE data rates. An x86 Intel Atom management CPU with 8 cores at up to 1.7 GHz handles management, with an RJ45 management port, RJ45 serial console, Micro USB and USB for firmware upgrades. Timing I/O includes SMA connections for PPS in and out and GPS in, with PPS, GPS, PTP and NTP time synchronisation.

The chassis has dual hot-swappable AC power supplies (DC optional at 40-72 V) and dual hot-swappable fan modules, with a maximum power consumption of 150 W. Supported optics are SFP+ fibre (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX) and SFP+ direct attach copper.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dynamically reconfigurable FPGA platform with ultra-low-latency design
- Nexus Firmware Development Kit (FDK) for building custom FPGA-based applications
- Packet-aware statistics at no latency cost on the critical path, including SFP diagnostics such as light levels and temperatures
- Supported applications: ULL Layer 2 switching, ULL Layer 3 routing, packet filtering and NAT security, and custom FDK applications
- JSON RPC API for every CLI command, for operation at scale
- Onboard BASH, Python and cron with time-series logging
- Management via CLI over serial, SSH and telnet, with DHCP auto-configuration, TACACS+ and ACLs on the management interface
- Firmware updates via SFTP, TFTP, HTTP and USB

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 19-inch 1RU, rack mount
- Ports: 48 x SFP28 (backward compatible with SFP+ and SFP)
- Data rates: 25GbE, 10GbE, 1GbE
- Supported optics: SFP+ fibre (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX) and SFP+ copper direct attach
- FPGA: Xilinx Virtex UltraScale+ VU35P, -3 speed grade, all 48 ports directly connected
- FPGA memory: 8GB High Bandwidth Memory (HBM)
- Management CPU: x86 Intel Atom, 8 cores, up to 1.7 GHz
- Timing I/O: SMA for PPS in/out (3.3V, 50 Ohm) and SMA for GPS in
- Management ports: RJ45 management, RJ45 serial console (default 115200 N81), Micro USB, USB for firmware upgrades
- Time synchronisation: PPS, GPS, PTP, NTP
- Weight: 10 kg (22 lbs)
- Power supplies: dual, hot-swappable
- AC input: 90-264 V, 47-64 Hz, IEC C13-C14
- DC input (optional): 40-72 V
- Maximum power consumption: 150 W
- Cooling: dual hot-swappable fan modules, port-side intake or exhaust airflow options
- Operating temperature: -5 to 45 C
- Storage temperature: -40 to 70 C
- Operating relative humidity: 5% to 90% (non-condensing)
- Storage relative humidity: 5% to 95% (non-condensing)

FAQs

Q: Does the Nexus 3550-T need a licence or subscription?
A: The datasheet does not specify a licence or subscription requirement. Network applications are delivered through firmware and software releases, so check the Nexus 3550 release notes for the application set you plan to run.

Q: What power options does the N35-T-48X support?
A: It has dual hot-swappable power supplies. Standard AC input is 90-264 V, 47-64 Hz with IEC C13-C14 cables, and DC input of 40-72 V is optional. Maximum power consumption is 150 W.

Q: Which optics and speeds work with the SFP28 ports?
A: The SFP28 ports are backward compatible with SFP+ and SFP. Supported optics are SFP+ fibre (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX) and SFP+ copper direct attach.

Q: Which spare fan modules and power supplies suit this switch?
A: The spares list covers N35-T-FAN-PI and N35-T-FAN-PE fan modules, and N35-T-PAC-PI and N35-T-PAC-PE 400W AC power supplies, for port-side intake and exhaust airflow respectively.

Q: How can I program the Nexus 3550-T?
A: You can build custom FPGA applications with the Nexus Firmware Development Kit (FDK). Day-to-day management is available through the CLI, a JSON RPC API covering every CLI command, and onboard Python and BASH.
