Cisco

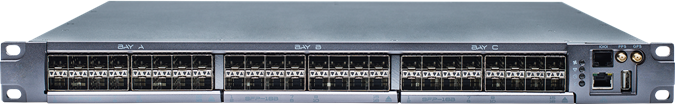

Cisco N35-FHPT-48X | Nexus 3550-F 48-Port 10G SFP+ Switch, 70ps HPT

SKU:N35-FHPT-48X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 3550-F is a 1RU network tapping, aggregation and monitoring switch for low-latency environments such as financial trading, performance analytics, regulatory packet capture and time-sensitive capture deployments. This High Precision Timestamping (HPT) model embeds 70-picosecond timestamps in every packet and synchronises to PPS, GPS and PTP sources.

It provides 48 x 10GbE SFP+ ports across three 16-port line cards, with up to 40 ingress ports at 1, 10 or 40Gb/s for 400Gb/s of total ingress. One to eight egress ports at 10Gb/s each deliver up to 80Gb/s of egress with IEEE 802.3x flow control. A 32GB shared deep packet buffer, backed by 32kB per-port and 64kB per-quad-port buffers, protects against micro-bursts. A single unit can replace up to 20 optical taps, adding less than 5ns to the tapped path.

The unit has dual hot-swappable power supplies and fan modules and a maximum power consumption of 150W. The 48 SFP+ ports are MSA compliant, and the family also offers a 4-port QSFP line card (N35-F-X4Q) for 40G connectivity.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 70ps high-precision timestamps embedded in every packet
- Synchronisation to PPS, GPS and PTP sources, plus PTP and NTP support via the management port
- Transparent tapping that replaces up to 20 optical taps in a single 1RU device
- IEEE 802.3x flow control on egress ports for lossless transmission when capture devices are congested
- Deep multilayer packet buffer hierarchy for micro-burst protection
- VLAN tagging of mirror output according to ingress port
- DHCP auto-configuration, SNMP, TACACS+, onboard Python and BASH shell access
- Per-port SFP diagnostics, live packet dump and time-series logging

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10GbE SFP+ (3 x 16-port SFP+ line cards, MSA compliant)
- Ingress capacity: 400Gb/s (1GbE / 10GbE / 40GbE)
- Ingress ports: up to 40 ports at 1Gb/s, 10Gb/s or 40Gb/s
- Egress: 1 to 8 x 10Gb/s ports, up to 80Gb/s, with IEEE 802.3x flow control
- Timestamp resolution: 70ps High-Precision Timestamping (HPT)
- Global buffer: 32GB deep shared buffer
- Port buffer: 32kB per port
- Quad-port buffer: 64kB per quad port
- Time synchronisation: PPS, GPS, PTP and NTP
- GPS receiver: 72 channel GPS, GLONASS, QZSS, BeiDou
- GPS cold-start timesync acquisition: under 30s
- Tap delay: less than 5ns added to the tapped path
- Form factor: 19" 1RU, rack mount
- Weight: 11kg (24lbs)
- Power supplies: dual, hot-swappable
- Input power: AC 100-240 Vac, 50-60 Hz (optional DC 48-60 Vdc)
- Maximum power consumption: 150W
- Fans: dual hot-swappable fan modules
- Airflow: optional direction (FTB, BTF)
- Operating temperature: -5 to 45 C
- Storage temperature: -40 to 70 C
- Operating relative humidity: 5% to 90% (non-condensing)
- Management ports: 1x RS232 serial, 1x 10/100M Ethernet, 1x PPS timing port, USB

FAQs

Q: Does the Nexus 3550-F need a licence or subscription?
A: No licence or subscription requirement applies to this model.

Q: What power does it use and does it support PoE?
A: It has dual hot-swappable power supplies taking AC 100-240 Vac at 50-60 Hz as standard, with optional DC 48-60 Vdc. Maximum consumption is 150W. The switch does not provide PoE.

Q: Which timing sources can it synchronise to?
A: It synchronises to PPS, GPS and PTP sources, and also supports NTP, to keep its 70ps timestamps accurate.

Q: What optics do the SFP+ ports accept?
A: The 48 SFP+ ports are MSA compliant. The family also offers a 4-port QSFP line card (N35-F-X4Q) for 40G connectivity.

Q: Is the airflow direction selectable?
A: The platform offers port-side intake and exhaust options (FTB, BTF), so check the airflow direction you need against the installed fan modules.
